Basic Specifications
Housing Material
Aluminum
Cooling Methods
Passive Cooling or Water Cooling
Product Advantages
💡Customizable LED Spectrum
The optimal full spectrum provides plants at Veg and Flower stages with everything they desire from natural sunlight.

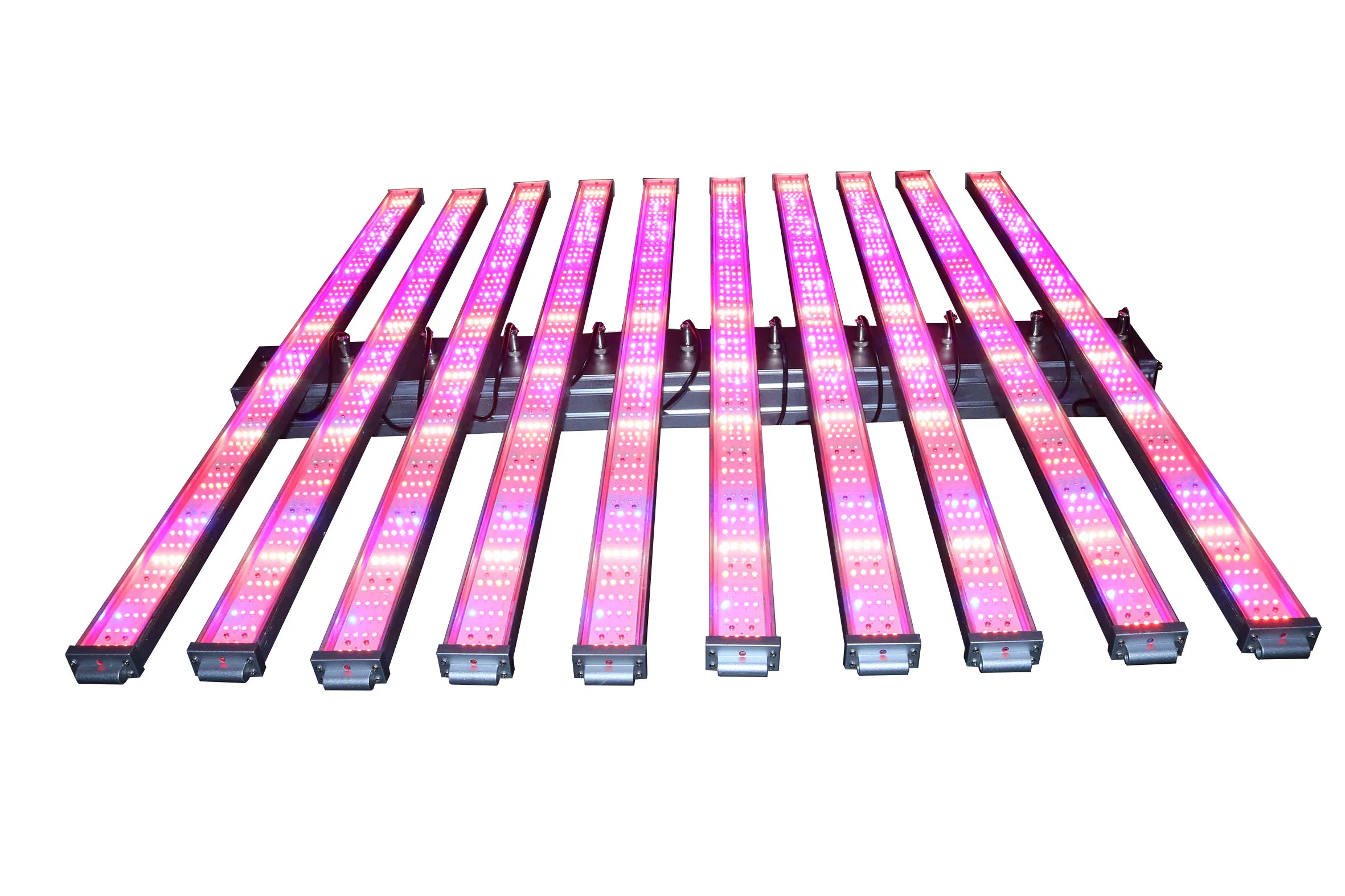

🌈Full Spectrum Design
Includes universal Blue, Red, IR, UV, and white light. Expensive IR UV LEDs promote defense mechanisms, while blue and red LEDs are essential for growth.

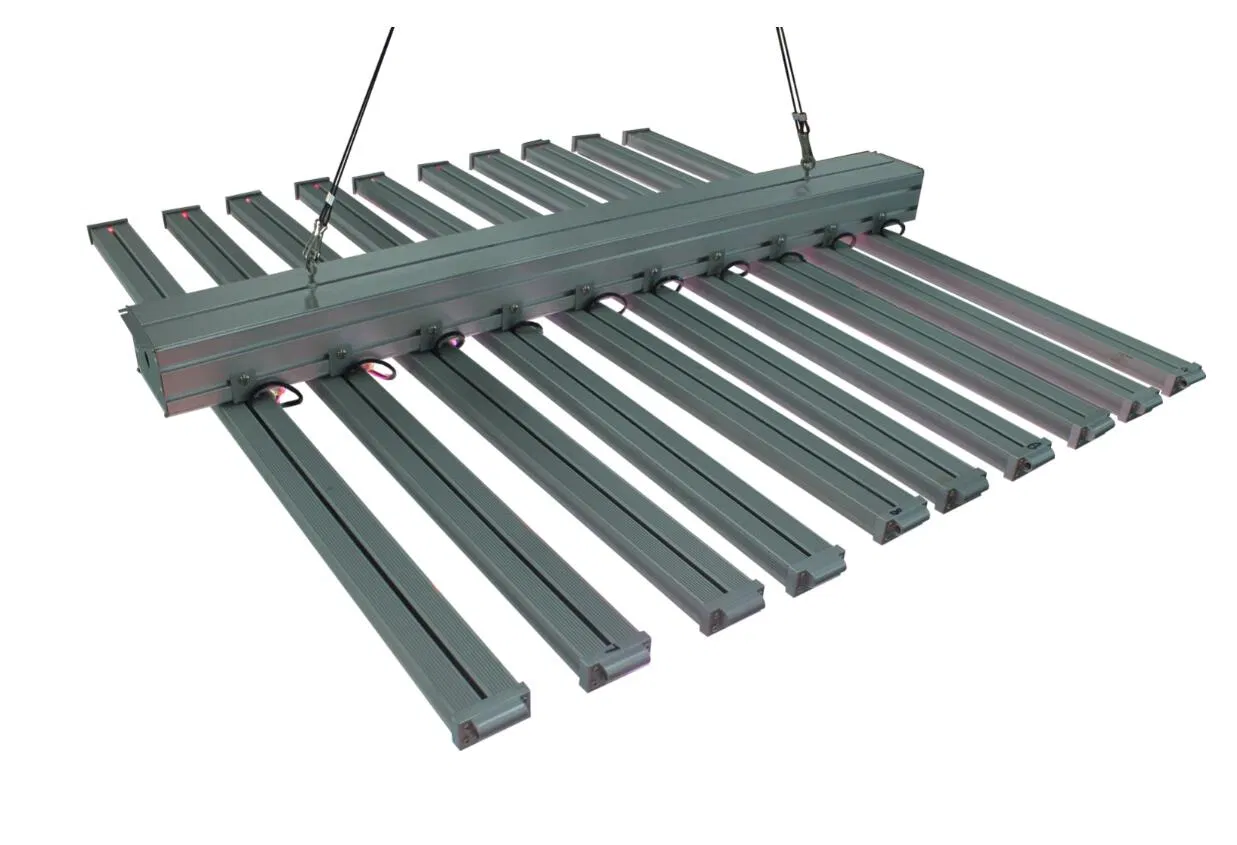

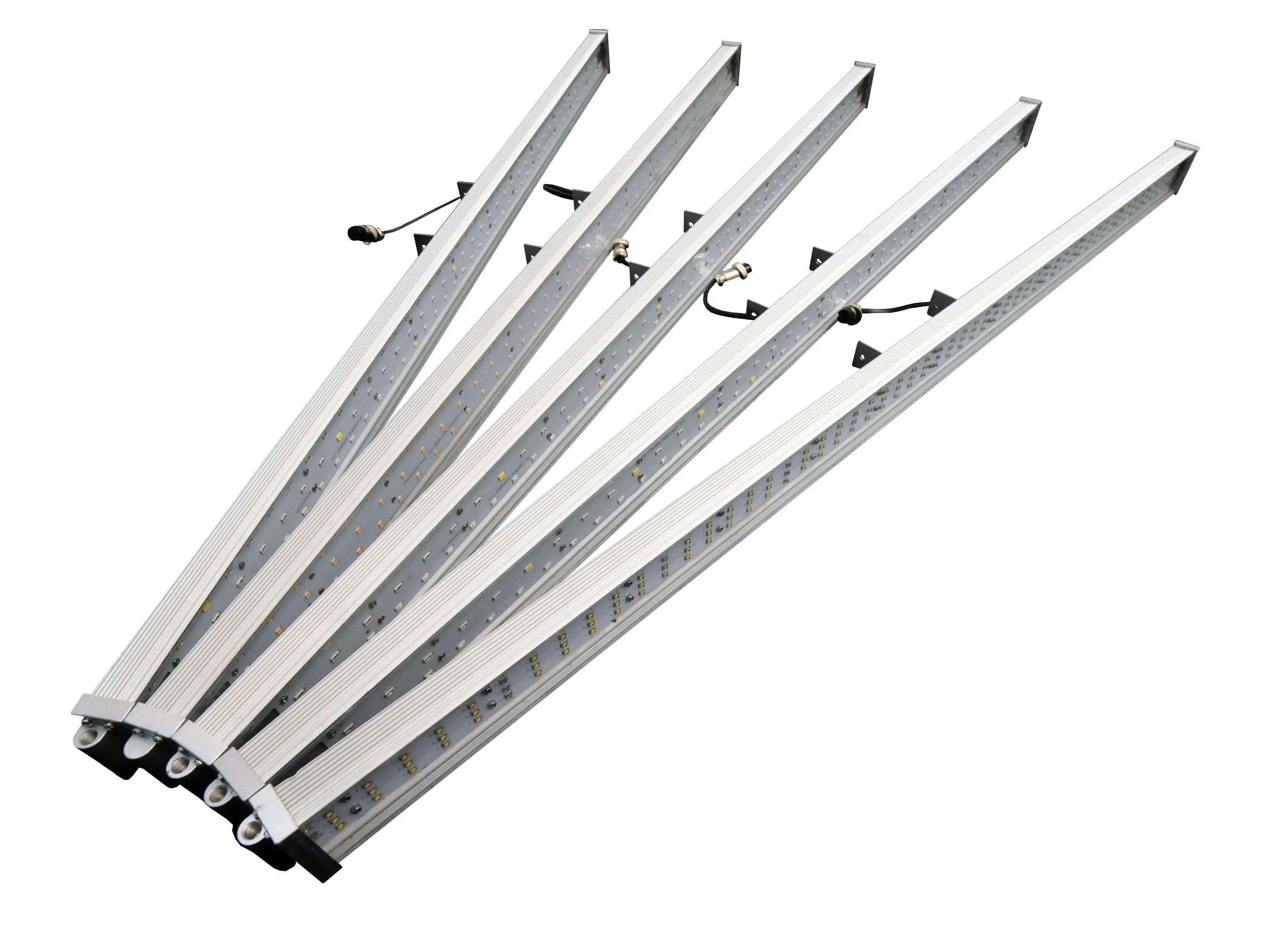

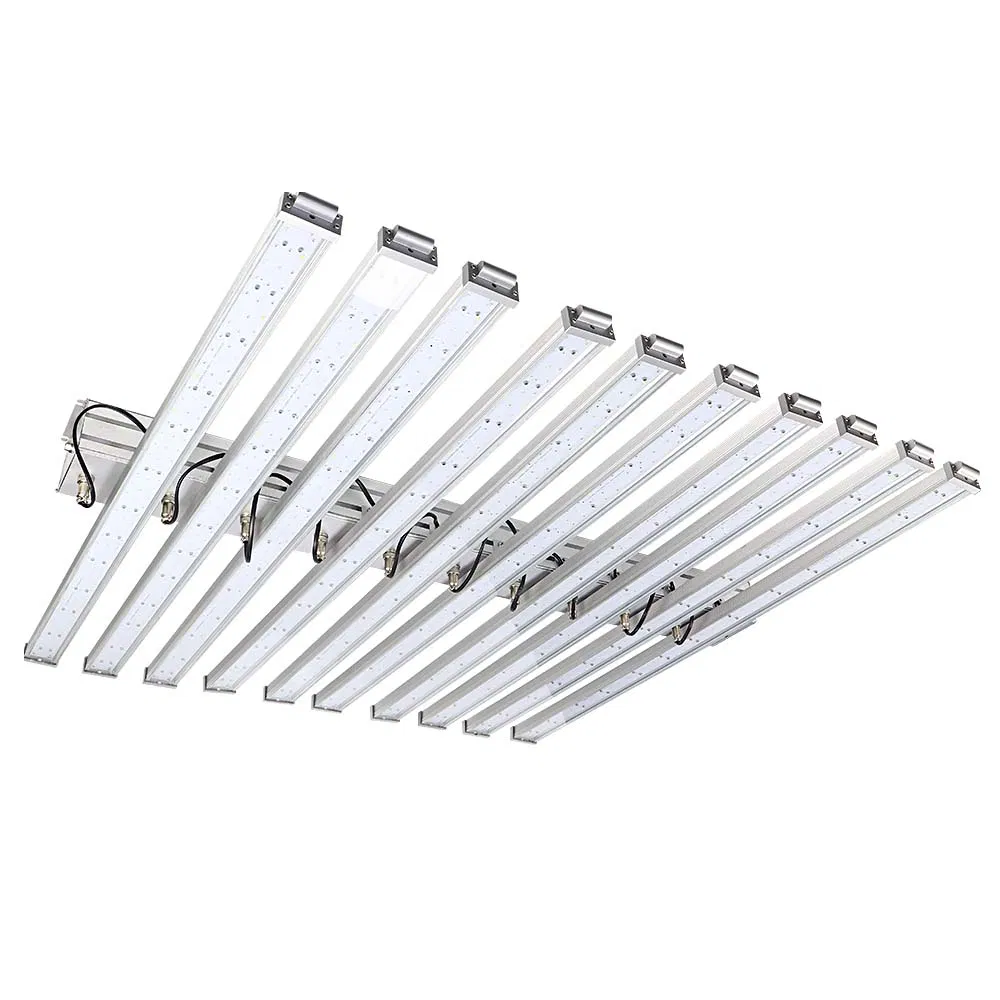

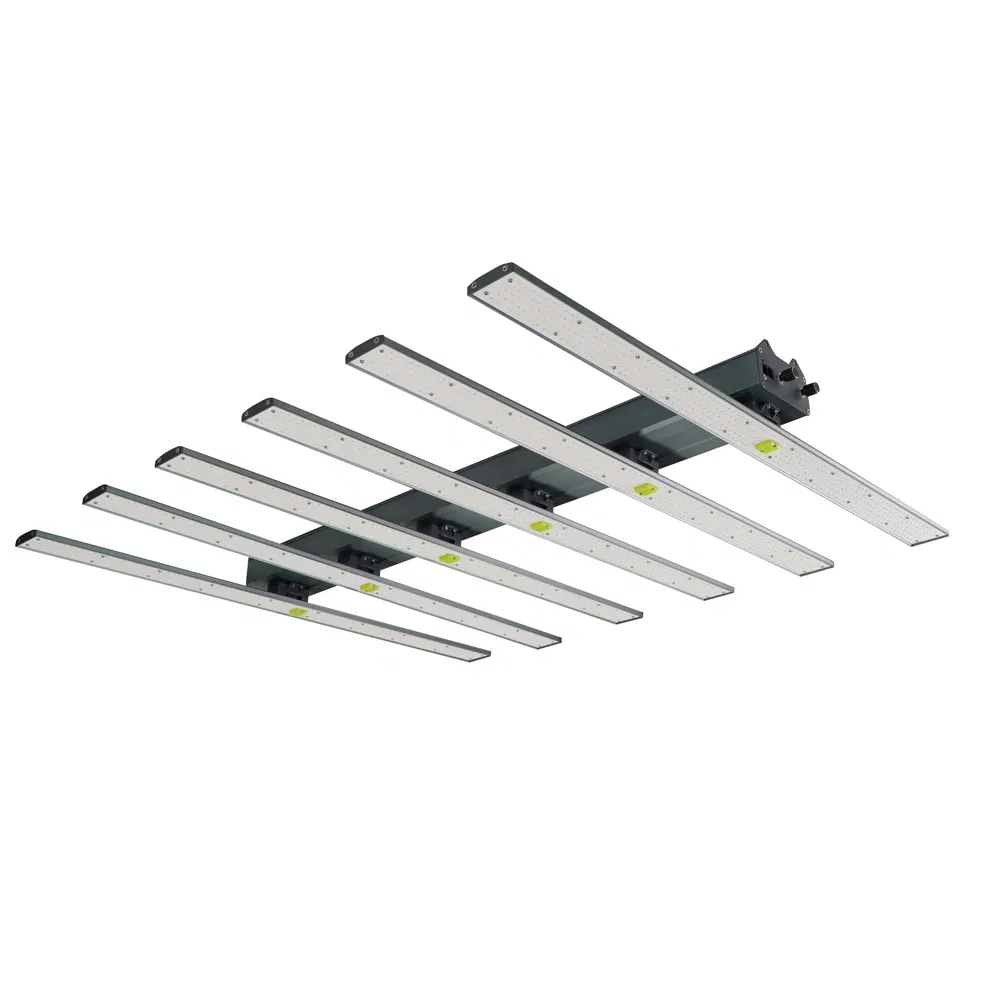

⚙️Adjustable Bar System
Adjustable distance between LED bars for different lighting intensity and direction. Aluminum structure ensures excellent heat dissipation and thermal management.
🔍Optical Lens Modular
Convenient to assemble and install, providing focused and efficient light distribution.
⚡High Efficiency
More effective coverage area than reflector series. Perfect for growing areas at 1m height covering 6 square meters.

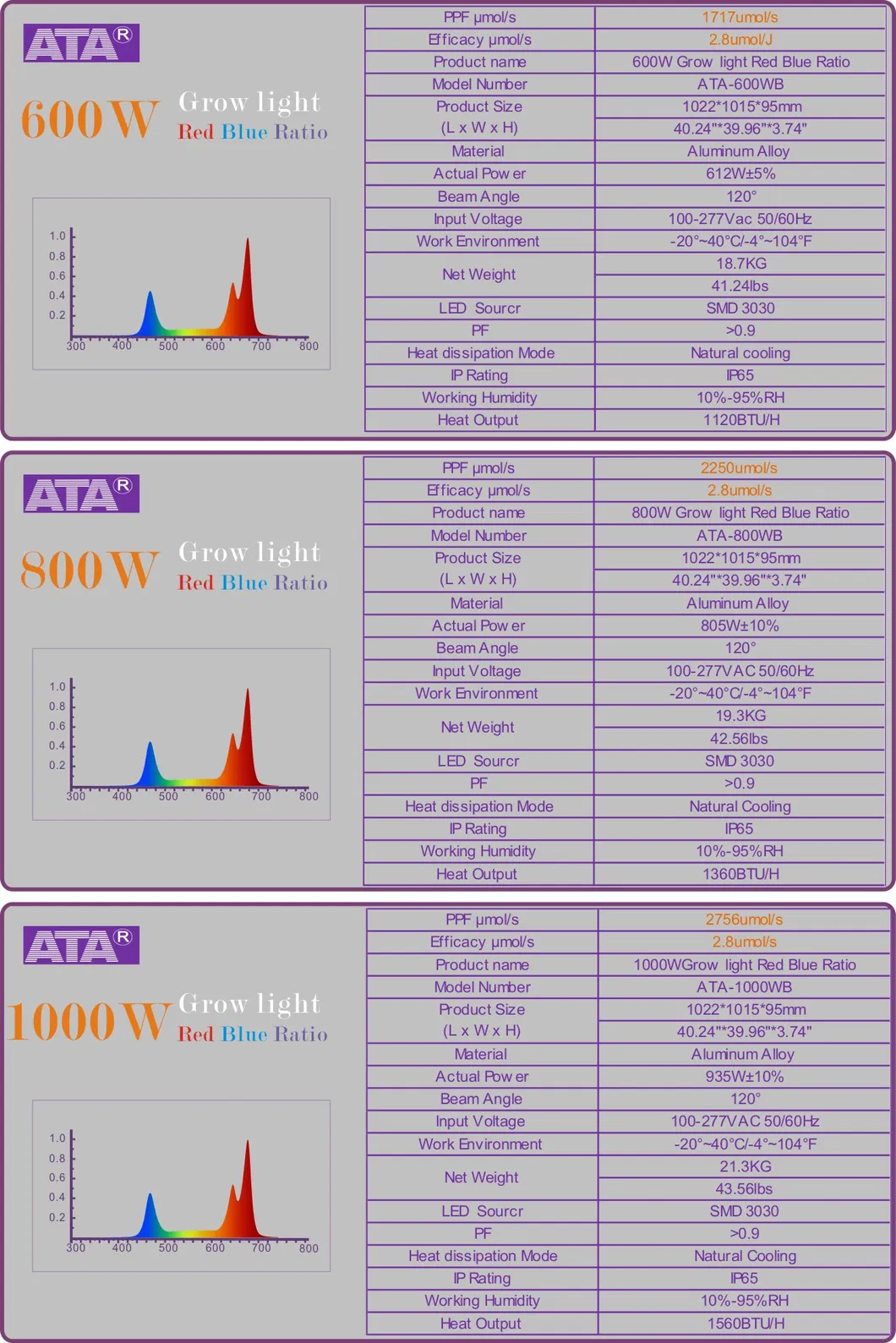

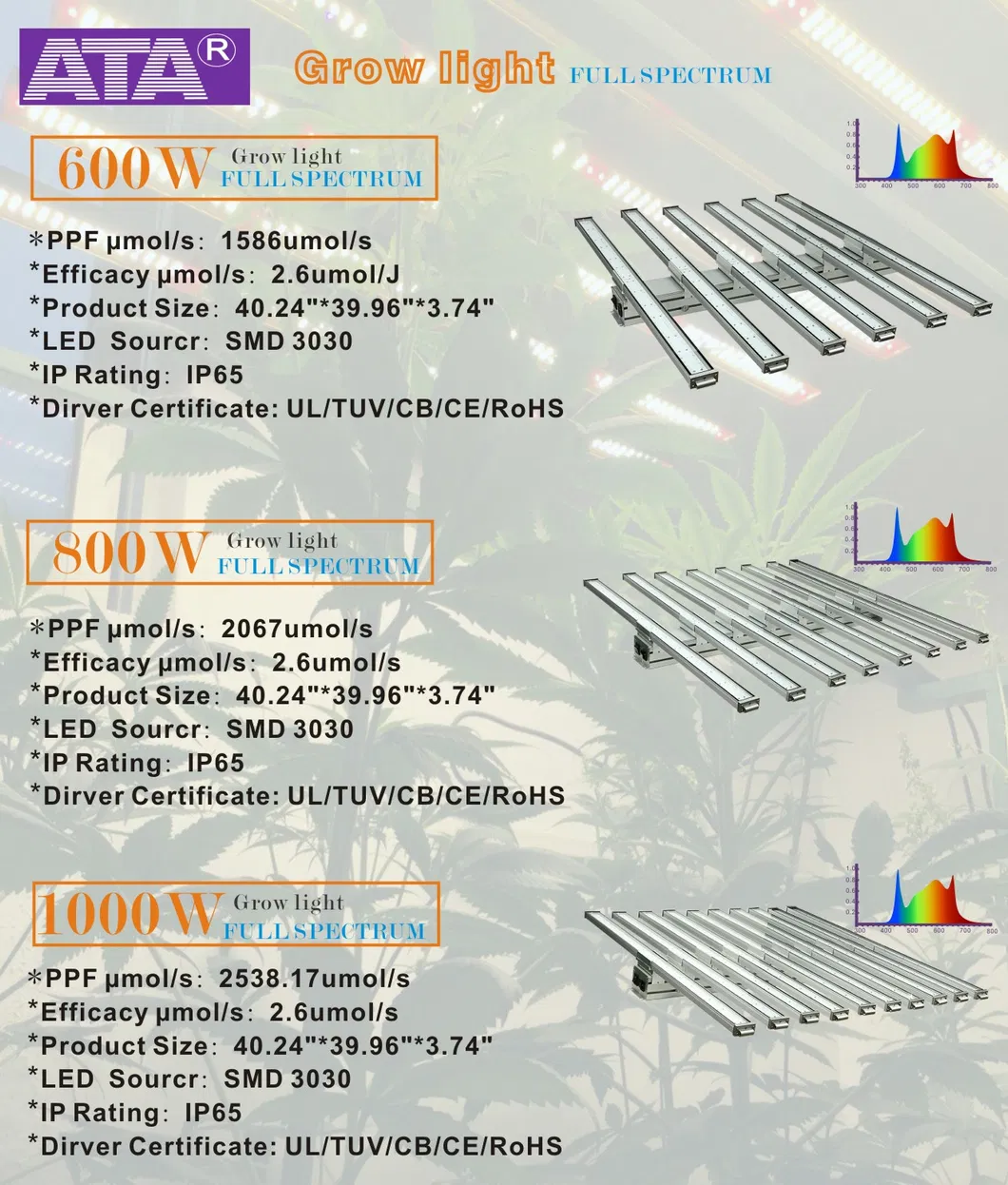

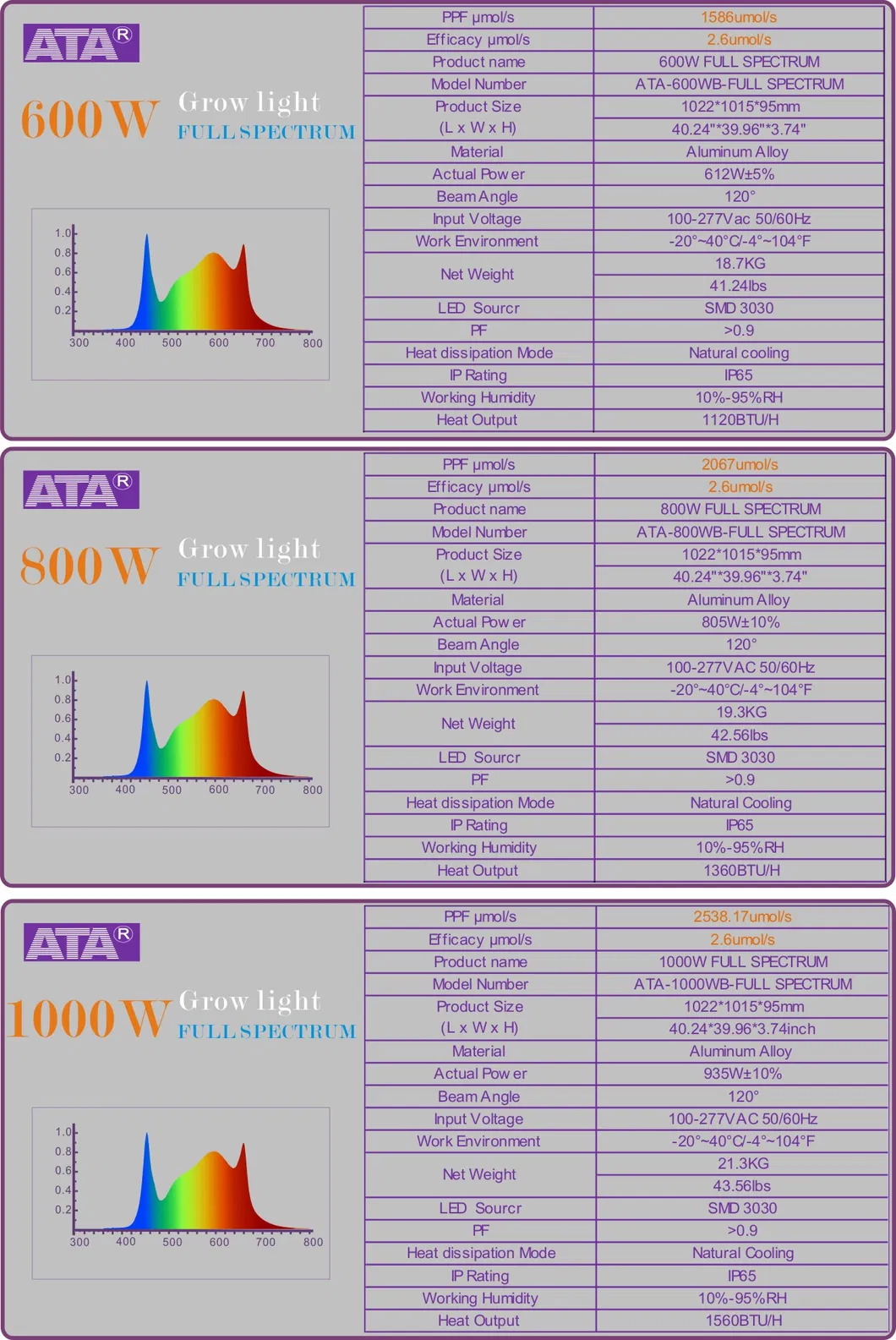

Technical Specifications
| Product Name |
Top Module Lighting (Standard) |
Top Module Lighting (Lens) |
Full Spectrum Module |
| Product Size |
1022*1015*95mm |
1022*1015*95mm |
1022*1015*95mm |
| Material |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
| Power Consumption |
545W±5% |
545W±5% |
545W±5% |
| LED Type |
3W /LED 3030 LED |
3W /LED 3030 LED |
1W /LED 5730 LED |
| Beam Angle |
120° (without lens) |
90° (with lens) |
120° (without lens) |
| PPF µmol/s |
1586umol/s |
1586umol/s |
1586umol/s |
| IP Rating |
IP65 |
IP65 |
IP65 |
Performance Data
PPFD Map
Light Spectrum
Dimensions & Installation

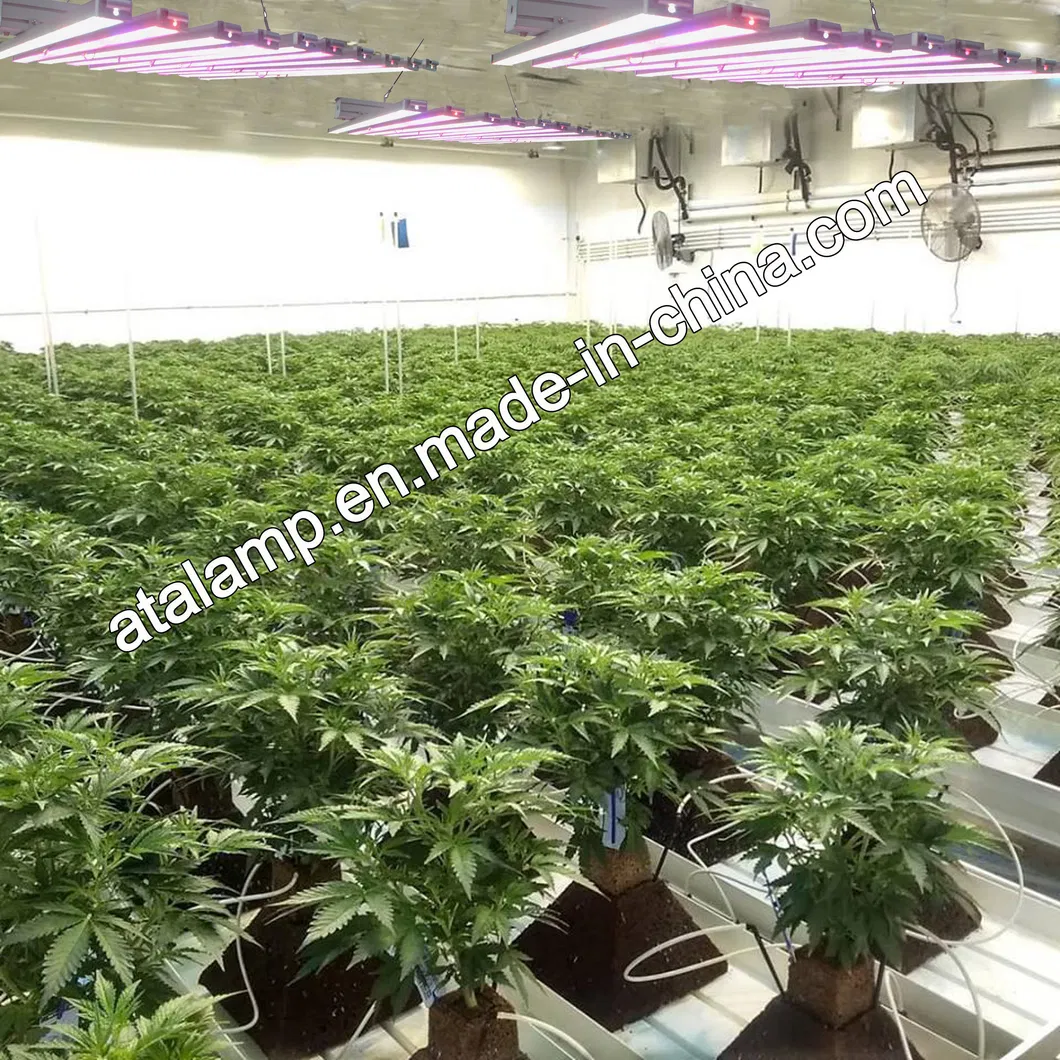

Applications
Ideal for Fruit, Vegetables, Flowers, Special Crops, Leafy Greens, Seedlings, Propagation, Greenhouse cultivation, Medical plants, Indoor gardens, and Pipeline cultivation.
User Guidelines & Quality Control
- Switch off power supply before any installation work.
- Ensure mounting on a stable, even background.
- Stability Test: 100% of lamps undergo aging tests for at least 48 hours.
- Lighting Test: 100% functionality check before packing.
- Drop Test: All units are protected by Pearl Foam and K=K boxes.
Frequently Asked Questions
1. What stages of plant growth is this light suitable for?
The light features a full spectrum design including Blue, Red, IR, and UV, making it ideal for all stages of growth from seedling and vegetation to flowering and fruiting.
2. How does the adjustable bar system benefit my plants?
The adjustable bars allow you to modify the distance between light sources, enabling precise control over lighting intensity and direction based on your specific canopy needs.
3. Can this LED light replace traditional HPS systems?
Yes, this high-efficiency LED system is designed to provide more effective coverage than traditional HPS/MH series while consuming significantly less power.
4. Is the fixture waterproof for greenhouse use?
The product carries an IP65 rating and is built with high-quality aluminum, making it resistant to dust and moisture common in greenhouse environments.
5. What is the expected lifespan and warranty?
The LED bars are rated for a life of 50,000 hours. We provide a 3-year warranty for the standard 1000W models to ensure long-term reliability.
6. What cooling methods are used for heat management?
The unit utilizes high-grade aluminum bars for passive natural cooling. For specific high-intensity setups, it can also support water cooling systems.
