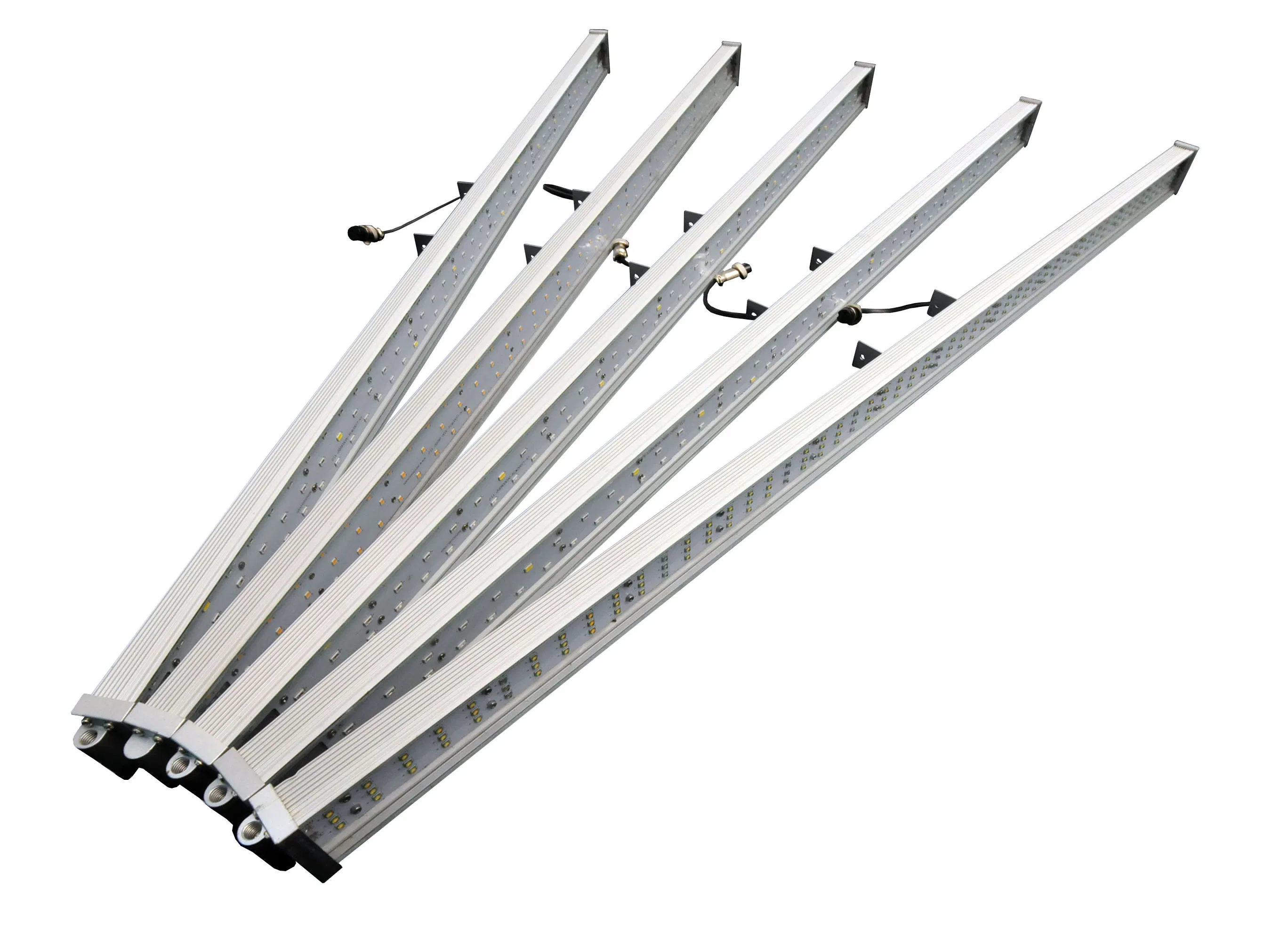

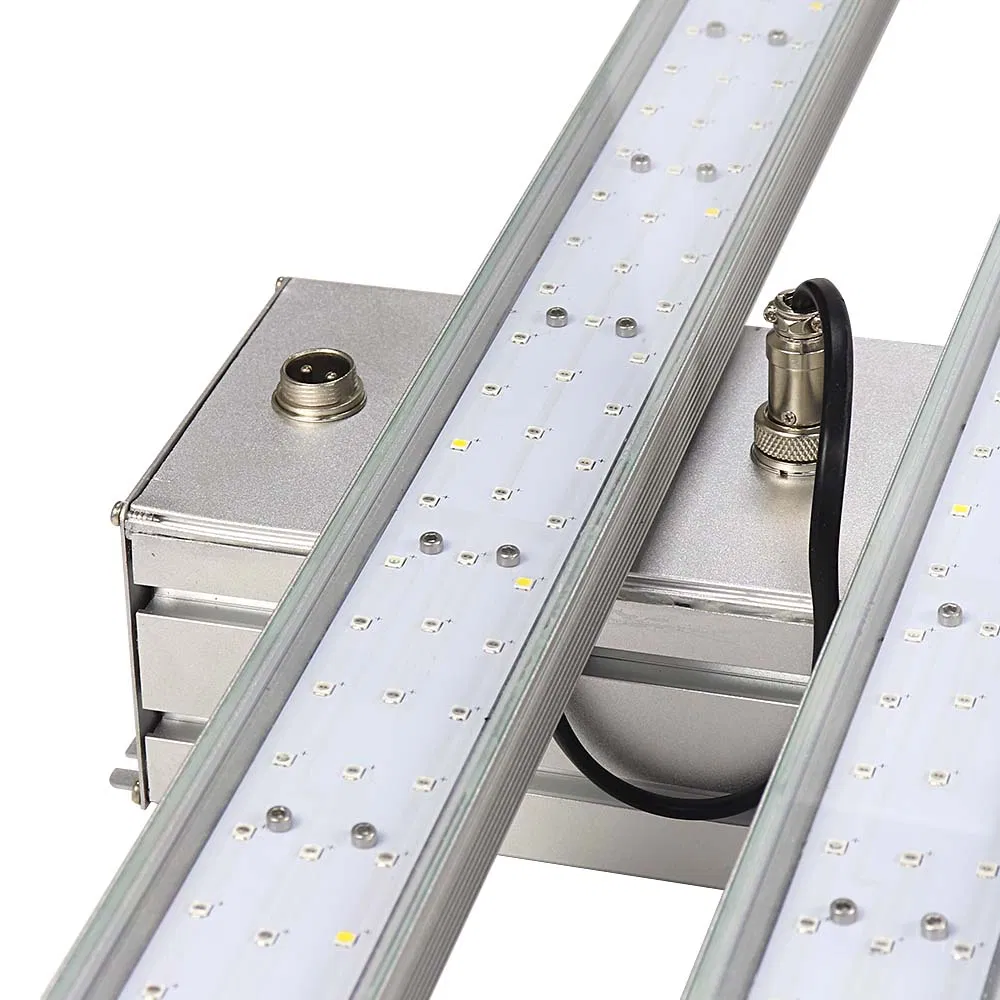

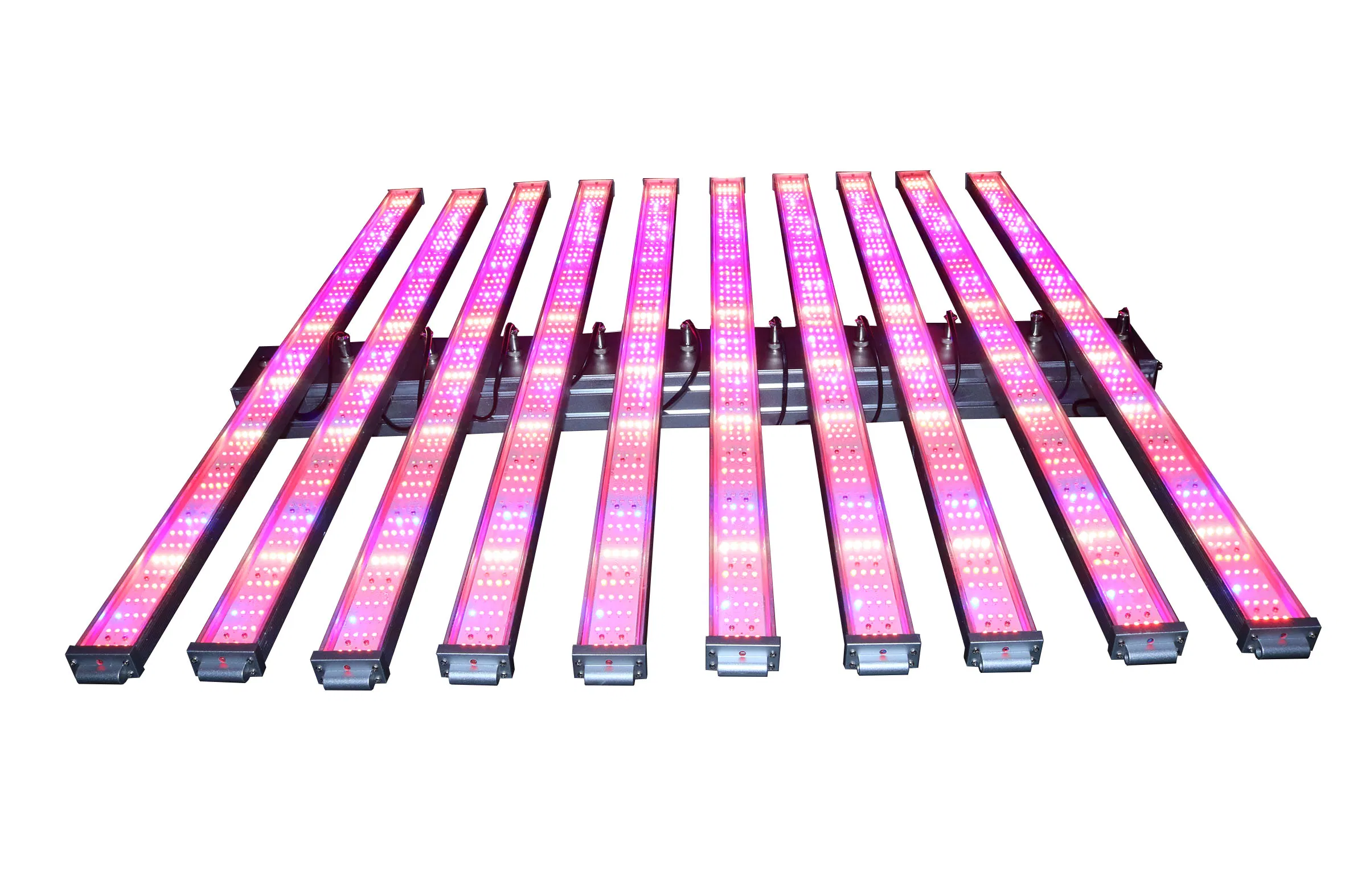

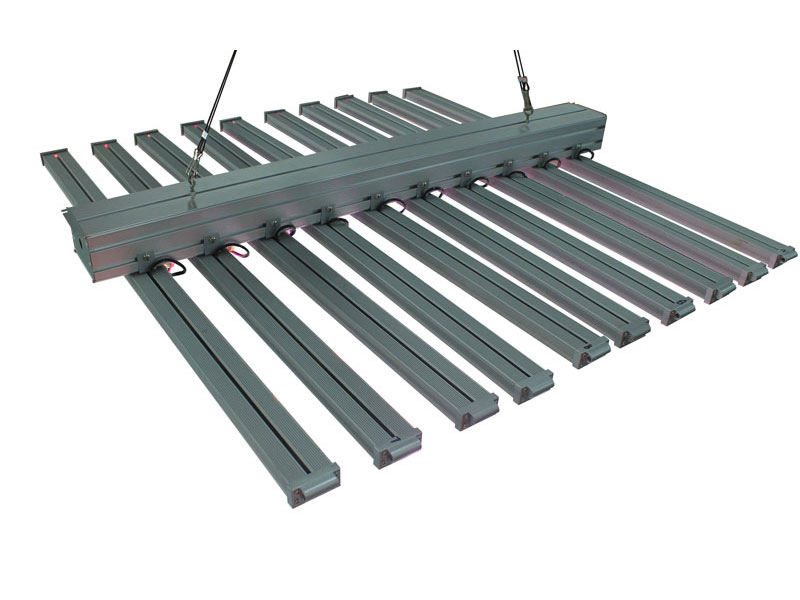

Smart Succulents Integrated COB/SMD 50W/75W/80W/100W/150W/300W/400W/450W/500W/600W/650W/700W/800W/900W/1000W/1200W/1500W LED Grow Light Bar

Customization: Available
IP Rating: IP65
Emitting Color: Customized

Product Description

Basic Specifications

Model NO.ATA-1000WB-FD
Input VoltageAC100-277V
Actual Power600W
LED ChipsEpiled / Samsung / Cree / Osram
SpectrumFull Spectrum (Red Blue Ratio)
PPF1586umol/S
Efficiency2.4umol/S
Cooling MethodsPassive or Water Cooling
Lifespan50,000 Hours
Warranty3 Years
MaterialHigh-grade Aluminum
CertificationCE, RoHS, CCC, FCC, SAA, PSE, Energy Star

Product Advantages

Adjustable LED Plant Grow Bar Light

  • Customizable Spectrum: Optimized full spectrum provides plants in Veg and Flower stages with everything they need from natural sunlight.
  • Advanced Light Design: Includes Blue, Red, IR, UV, and White light. IR/UV promotes defense mechanisms, while blue and red are essential for growth.
  • Adjustable Configuration: Distance between LED bars can be adjusted for different lighting intensities and directions.
  • Superior Thermal Management: Aluminum bar structure facilitates excellent heat dissipation and air convection for a long lifespan.
  • Modular Optical Lens: Convenient for assembly and installation with efficient light distribution.
  • High Efficiency Replacement: The 600W LED system replaces traditional 400W HPS/MH while consuming lower power, covering up to 6 square meters.

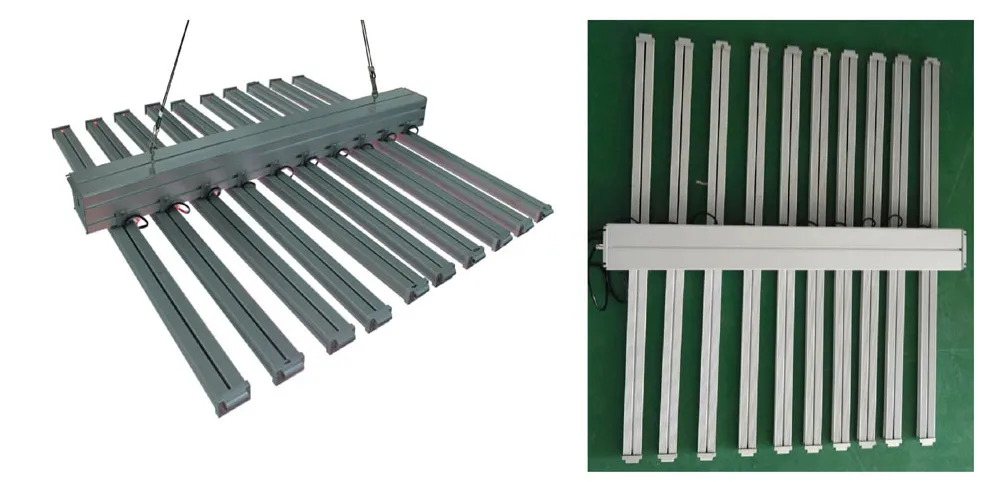

LED Grow Light Bar Overview

Technical Specifications

Model ATA-M600W ATA-M600W-LENS ATA-M600W-FULL
Product Size 1022*1015*95mm 1022*1015*95mm 1022*1015*95mm
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy
Power Consumption 545W±5% 545W±5% 545W±5%
LED Type 3030 LED 3030 LED 5730 LED
Beam Angle 120° 90° 120°
IP Rating IP65 IP65 IP65
Warranty Three years Three years Two years

Performance & Dimensions

PPFD Chart

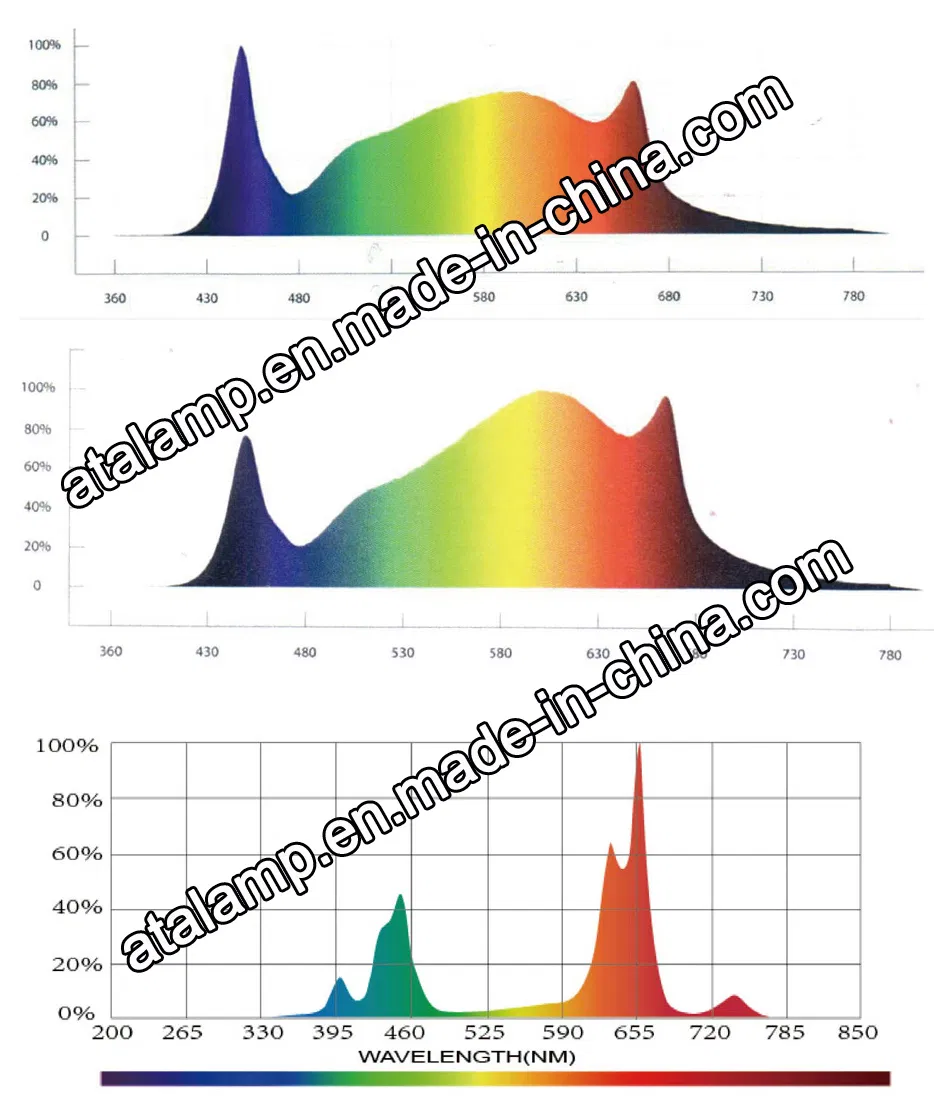

Spectrum Data
Product Dimensions

Applications

Ideal for various environments: Fruit, Vegetable, Flowers, Special Crops, Seedlings, Propagation, Greenhouse, Medical plants, Indoor gardens, and Pipeline cultivation.

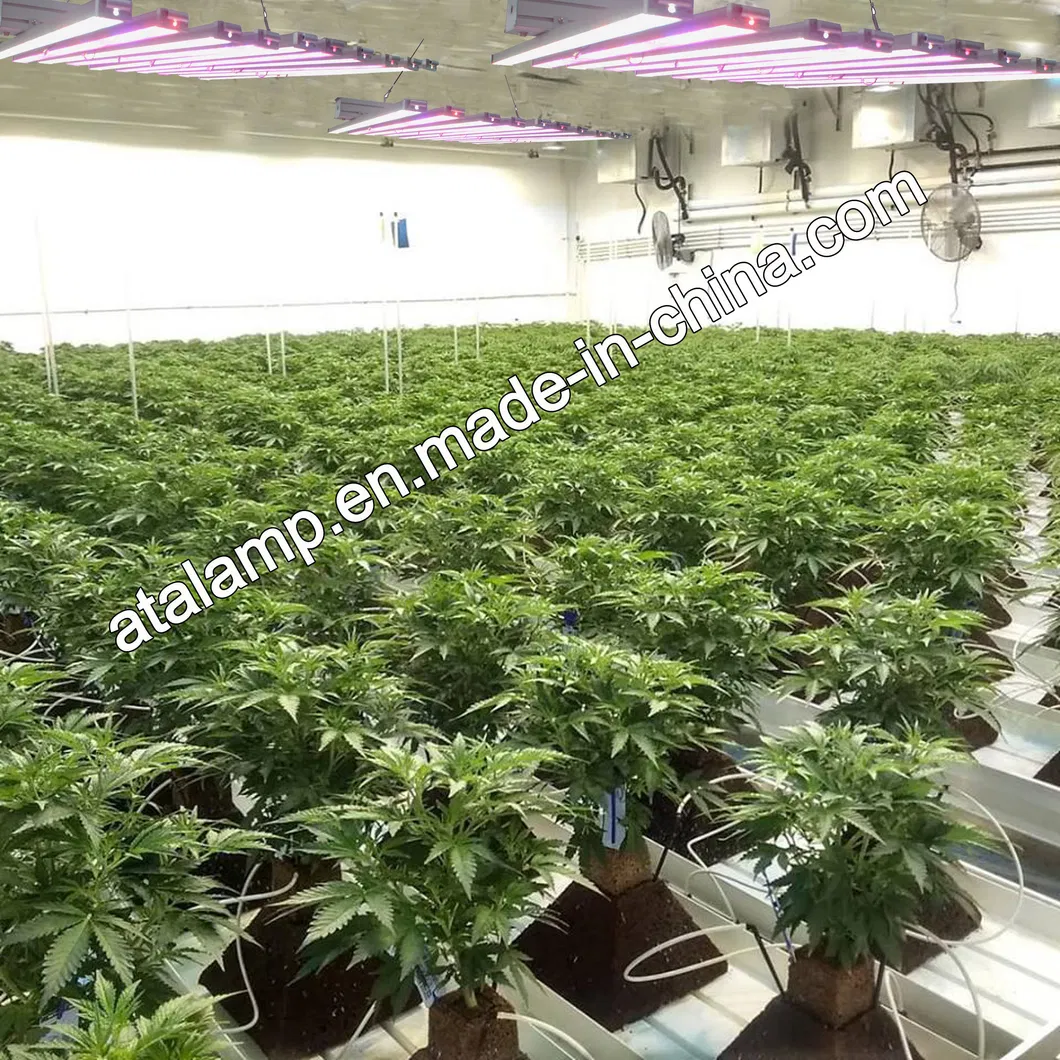

Installation

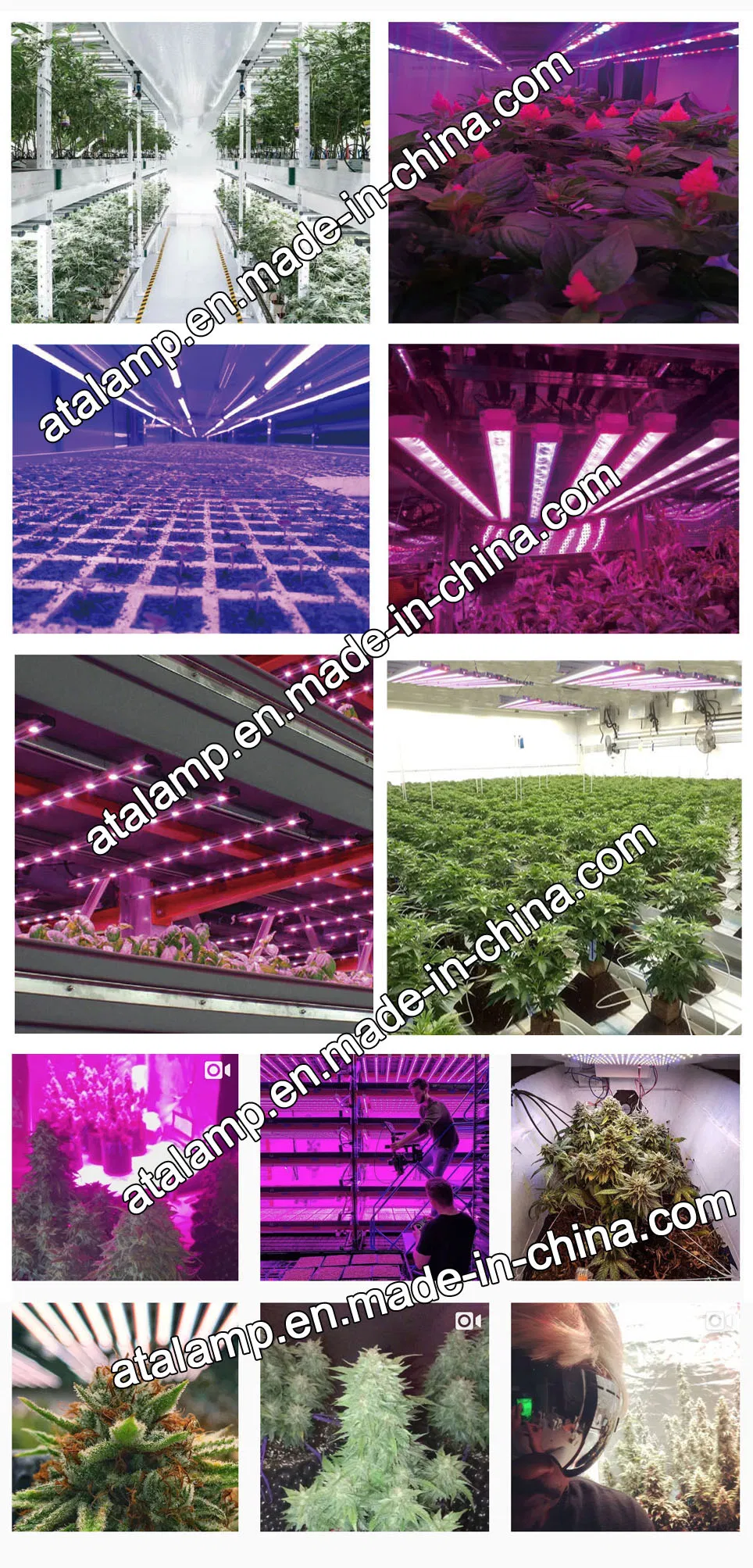

Application Cases

Quality Assurance

  • Stability Test: 100% aging test for at least 48 hours.
  • Lighting Test: 100% functional verification before packing.
  • Drop Test: Rigorous packaging protection to ensure safety during transit.

Frequently Asked Questions

What is the actual power consumption of this light?
The actual power consumption is approximately 545W±5%, though it is rated as a 600W class LED grow light.
Is the spectrum suitable for all growth stages?
Yes, it features a full spectrum design including Red, Blue, IR, and UV, which supports plants from the vegetative stage through to flowering.
How does the cooling system work?
The unit utilizes an aluminum bar structure for natural passive cooling and efficient heat dissipation. Water cooling options are also available.
What is the coverage area for this 600W light?
At a height of 1 meter, the light provides an effective coverage area of approximately 6.0 square meters.
Does the product come with a warranty?
Yes, the product comes with a 3-year warranty for the standard ATA-M600W models.
Can I adjust the intensity of the light?
The bars are adjustable, allowing you to change the distance between them to manage light intensity and coverage direction according to your plants' needs.
