Efficient Samsung DIY Unit Plate Plant Growing Grow Lights Qb Full Spectrum Commercial-Scale Farming LED Grow Lights with IR/UVA/UVB

Still deciding? Get samples of $ !
Order Sample

Product Description

Product Overview

Model:
QB PRO
Spectrum:
Full-Spectrum (385nm-730nm)
Input Voltage:
100-277V
Power:
240W
LED Chips:
Samsung LM301H, O-sram, Seoul
PPE:
2.8 μmol/Watt
Warranty:
3 Years
Lifespan:
30,000h

About Our Solutions

We are a professional manufacturer focusing on mid-to-high-end grow lighting markets. By combining lighting science with plant biology, we provide customized services for vertical farming, hydroponics, and soil-based cultivation. Our R&D emphasizes smart control, spectrum efficiency, and energy-saving designs.

🌱 QP Series

Compact PCB lights ideal for small spaces.

🌿 QB Series

Professional spectrum with independent UV modules for home growers.

🚜 QS Series

High-intensity light with group control for large-scale operations.

Grow Light System

QB PRO Grow Light Details

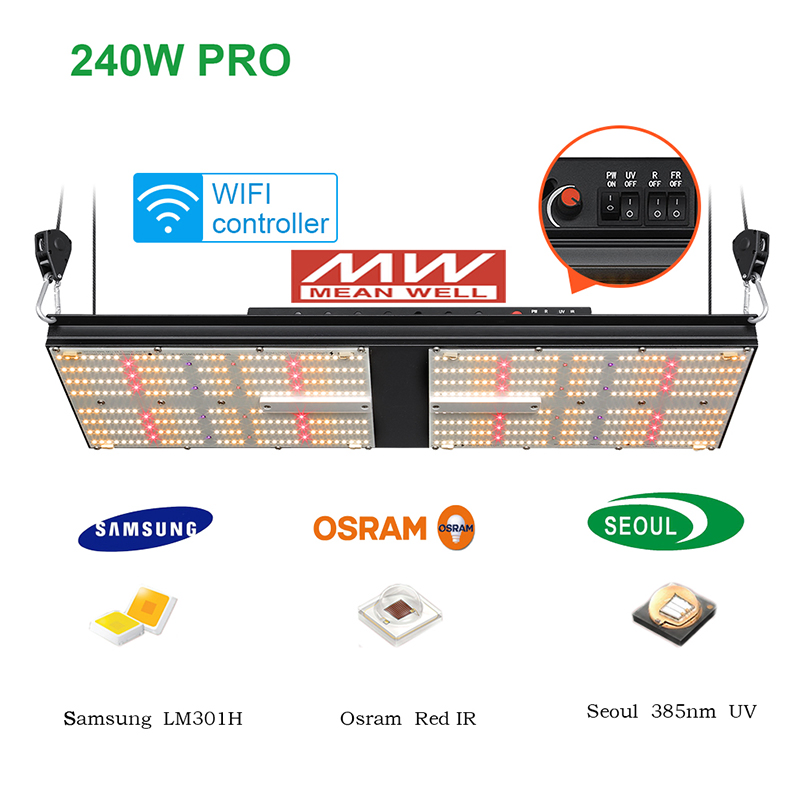

The QB Pro full spectrum LED grow lights are engineered for large-scale commercial cultivation. Utilizing top-bin Samsung LM301H, O-sram, and Seoul chips, these units provide unparalleled efficiency.

  • 🎯 Dimming: 0-100% Intensity
  • 🛡️ Protection: IP65 Waterproof
  • 📶 Smart: Wi-Fi & Bluetooth App Control
  • Power: Meanwell Driver Integration
  • 💡 Control: Separate UV/IR/White switches
  • 🔗 Linkable: Multi-device RJ interface

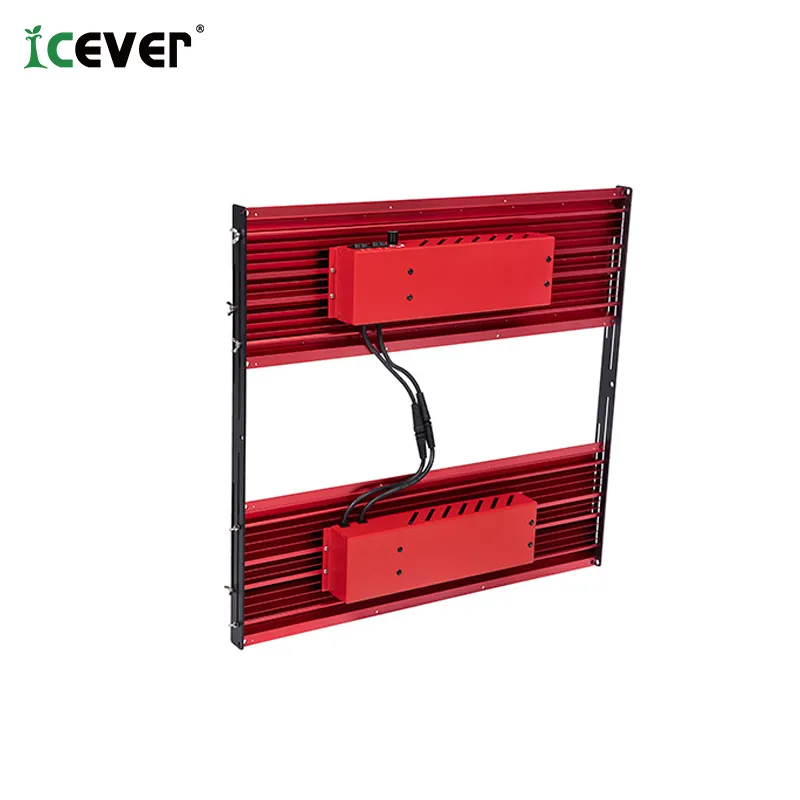

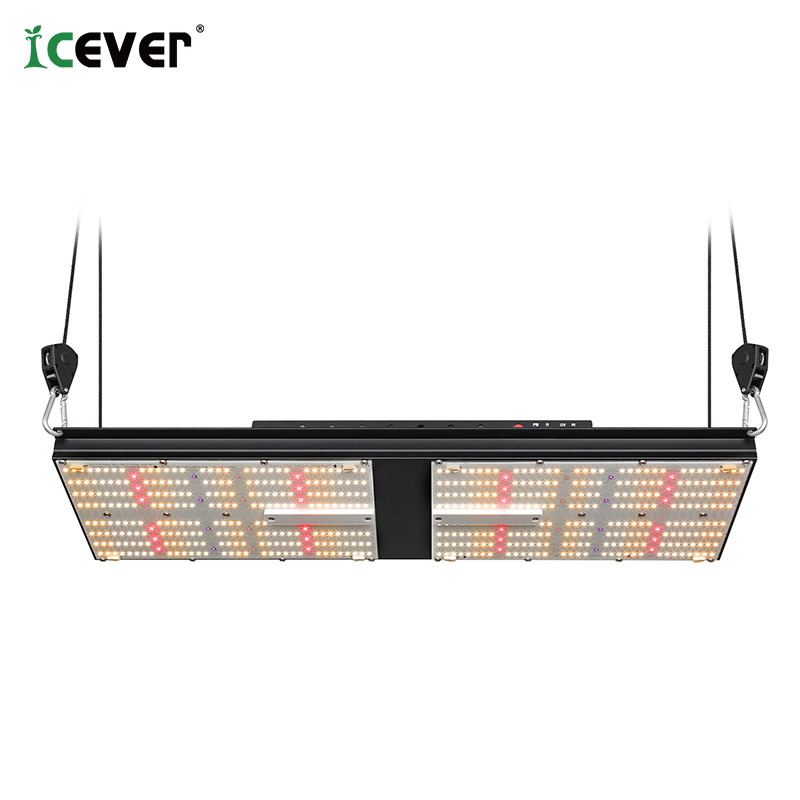

QB Pro Product View
MODEL NO. 120W 240W 320W 480W 720W
LED Source Samsung LM301H, O-sram, Seoul
PPF 312μmol/s 624μmol/s 832μmol/s 1248μmol/s 1872μmol/s
PPE 2.6 - 2.8 μmol/J

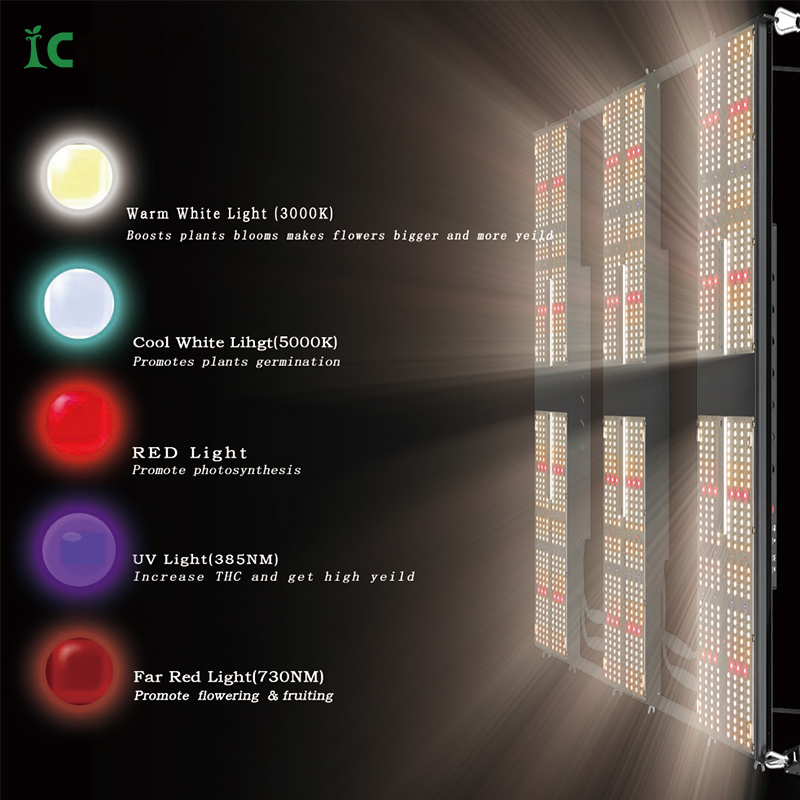

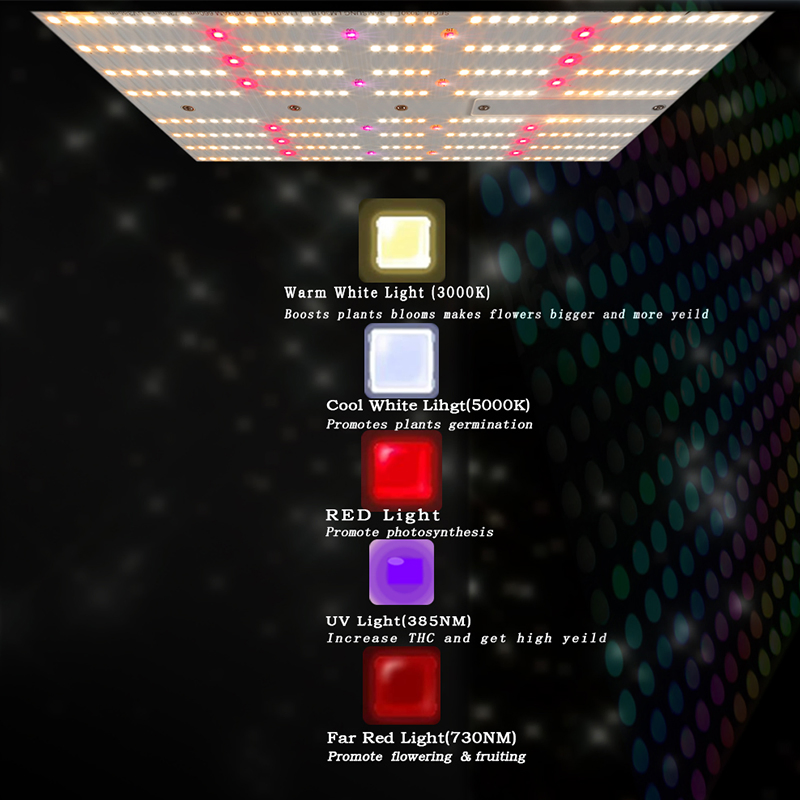

CCT 3000K + 5000K + 660nm + 730nm + UV 385nm

Technical Advantages

Industry-Leading Chips

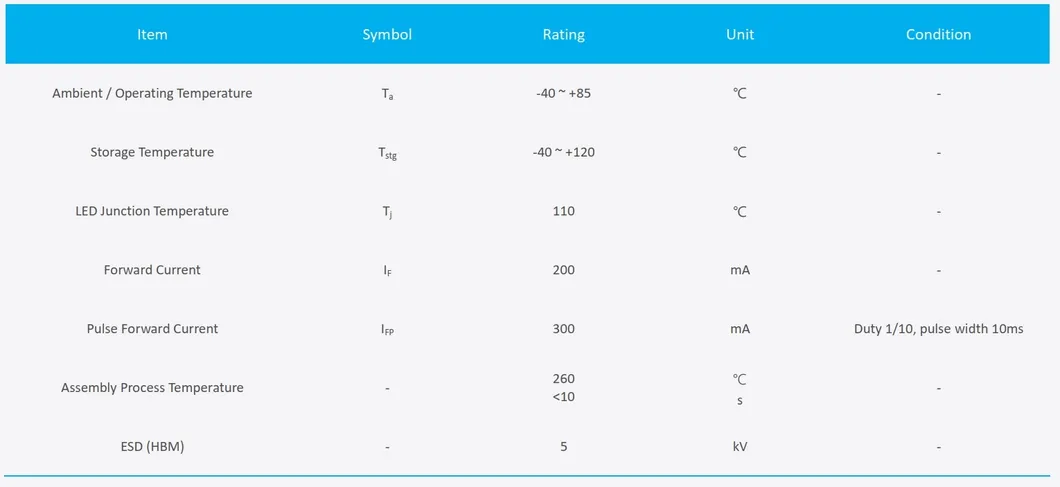

Samsung LM301H chips outperform entry-level options by 24% in photon efficacy. Our thermal management system keeps internal temperatures between 25°C and 65°C, ensuring consistent performance and longevity.

Optimized Full Spectrum

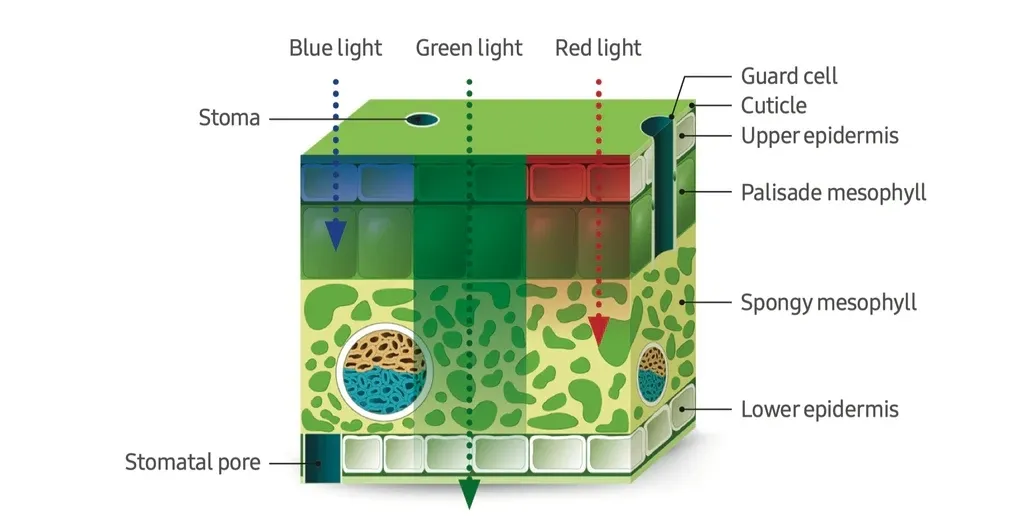

By including green light (which penetrates deeper into the canopy), we maximize photosynthetic efficiency. Our spectrum design approaches natural sunshine while neutralizing light pollution from traditional red/blue setups.

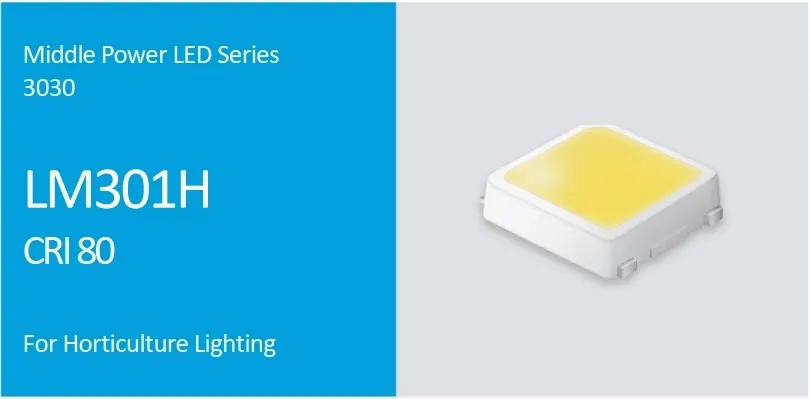

Chip performance

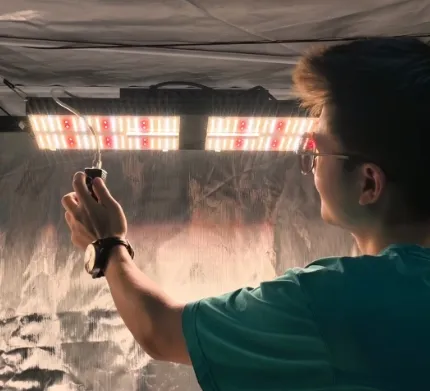

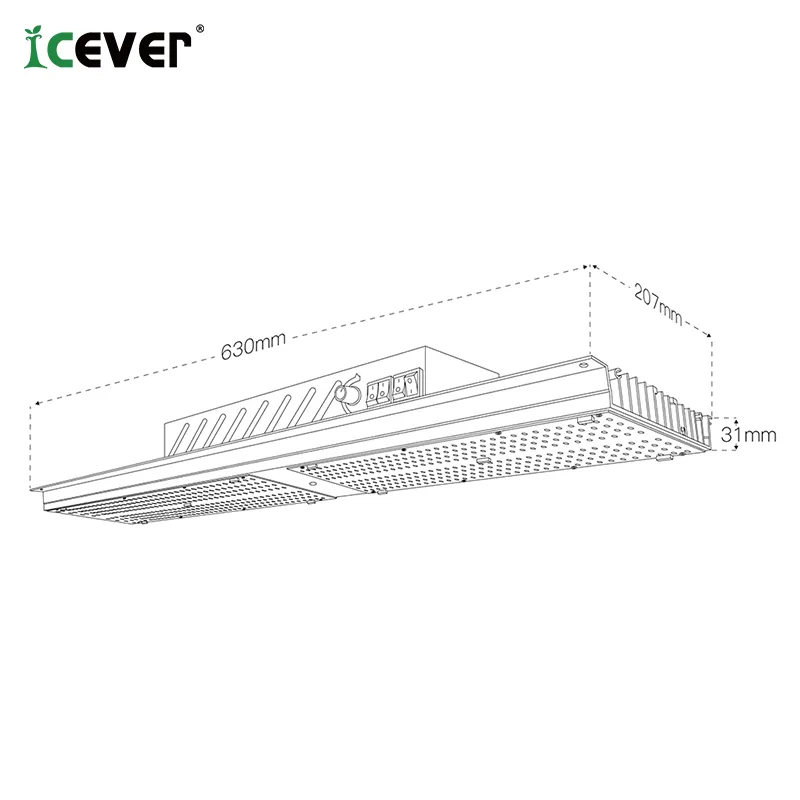

Detailed Gallery

Frequently Asked Questions

How does the QB Pro handle heat in demanding environments?

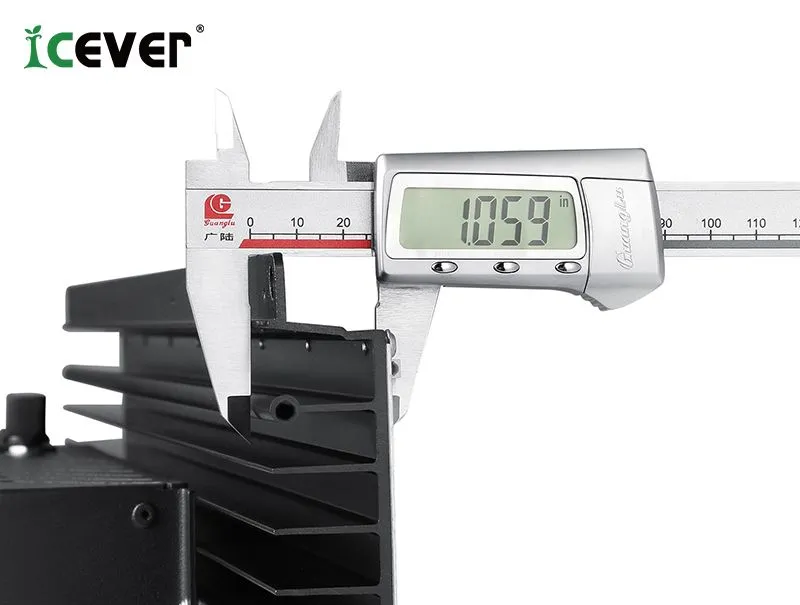

We use branded LED chips and an optimized aluminum grille design to boost airflow. The IP65 waterproof design also protects the driver components from condensation caused by temperature swings.
Does the system support remote smart control?
Yes, the QB Pro series supports Bluetooth and Wi-Fi smart control. Users can adjust light intensity and modes remotely via mobile devices, making it ideal for large-scale operations.
What is the expected shipping time?
For European customers, shipping from local storage typically takes 5-15 days. Factory direct orders for samples usually take 2-10 days depending on the model.
Can the light spectrum or color temperature be customized?
Our standard setup uses a mix of 3000K and 5000K. However, we can customize configurations (e.g., pure 3000K or 3500K) based on specific project requirements.
What does the 3-year warranty cover?
In the first year, we provide replacement parts with full shipping coverage. In years 2 and 3, costs for product replacements are shared between the client and the manufacturer on a sliding scale.
Why use Samsung LM301H instead of cheaper chips?
Samsung LM301H offers superior photon efficacy (3.10 μmol/J) and better thermal management, which results in higher yields and lower long-term operating costs compared to chips like LM281B.
