Qb UVB/UV Energy Saving 4by4 Suppliers IP 65 DIY Full Spectrum Grow Light Lighting Tent IR Red with 301b Chips (CE)

Still deciding? Get samples of $ !
Request Sample

Product Description

i
Basic Information
Model NO.
QB pro120W
Emitting Color
Full-Spectrum
Input Voltage
100-277V
Power
120W
Shape
Square
Warranty
3 Years
Housing Material
PC Sheet
Life
30000h
LED Chips
Samsung
Certification
CE, RoHS, EMC
Efficiency (PPE)
2.8 Umol/Watt
PPF
336 Umol/S
LED Source
Samsung Evo/Lm301h/301b & O-Sram & Seoul
Power Supply
Meanwell

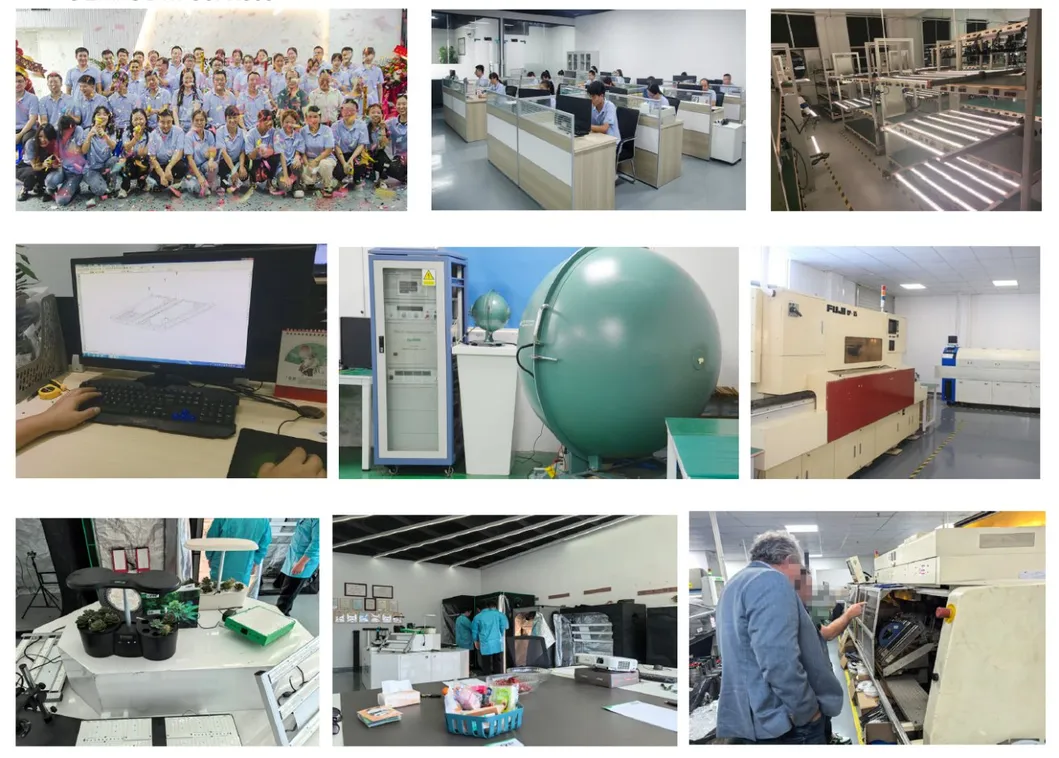

Professional Profile

We are a professional ODM&OEM Manufacturer focusing on the mid-to-high-end market. We combine lighting with plant growth to provide professional and customized services. Our products cover a wide range of applications, including plant and vegetable cultivation, vertical farming, hydroponics, soil-based growing, and livestock breeding.

ODM Manufacturer
QP Compact PCB-type light, ideal for small spaces
QB Professional spectrum + Independent UV module + Smart control. Perfect for home growers
QS High-intensity light + Professional spectrum + Group control. Designed for large-scale grows
V3 Versatile functions + Foldable for transport + Excellent lighting. Great for DIY setups
Grow Setup 1 Grow Setup 2 Grow Setup 3

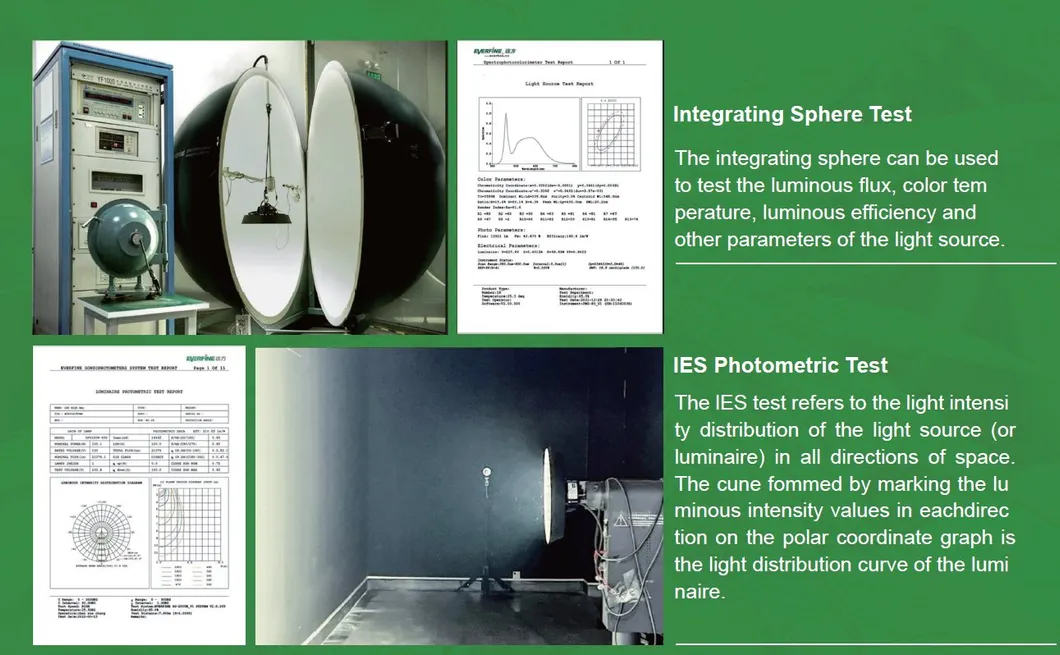

Grow Setup 4

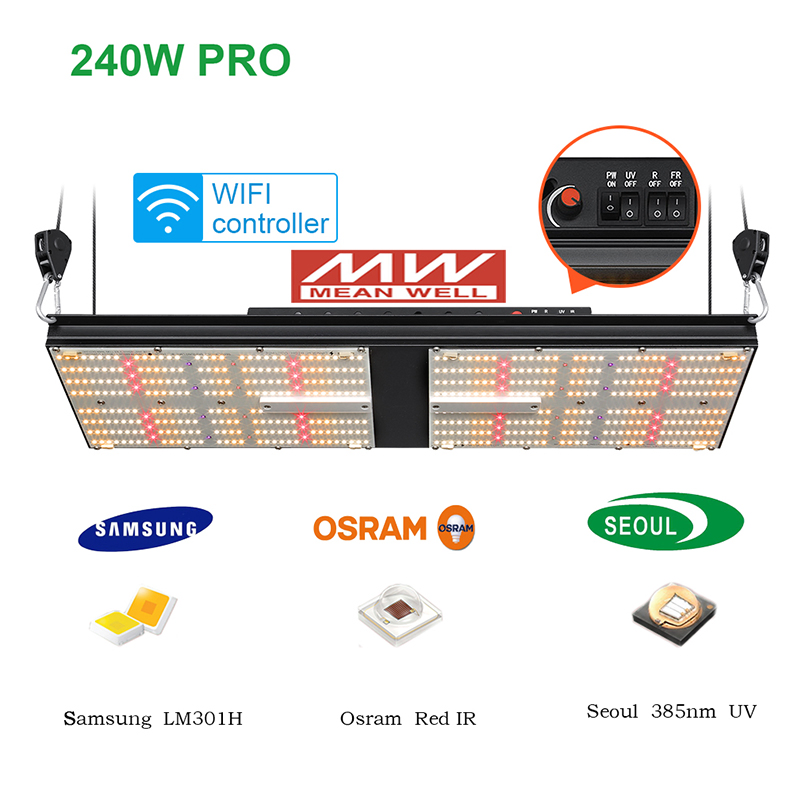

QB Pro Grow Light

The QB Pro full spectrum LED grow lights are aimed at large-scale commercial cultivation and professional indoor farms. Utilizing high-performance LED chips from Samsung LM301H, O-sram, and Seoul, it ensures efficient and reliable illumination.

  • Multi-device: Connect multiple units via RJ interface.
  • Smart Control: Light intensity from 0 to 100% via Wi-Fi and Bluetooth.

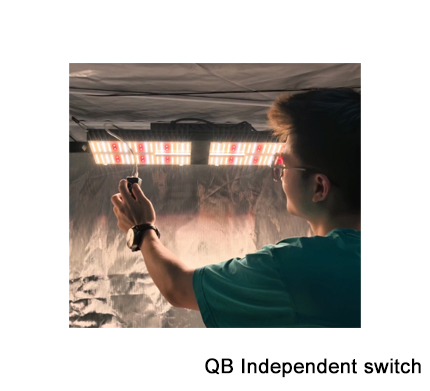

  • Spectrum Control: Separate switches for UV/IR/W.
  • High Efficiency: PPE of 2.6 μmol/J and IP65 waterproof rating.

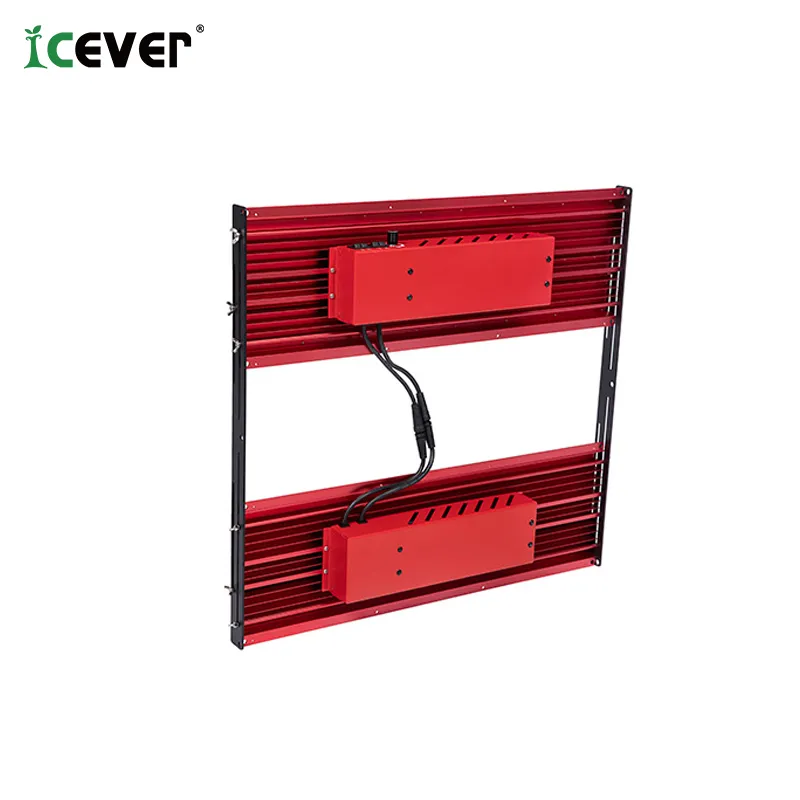

QB Pro Device
MODEL NO. 120W 240W 320W 480W 720W
LED Source Samsung LM301H, O-sram, Seoul
CCT 3000K + 5000K + 660nm + 730nm + UV 385nm

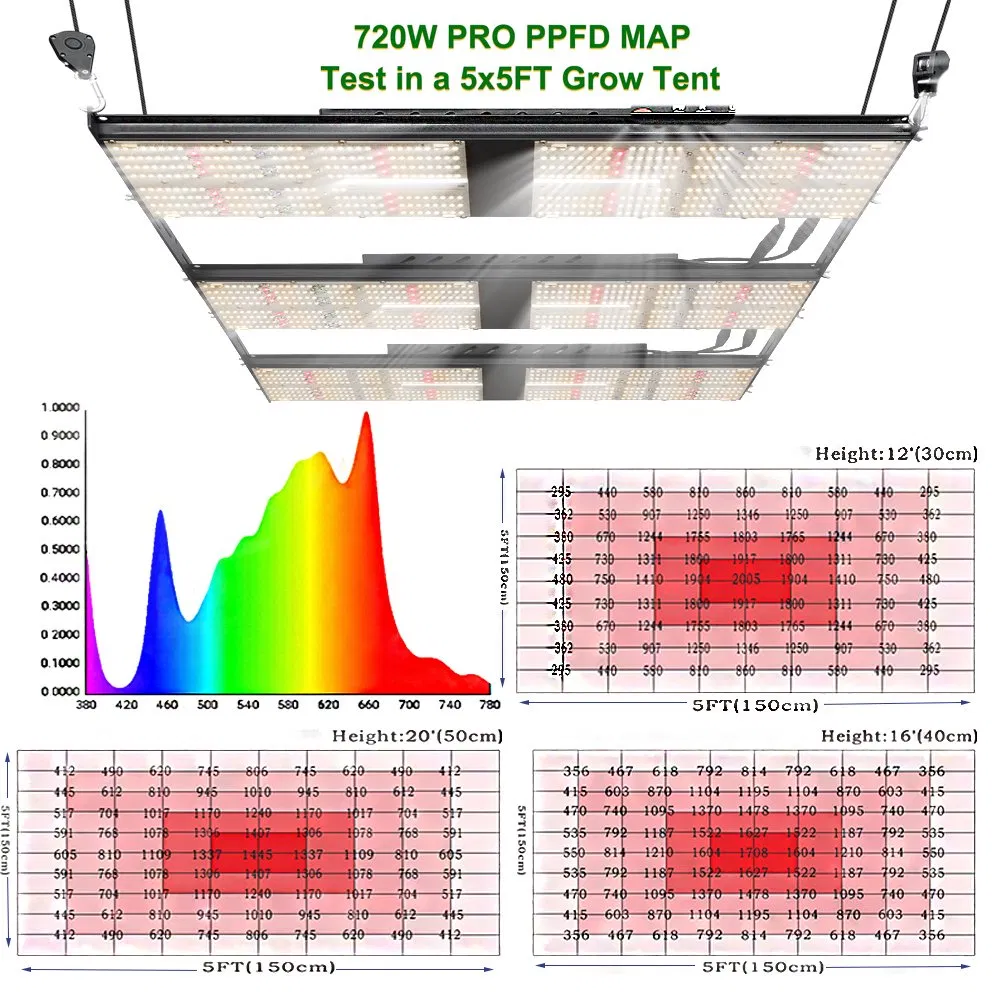

PPF 312μmol/s 624μmol/s 832μmol/s 1248μmol/s 1872μmol/s
PPE 2.6 μmol/J
Power Brand Meanwell

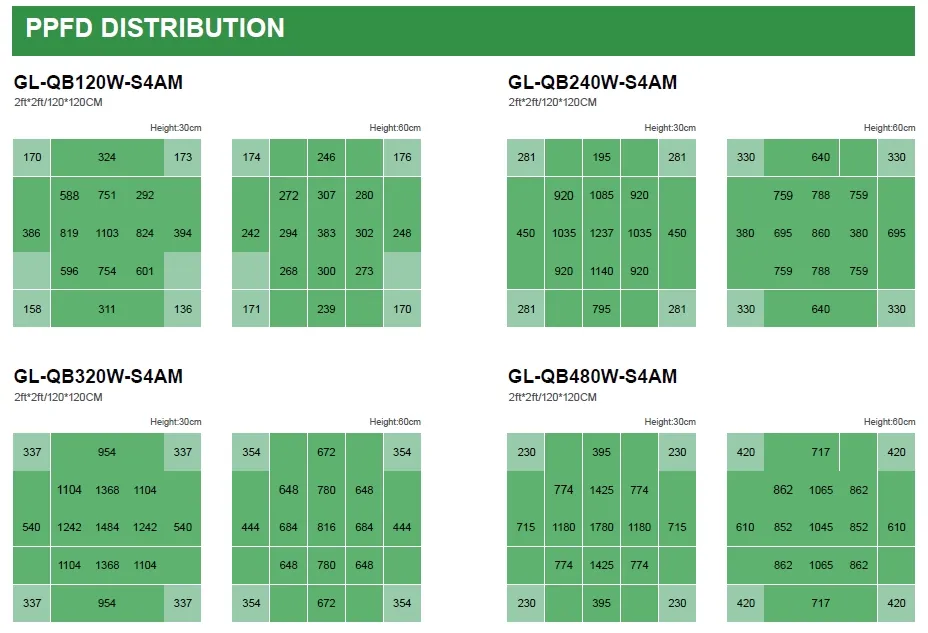

Spectrum Details
Our Advantages

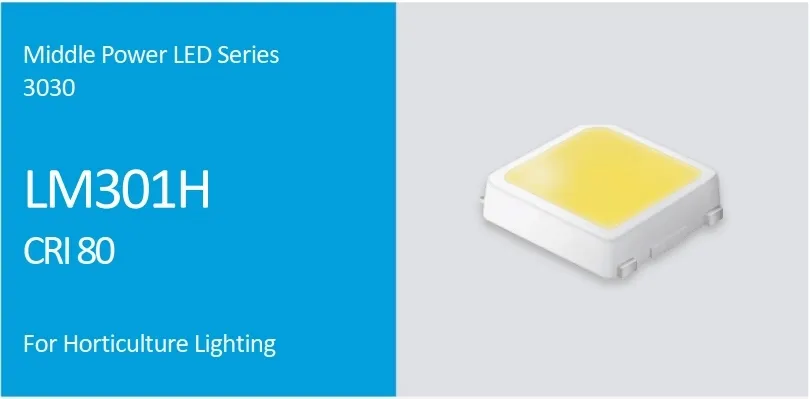

Top-Tier LED Chips: Samsung LM301H chips provide superior light efficiency, endurance, and heat dissipation. With a photon efficacy (PPE) of 3.10 μmol/J, they offer 24% higher efficiency than previous generations.

PPE Efficiency Thermal Management

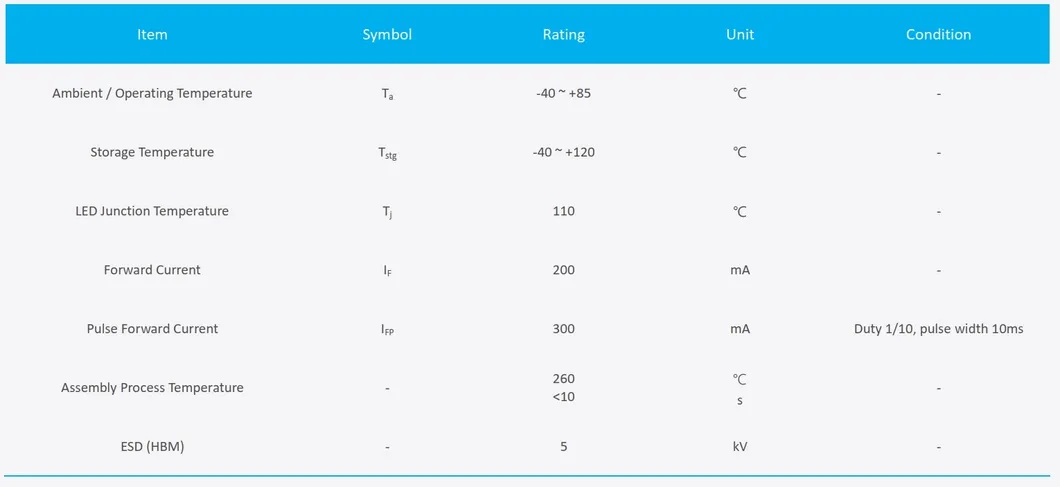

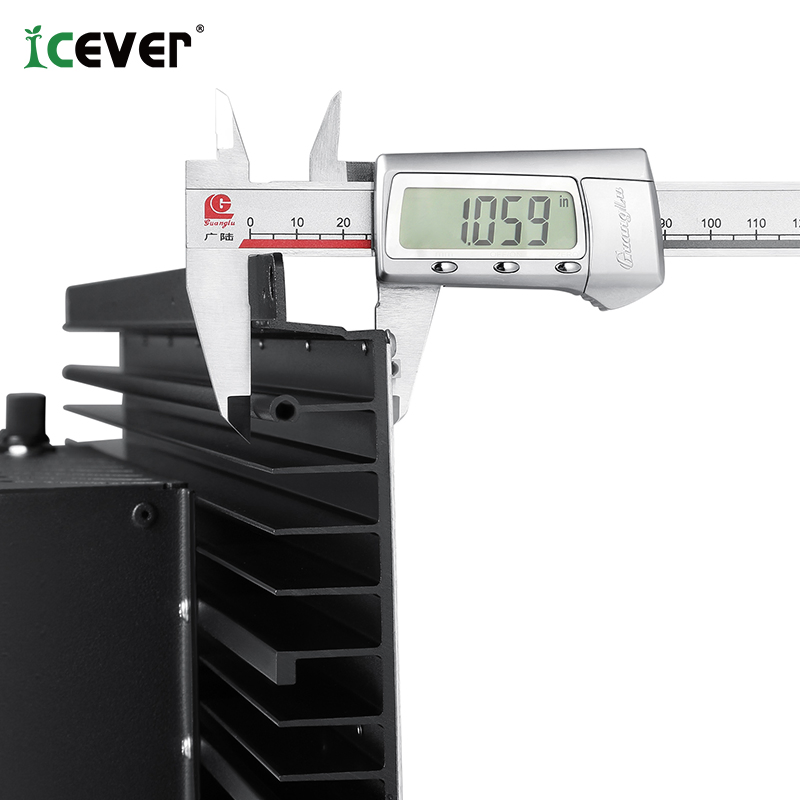

Thermal Management: The flip-chip design keeps internal temperatures between 25°C and 65°C, ensuring stability and long lifespan. Optimized airflow across the watertight grille further solves heat dissipation in demanding environments.

Internal Component Waterproof Design

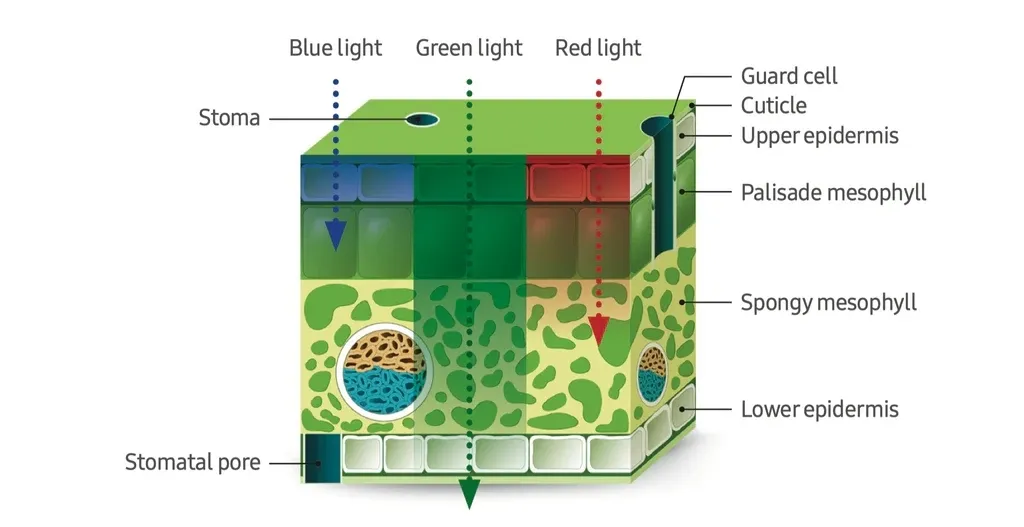

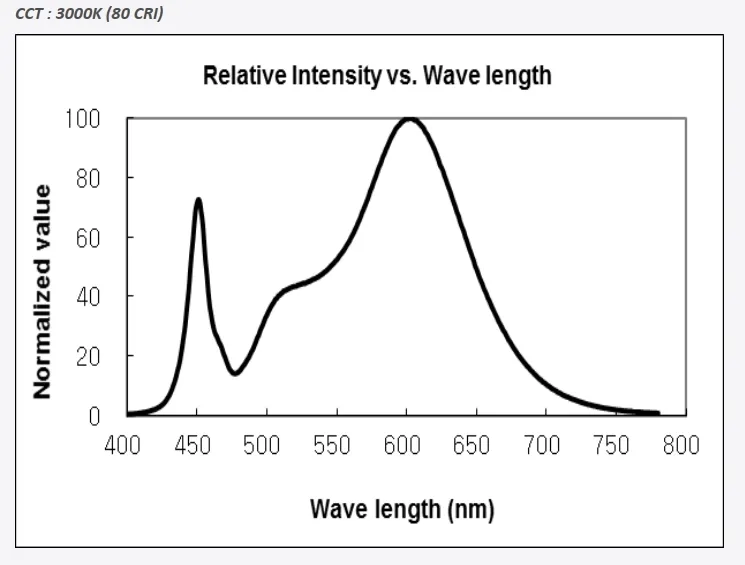

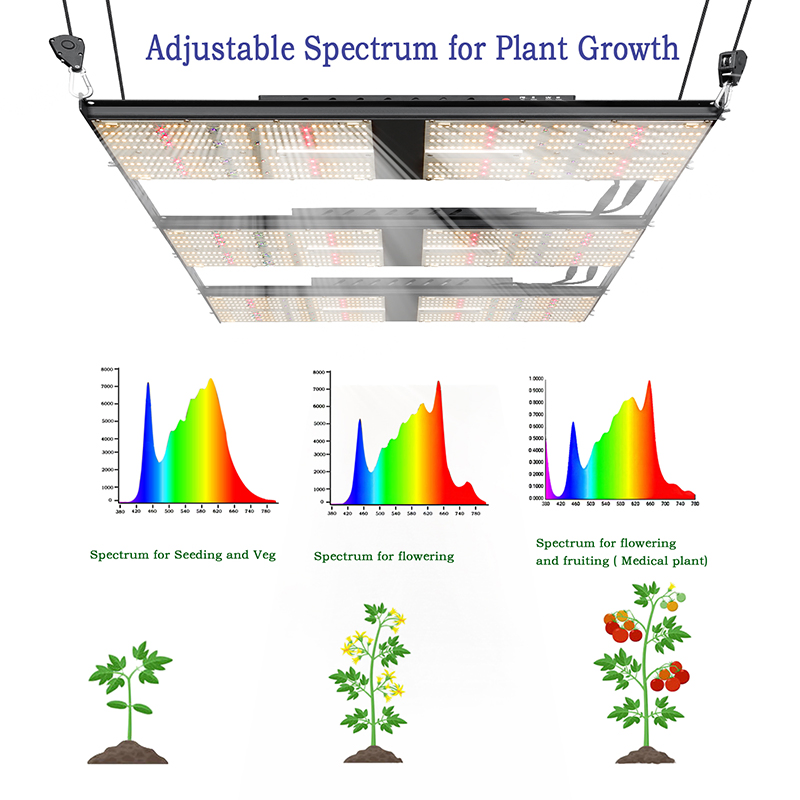

Optimized Spectrum: Combining blue, green, yellow, and red wavelengths (660nm and 730nm), the spectrum is tuned to approach natural sunshine, promoting deep leaf penetration and maximum photosynthetic efficiency.

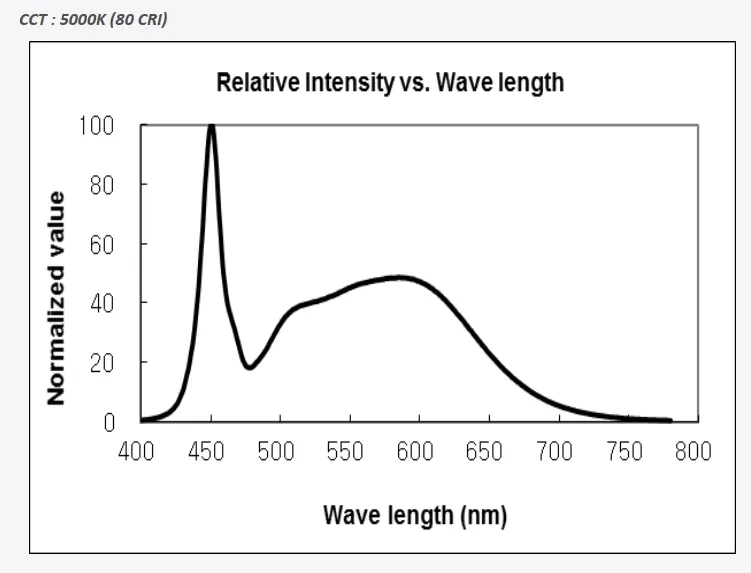

Spectrum Graph
📷
Detailed Photos

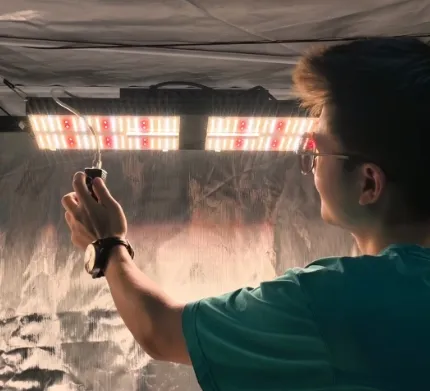

Detail 1 Detail 2 Detail 3

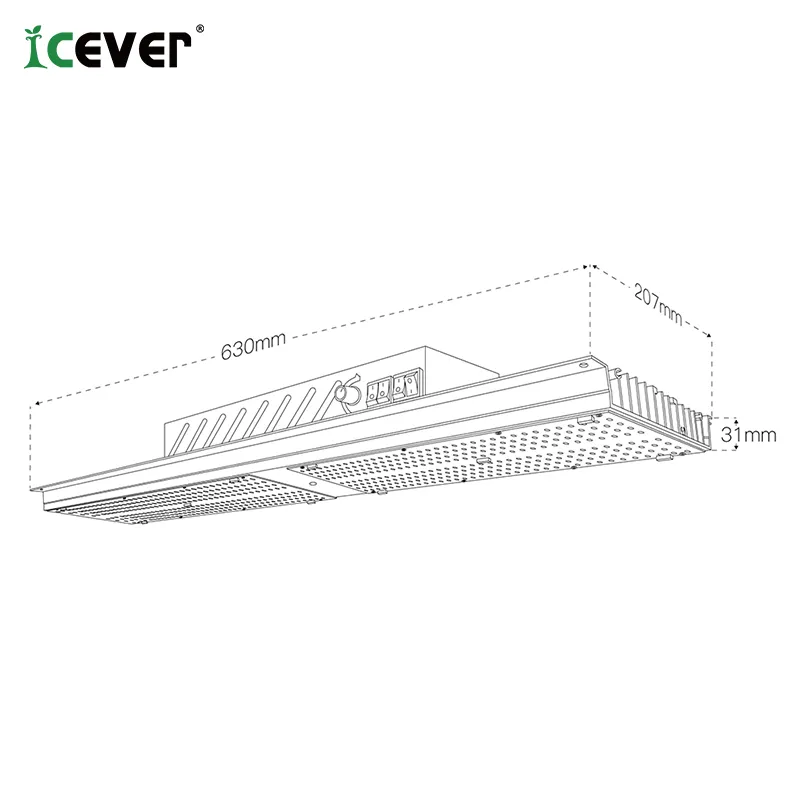

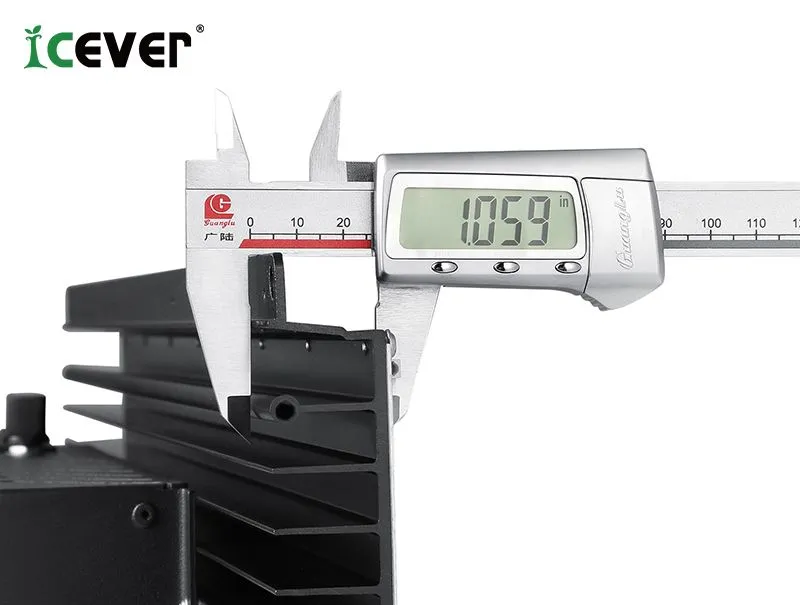

Detail 4 Detail 5 Detail 6
?
Frequently Asked Questions
Is the QB Pro Series sufficient for protection and heat dissipation in demanding environments?
Yes. High temperatures can lower LED efficiency, so we use branded chips and a watertight grille design to boost airflow. The driver components are protected against condensation from temperature swings, ensuring sound performance in varied conditions.
Does the QB Pro Series support remote adjustment or smart control?
Yes, the QB Pro grow light offers Bluetooth and Wi-Fi smart control. Users can adjust light intensity and modes remotely via mobile devices, allowing for efficient regulation across various growth stages.
How long will it take to receive the goods after payment?
We maintain storage in Europe (e.g., Germany). Local shipping typically takes 5-15 days. For factory direct shipping, samples normally take 2-3 days for QB models and 7-10 days for V3 models.
Can the white light color (CCT) be adjusted or customized?
Our standard 4-channel setup uses a mix of 3000K and 5000K. However, we can customize the configuration to specific needs, such as 3000K or 3500K only, upon request.
What is the warranty policy?
We offer a 3-year warranty. In Year 1, we cover replacement parts and shipping. In Year 2, costs for full replacements are shared (70% by manufacturer), and in Year 3, costs for full replacements are shared equally (50/50).
What are the key advantages of using Samsung LM301H chips?
Samsung LM301H chips provide a photon efficacy (PPE) of 3.10 μmol/J, which is significantly higher than older chips. They offer better thermal management and slower light decay, resulting in lower long-term running costs and higher yields.
