📋 Basic Info.
💡 Product Description & Advantages

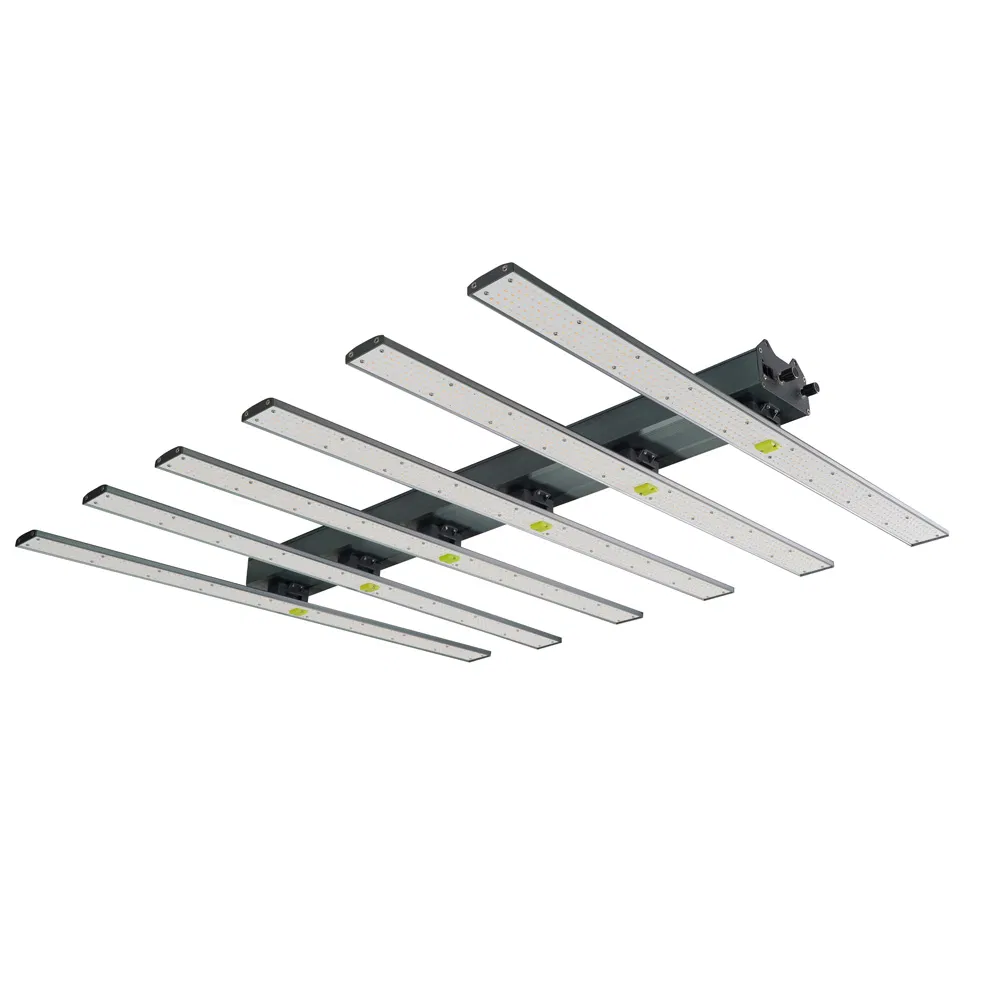

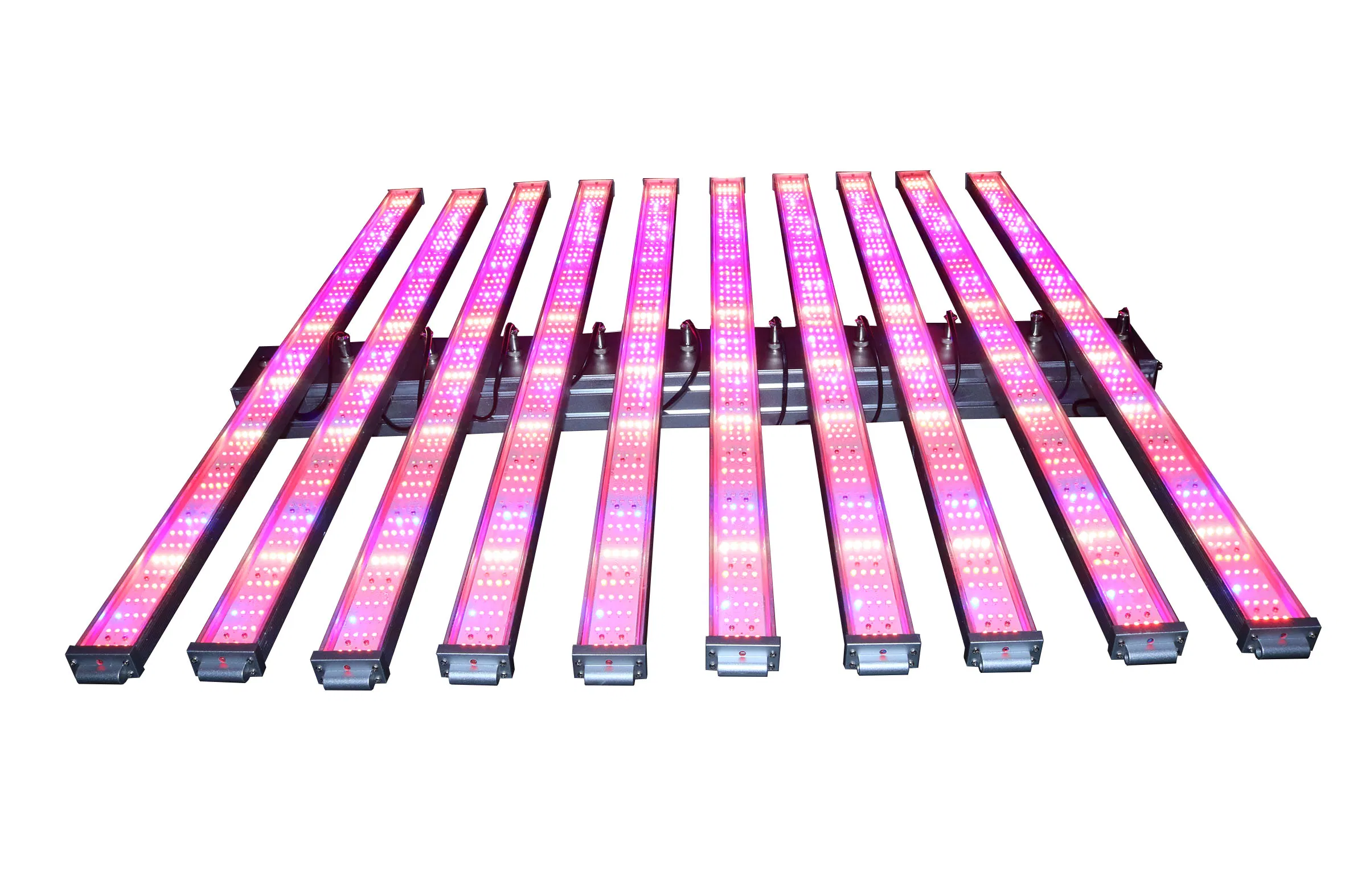

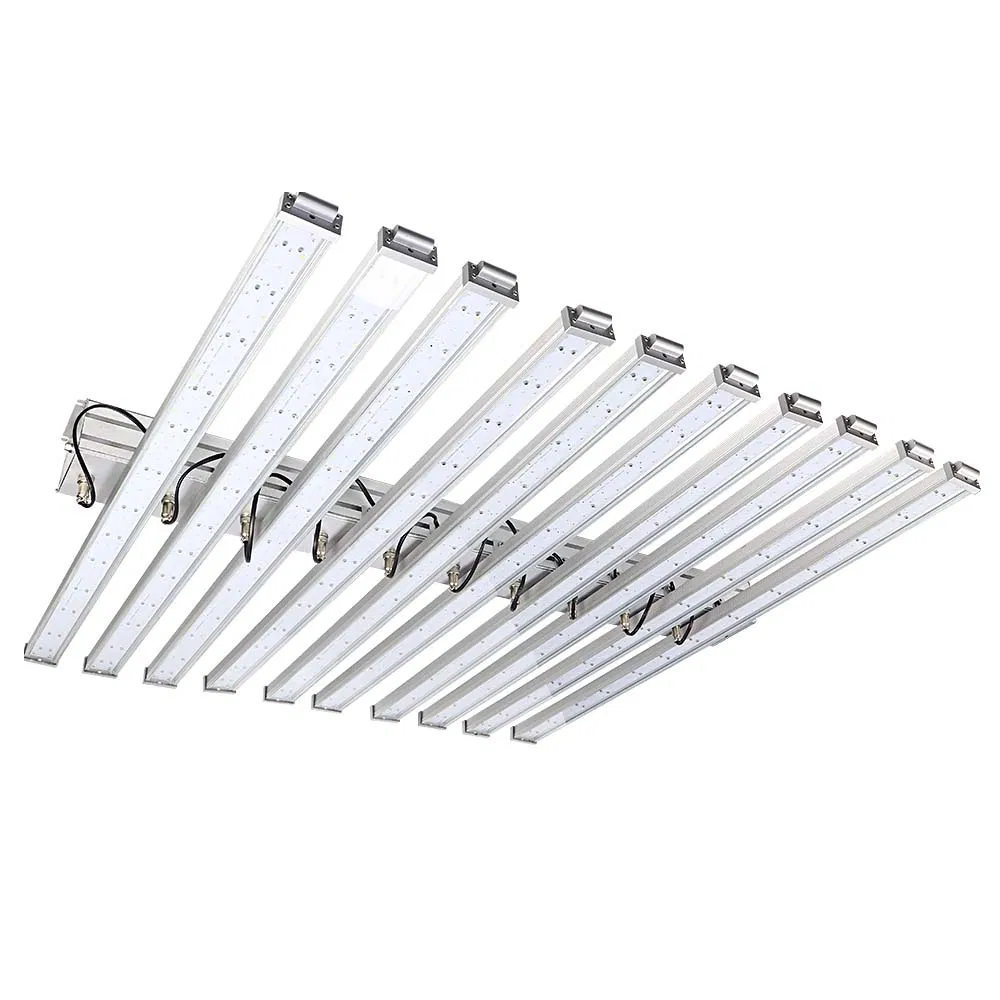

Adjustable LED Plant Grow Bar Light
★
Customizable Spectrum: Optimal full spectrum providing plants at Veg and Flower stages with everything they need from natural sunlight.
★
Full Spectrum Design: Includes Blue, Red, IR, UV, and White light. Expensive IR/UV LEDs promote defense mechanisms, while blue and red are essential for growth.
★
Adjustable Structure: Flexible distance between LED bars allows for different lighting intensities and directions.
★
Thermal Management: Aluminum bar structure enhances heat dissipation and air convection for a longer lifetime.
★
Efficiency: The 600W LED grow light replaces traditional 400W HPS/MH while consuming significantly less power, perfect for 6 square meter areas.

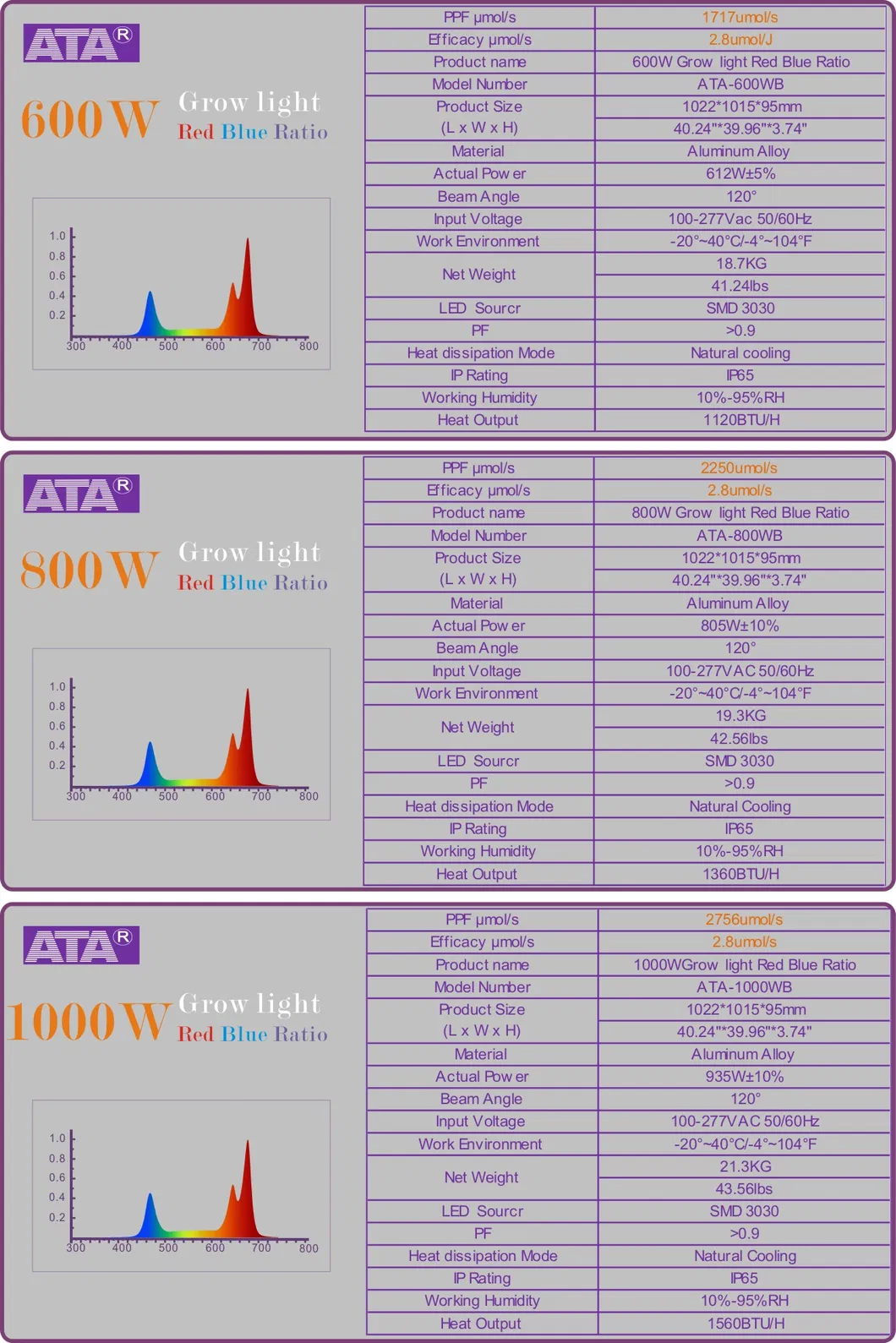

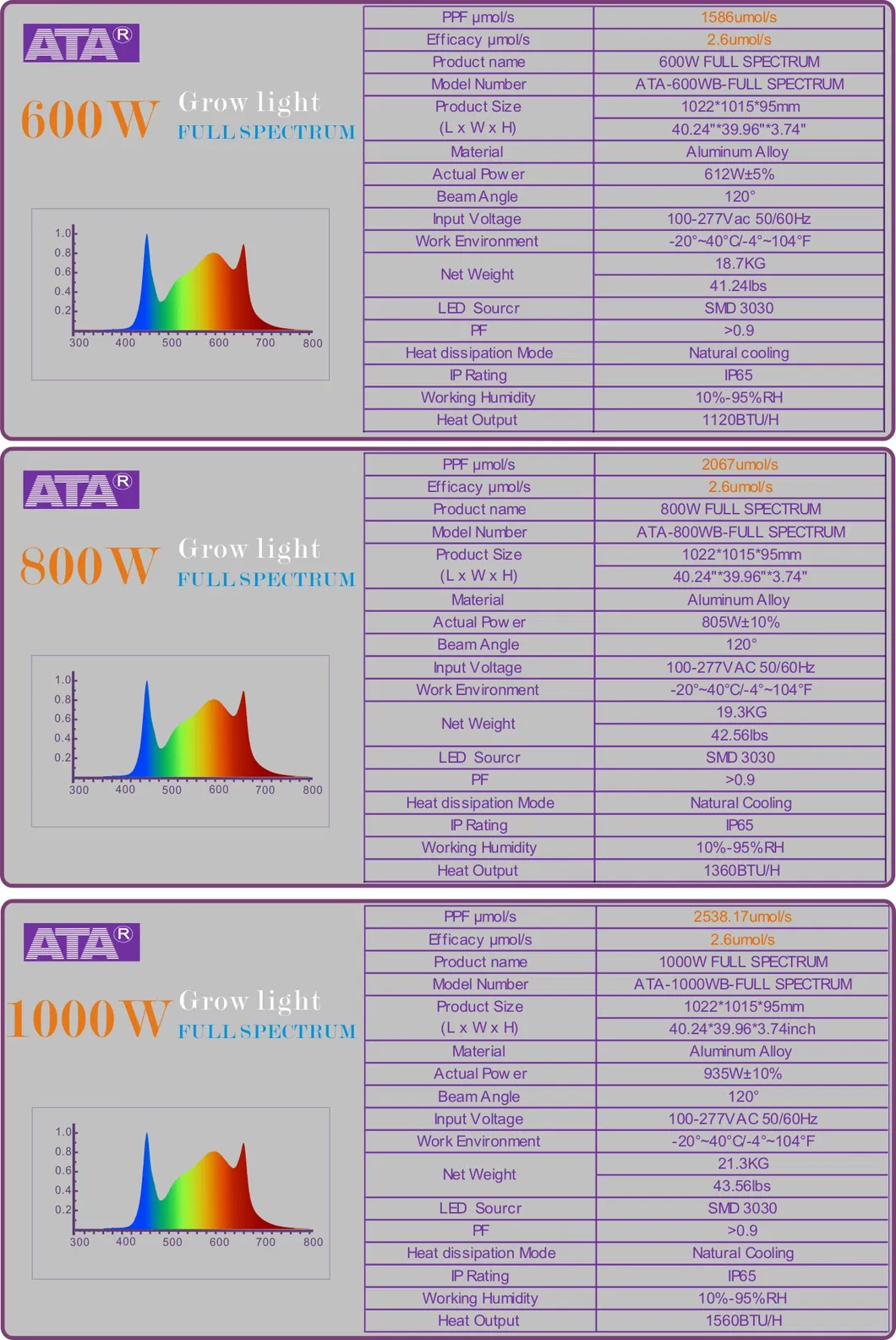

⚙️ Technical Specifications
| Specification |
ATA-M600W |
ATA-M600W-LENS |
ATA-M600W-FULL SPECTRUM |
| Product Size | 1022*1015*95mm | 1022*1015*95mm | 1022*1015*95mm |
| Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Power Consumption | 545W±5% | 545W±5% | 545W±5% |
| Led Type | 3W /LED 3030 | 3W /LED 3030 | 1W /LED 5730 |
| Beam Angle | 120° | 90° | 120° |
| Input Voltage | 100-277Vac | 100-277Vac | 100-277Vac |
| Net Weight | 18.7KG | 18.7KG | 18.7KG |
| PPF µmol/s | 1586 | 1586 | 1586 |
| IP Rating | IP65 | IP65 | IP65 |
| Warranty | 3 Years | 3 Years | 2 Years |
📊 Performance & Dimensions
PPFD Data:

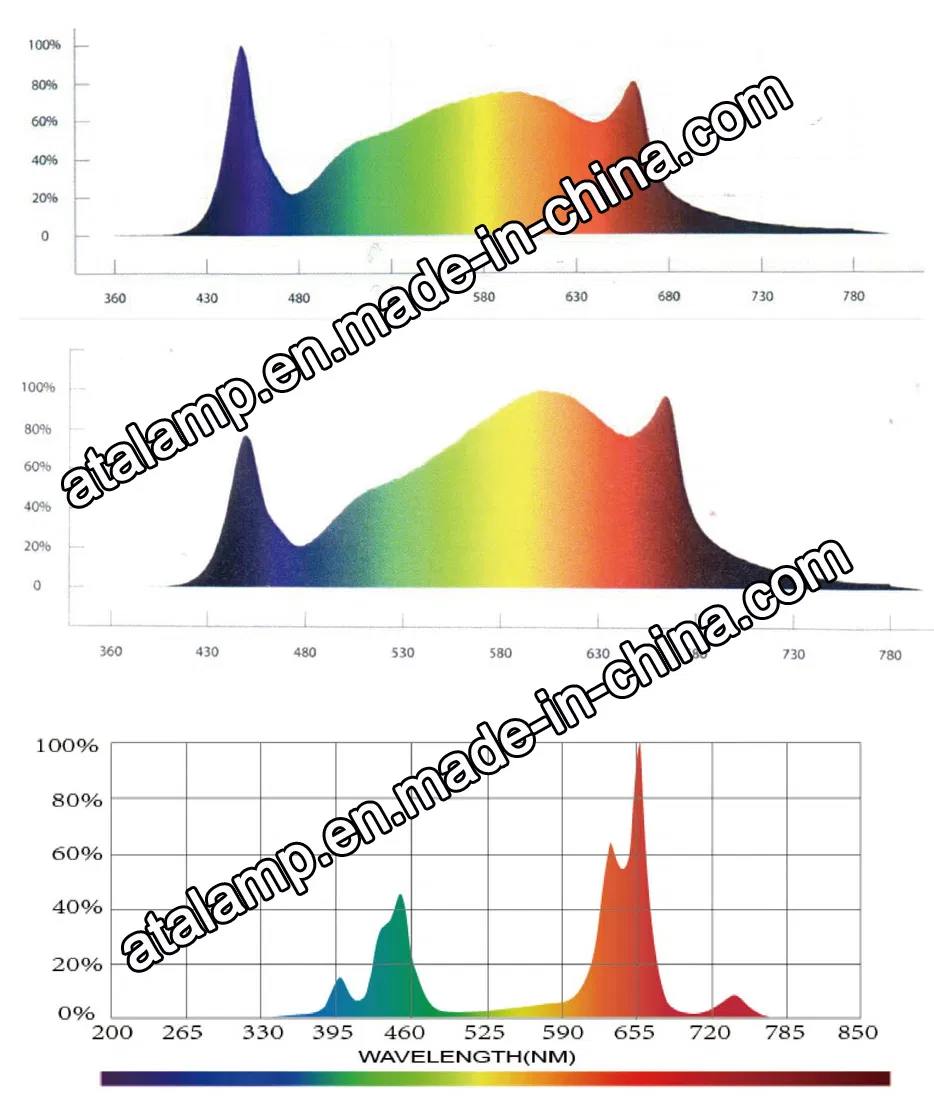

Spectrum Analysis:

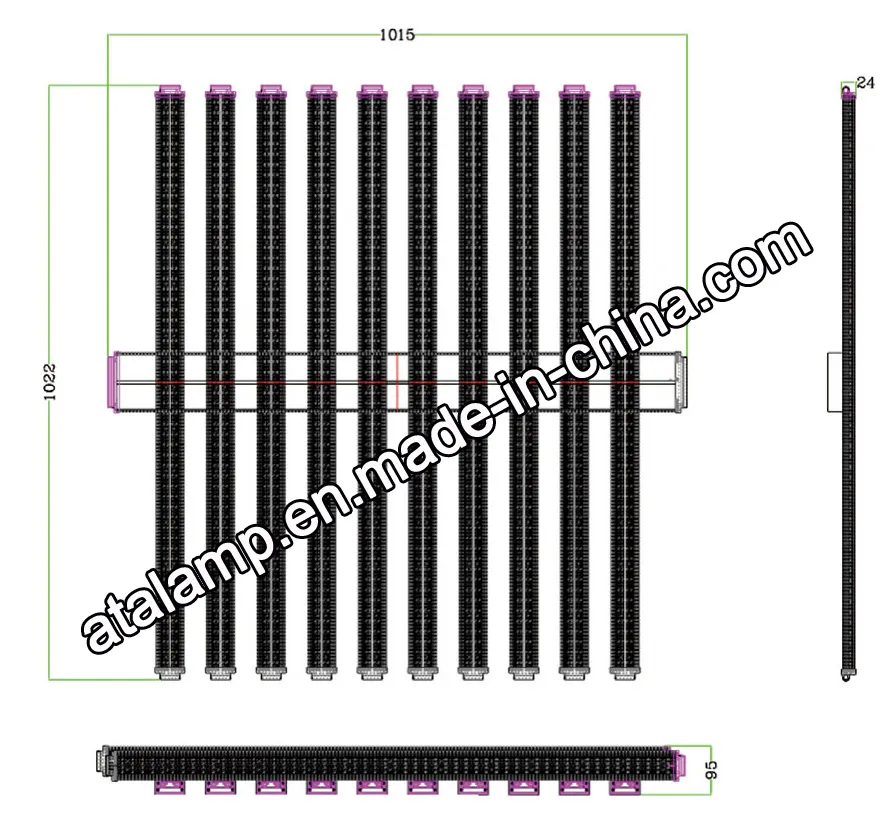

Product Dimensions:

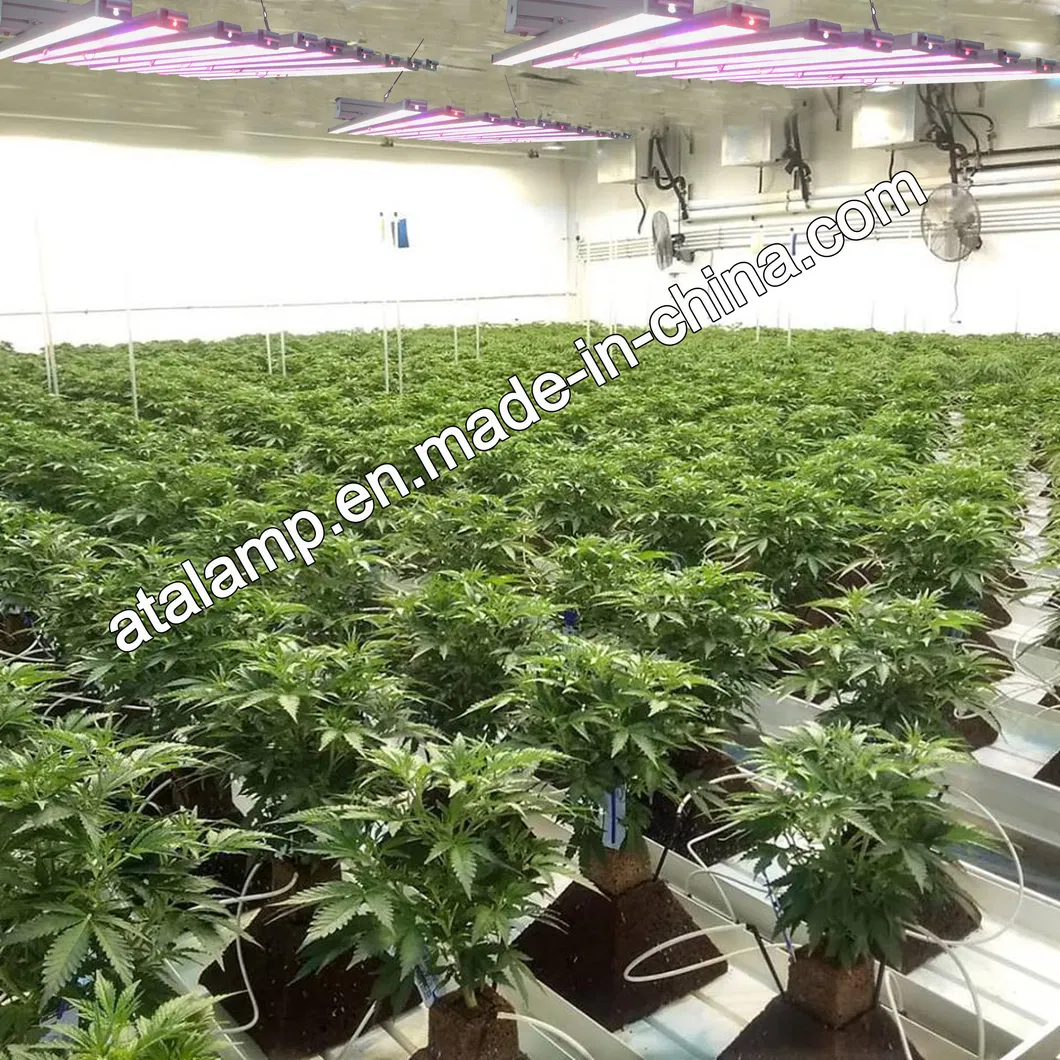

Installation Guide:

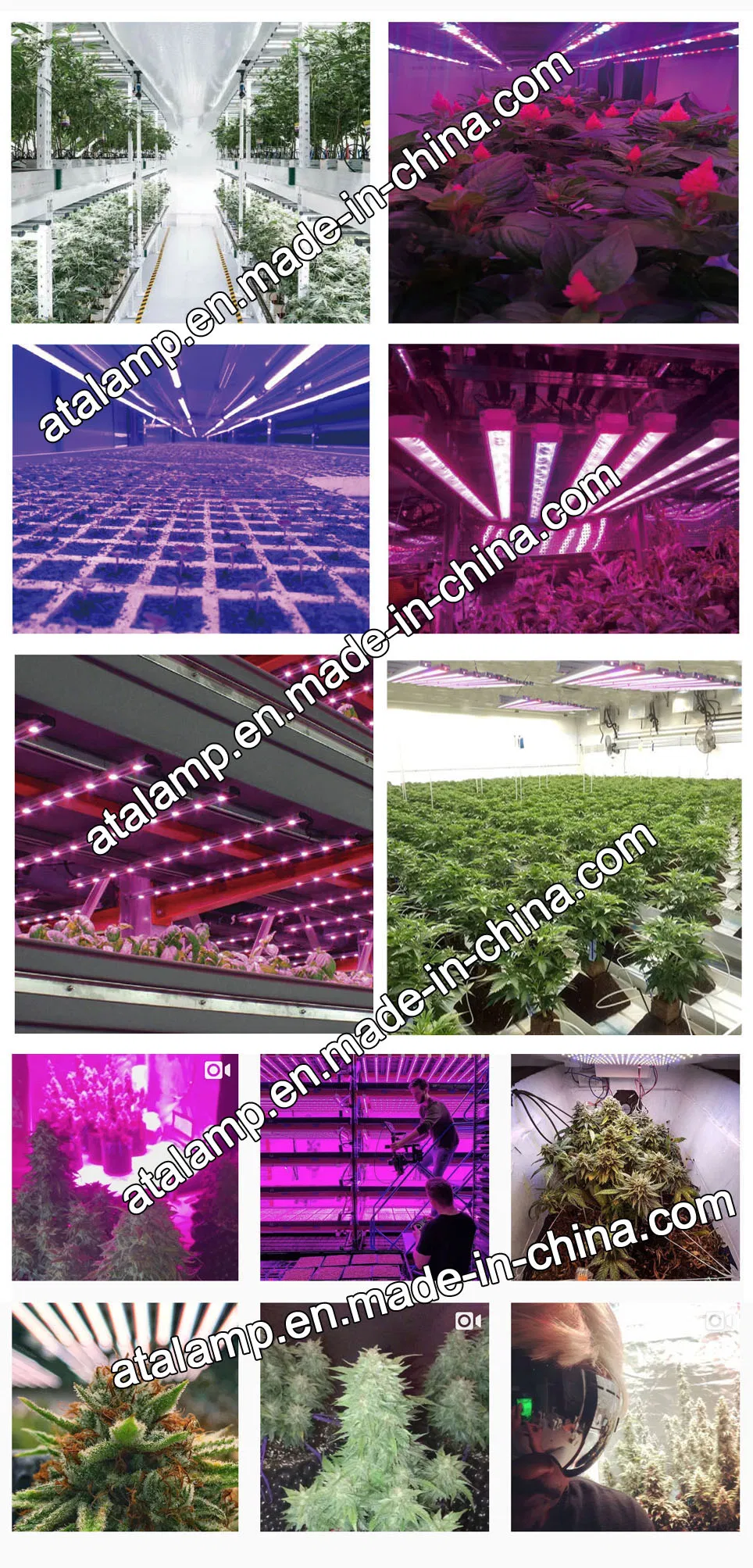

🌱 Applications
Fruit, Vegetable, Flowers, Special Crops, Leafy, Fruit, Seedling, propagation, mixed-light, supplemental, complete indoor or greenhouse, Medical plants, indoor garden, pot plants, garden, breeding, farmland, spray plant, greenhouse plants, pipeline cultivation, flowering, etc.
🛠️ User Manual & Quality Control
- Switch off power supply before any installation or maintenance work.
- Ensure the product is mounted on a stable, even, and tilt-fixed background.
- Installation must be performed by a qualified electrical expert.
- Aging Test: 100% of lamps undergo a 48-hour aging test.
- Lighting Test: 100% functional test before packing.
- Drop Test: Ensures protection during transport.
❓ Frequently Asked Questions (FAQ)
1. What are the main advantages of this LED Grow Bar?
It features a customizable full spectrum, adjustable bar distance for light intensity control, and superior heat dissipation using an aluminum alloy structure.
2. Can this light replace traditional HPS/MH systems?
Yes, the 600W LED model can replace a 400W HPS/MH while consuming only 108W, providing more effective coverage and energy savings.
3. What is the expected lifespan and warranty?
The light has a lifespan of 50,000 hours and comes with a 3-year warranty for most models, ensuring long-term reliability.
4. Is the spectrum suitable for all growth stages?
Absolutely. The full spectrum includes Blue, Red, IR, and UV light, supporting plants from seedling/veg stages through to flowering and fruiting.
5. How is the heat managed in this high-power light?
It utilizes an aluminum alloy bar structure for passive cooling or optional water cooling, creating an efficient thermal management system.
6. What is the protection rating for wet environments?
This LED grow light has an IP65 rating, making it suitable for high-humidity environments like greenhouses and indoor gardens.
