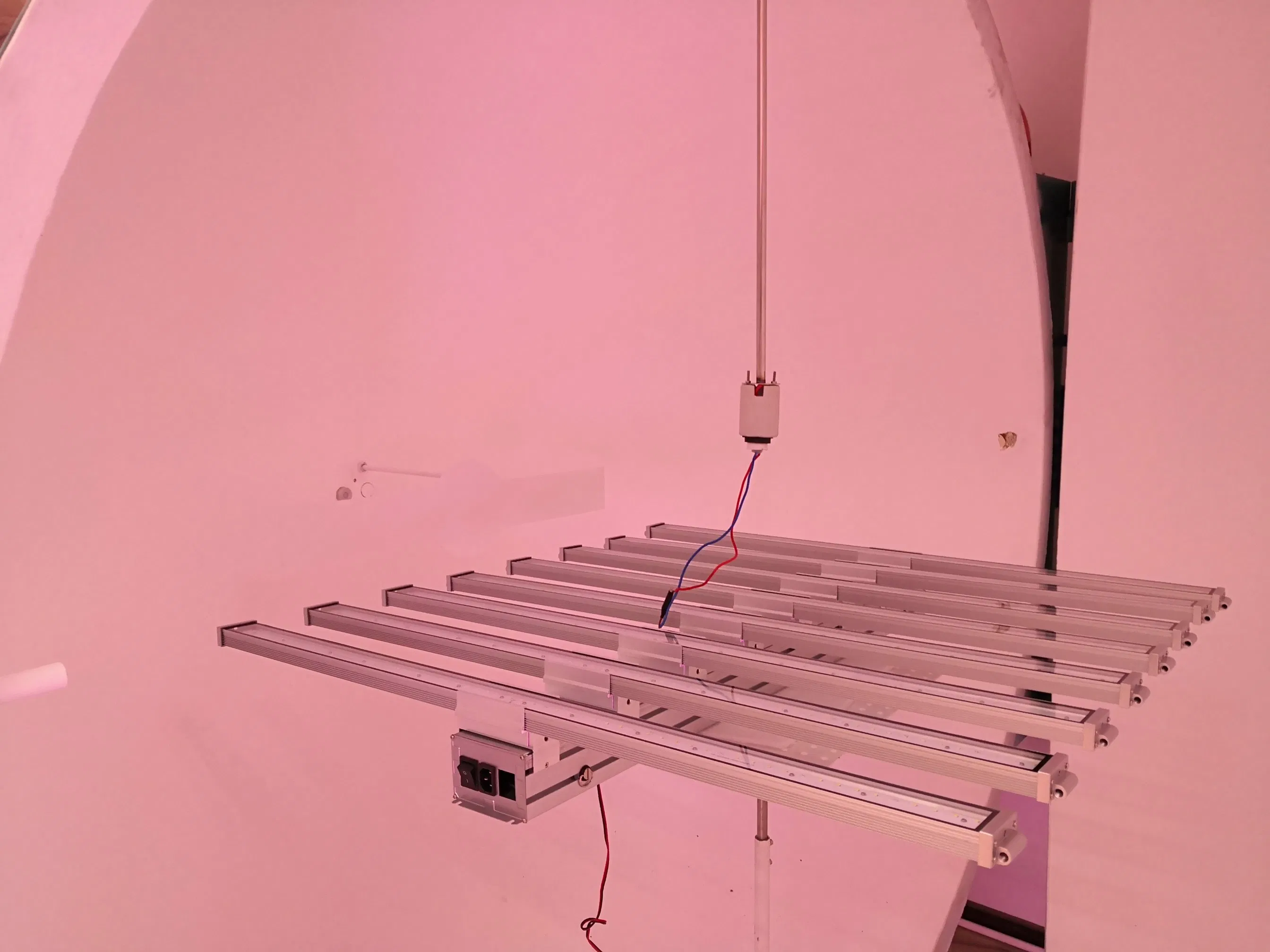

Premium Indoor LED Grow Light Stand for Medicinal Plants

Customization: Available
IP Rating: IP65
Emitting Color: Customized

Product Description

Basic Specifications

Model NO.
ATA-1000WB-FD
Input Voltage
AC100-277V
Actual Power
800W
Shape
Bar
Warranty
3 Years
Housing Material
Aluminum
Life
50000h
LED Chips
Epiled
LED Type
3W/LED 3030 LED
LED Quantity
3900 pcs
PPF
1834.08umol/S
Efficiency
2.4umol/S
Cooling
Passive or Water Cooling
Spectrum
Full Spectrum (Red/Blue/UV/IR)
IP Rating
IP65
Certification
CE, RoHS, FCC, Energy Star, SAA

Product Advantages

💡
Customizable Spectrum

Optimal full spectrum providing plants at Veg and Flower stages with natural sunlight benefits.

☀️
Full Spectrum Design

Includes Blue, Red, IR, and UV light. IR/UV promotes defense mechanisms; Blue/Red essential for growth.

📏
Adjustable Bars

Modify distance between LED bars for different lighting intensities and directions.

❄️
Thermal Management

Aluminum structure ensures excellent heat dissipation and air convection for long lifespan.

Compare to HPS/MH: The 600W LED grow light can replace traditional 400 watt HPS/MH while consuming significantly less energy. It offers more effective coverage, perfect for a growing area of 6 square meters at 1m height.

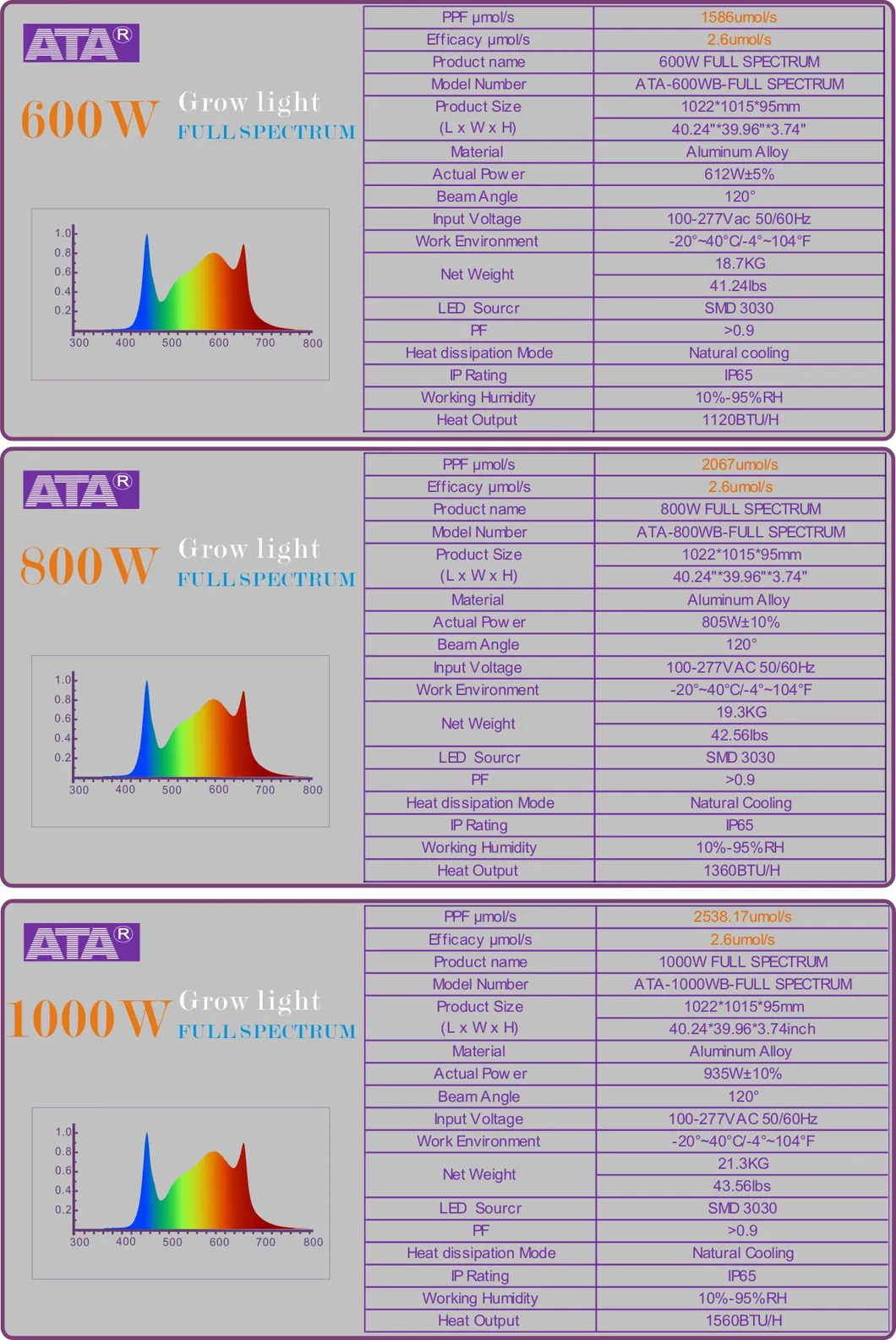

LED Grow Light Bar

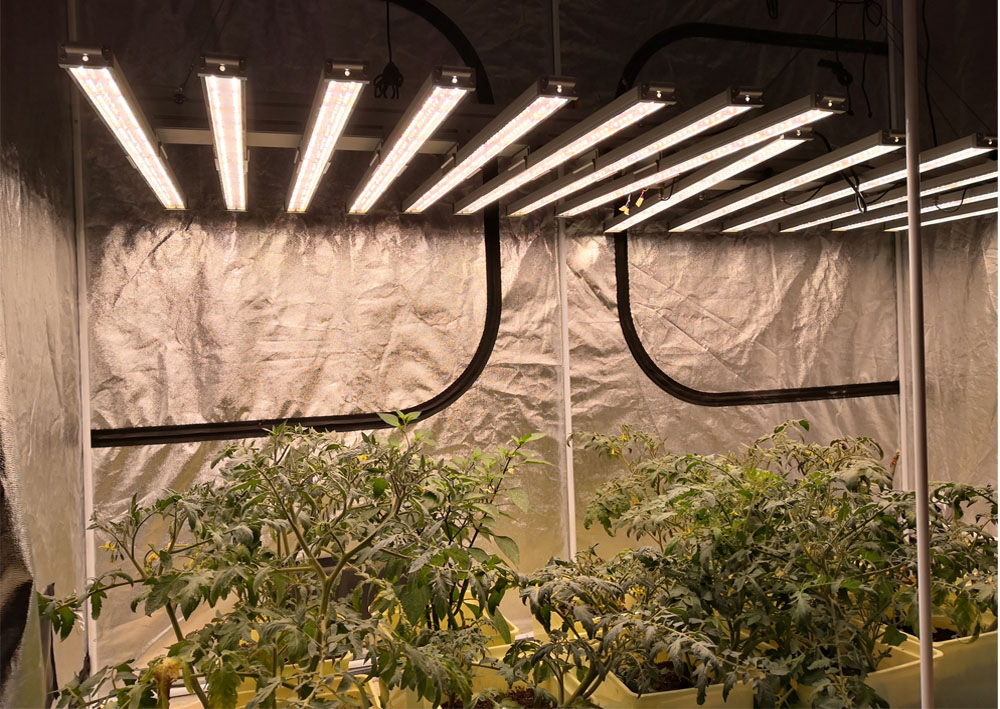

Indoor Grow Setup

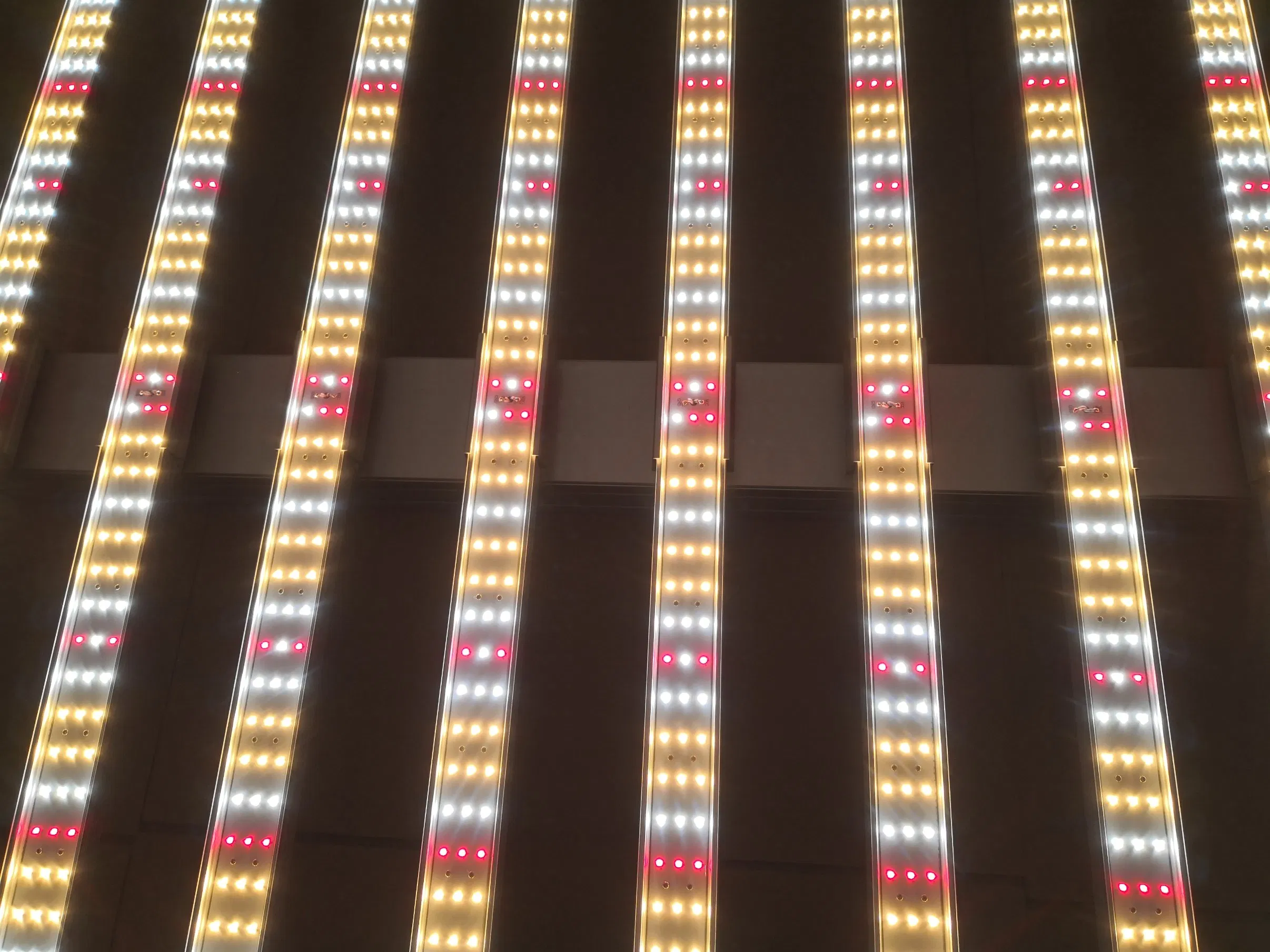

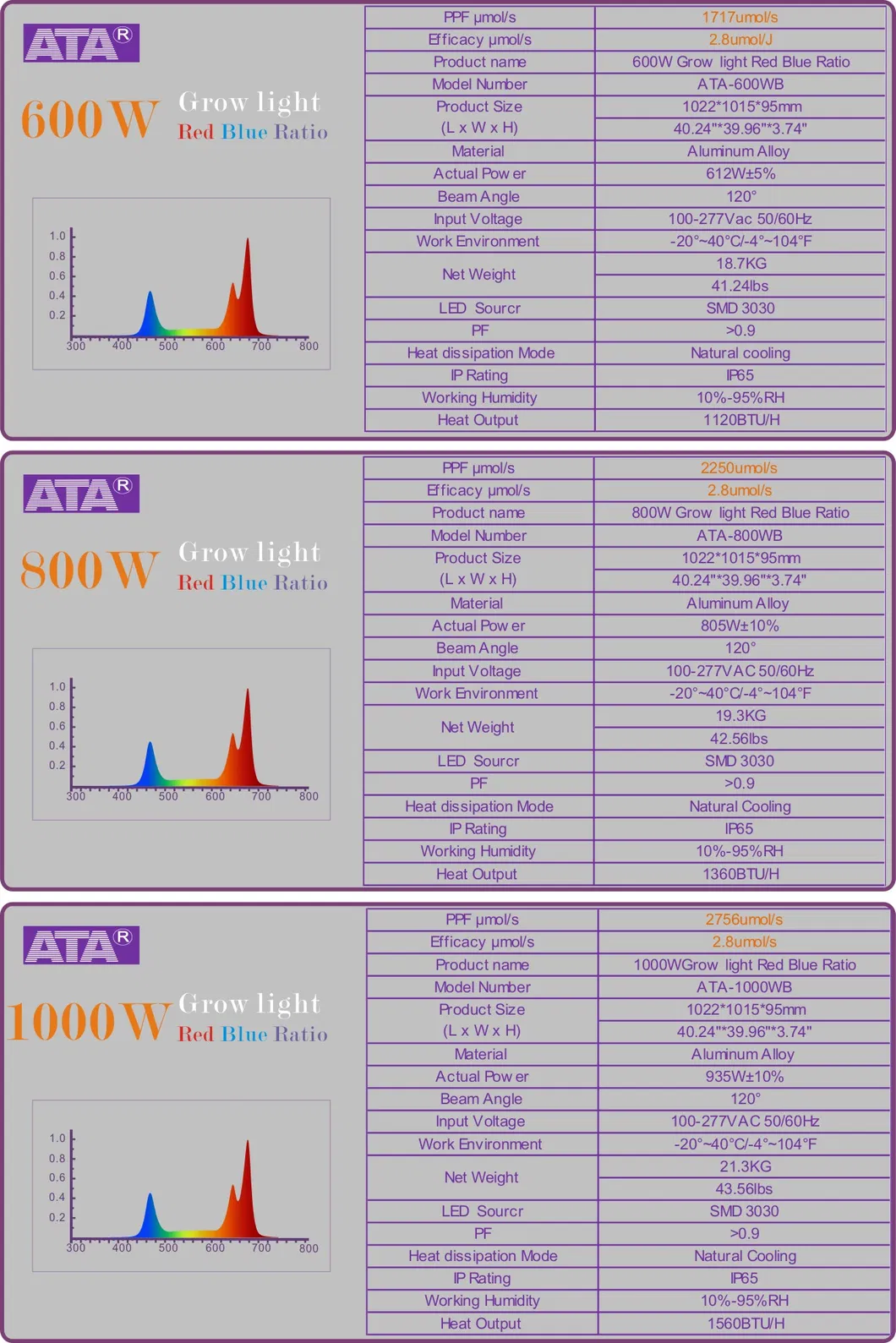

LED Bar Detail
Plant Grow Light Stand

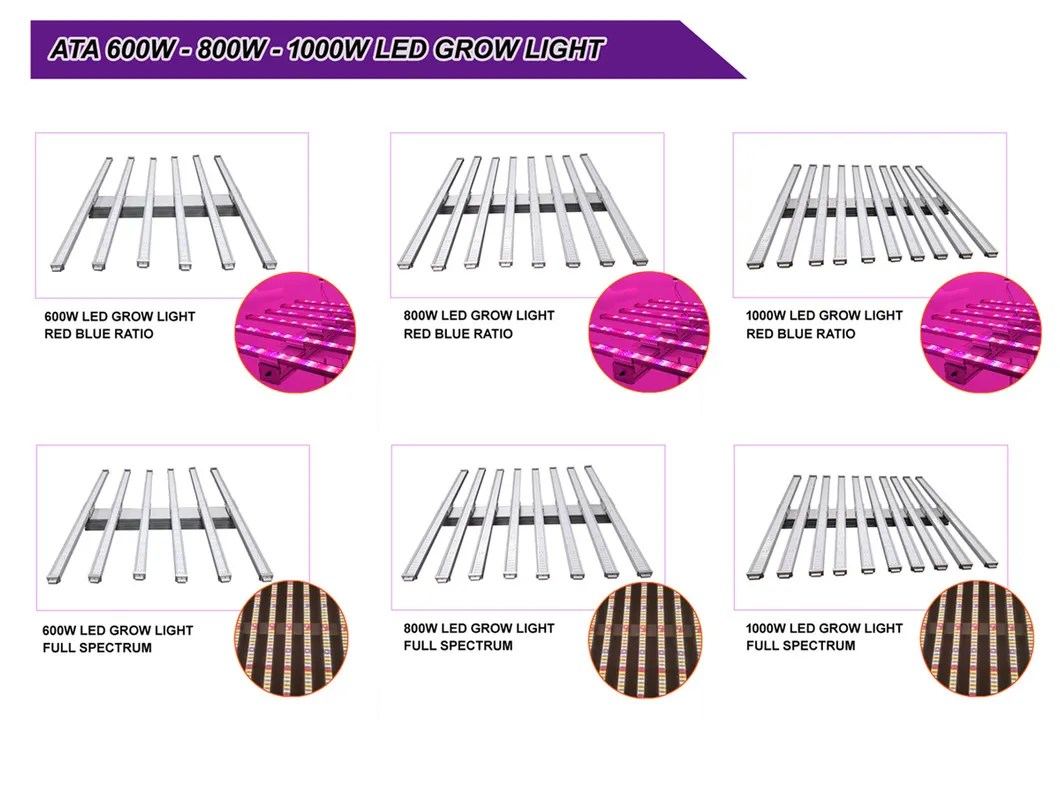

Installation Detail

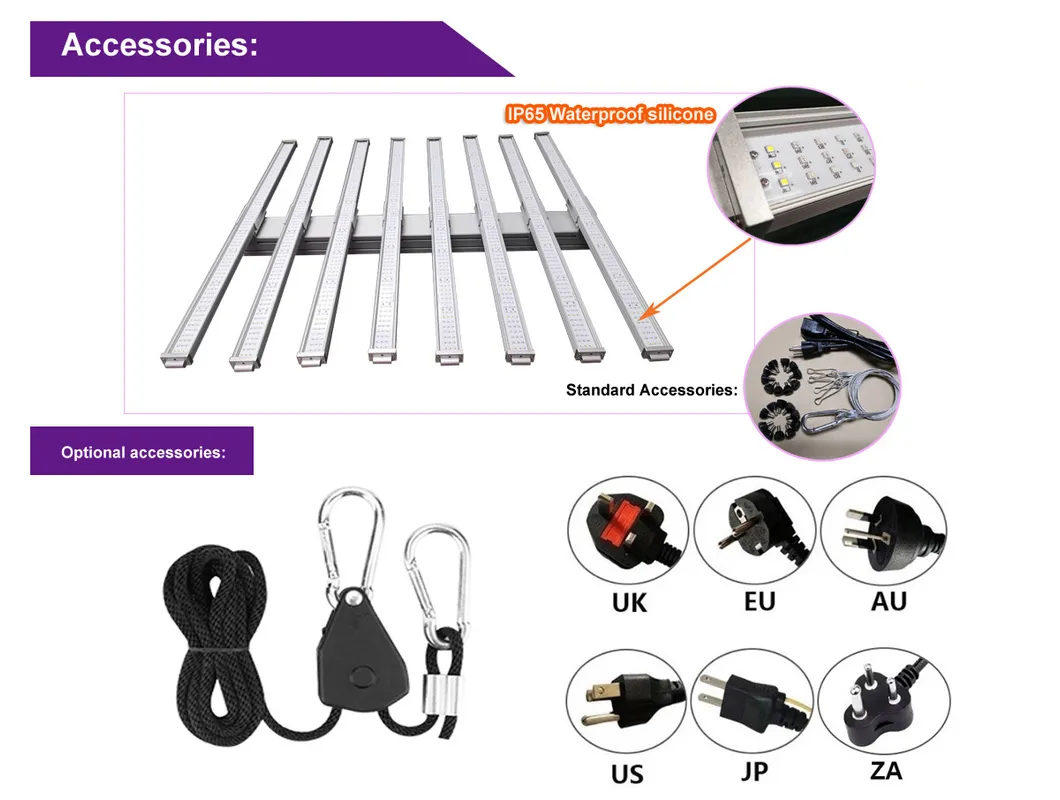

Water Cooling Option

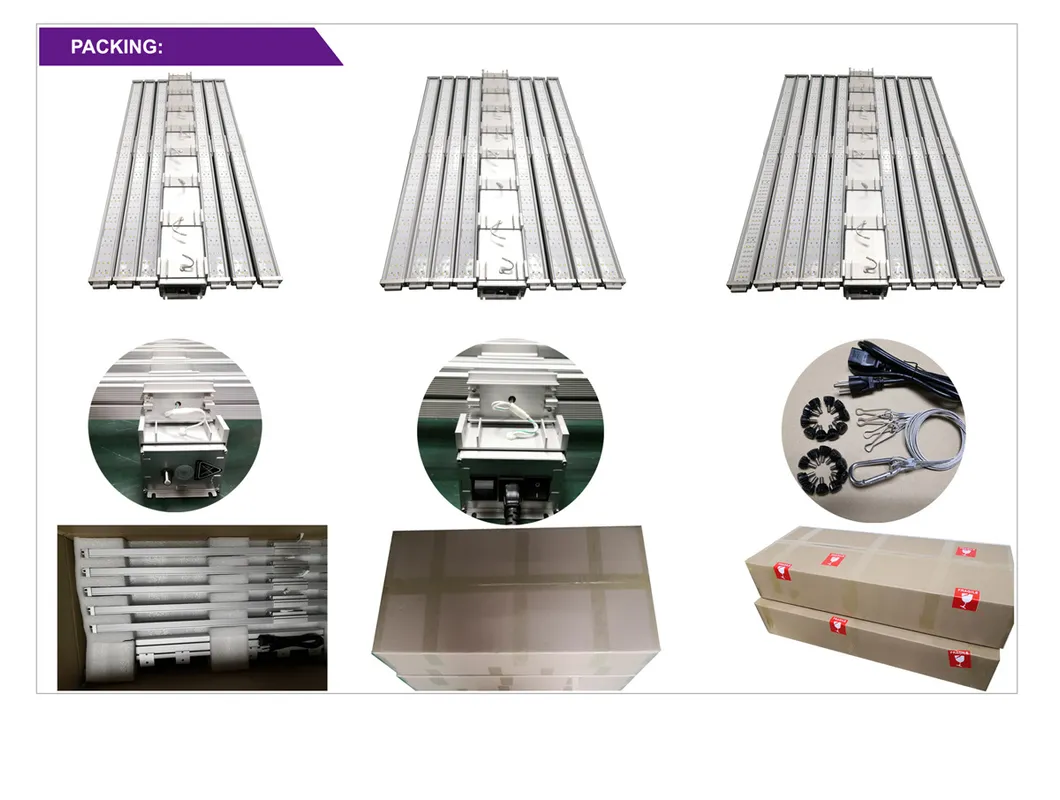

LED Components

Technical Specifications Comparison

Parameter ATA-M600W ATA-M600W-LENS ATA-M600W-FULL
Size (mm)1022*1015*951022*1015*951022*1015*95
Power Consumption545W±5%545W±5%545W±5%
LED Type3W 3030 LED3W 3030 LED1W 5730 LED
Beam Angle120°90° (with lens)120°
Net Weight18.7KG18.7KG18.7KG
PPF (µmol/s)158615861586
IP RatingIP65IP65IP65
Warranty3 Years3 Years2 Years

Performance Data & Dimensions

PPFD Distribution:

PPFD Chart

Spectrum Analysis:

Spectrum Chart

Product Dimensions & Installation:

Dimensions

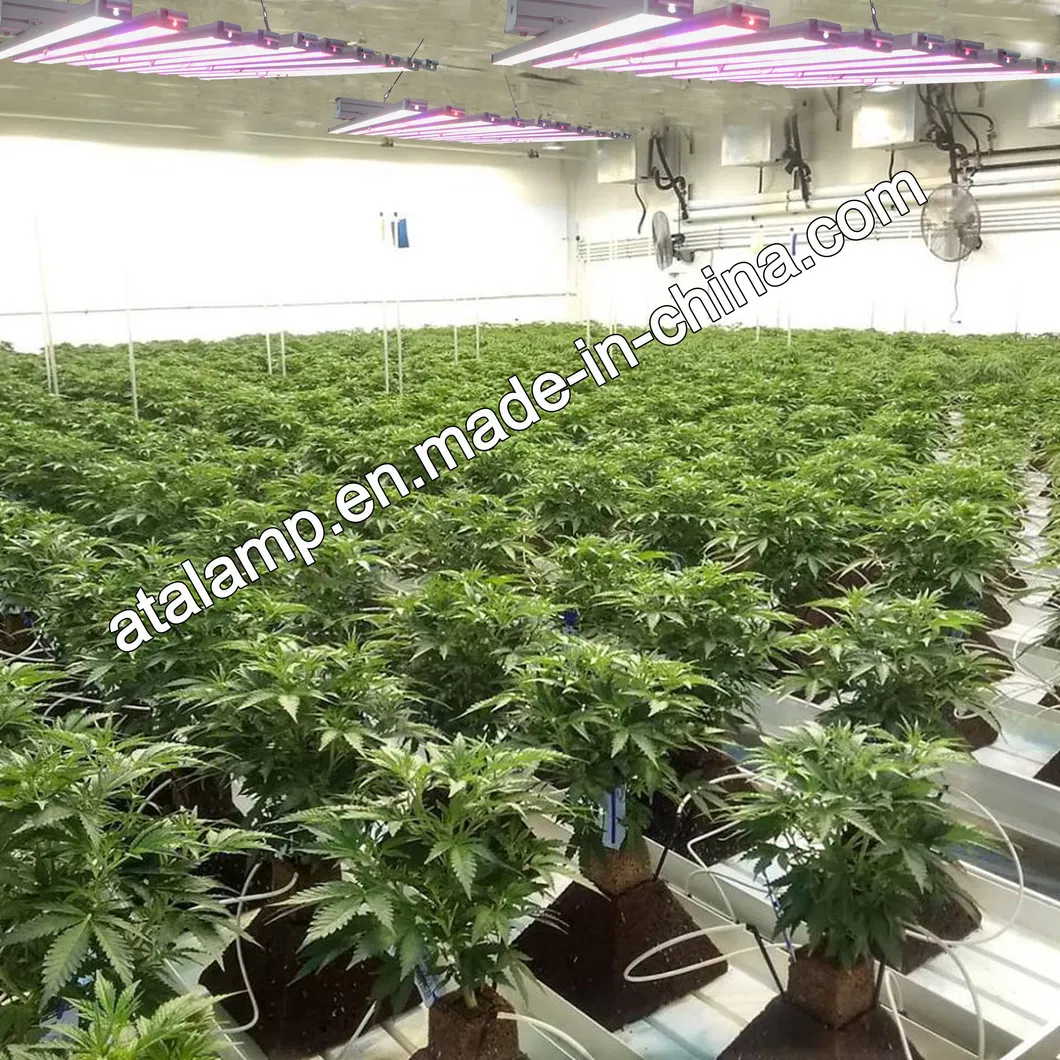

Suspending Installation

Wide Application

Suitable for Fruit, Vegetables, Flowers, Special Crops, Seedlings, Greenhouse plants, Medical plants, Indoor gardens, Pipeline cultivation, and more.

Application Scenarios

Quality Control & Safety

  • ✔️ Stability Test: 100% aging test for at least 48 hours.
  • ✔️ Lighting Test: 100% functionality check before packing.
  • ✔️ Drop Test: Ensures protection during transit.

User Notice:

Switch off power before work. Ensure the product is mounted on a stable background. Installation should be performed by an expert familiar with electrical directives.

Frequently Asked Questions

What makes the spectrum of this grow light special?
It features a professional full spectrum including Blue, Red, IR, and UV. This combination mimics natural sunlight to promote plant defense mechanisms and essential growth at all stages.
Can the physical layout of the bars be adjusted?
Yes, the bars are adjustable. You can change the distance between LED bars to customize the lighting intensity and direction based on your specific plant requirements.
How does this LED light compare to traditional HPS systems?
The 600W/800W LED series is significantly more efficient. For example, our 600W model can replace a 400W HPS while providing better coverage and consuming less actual power.
Is this grow light suitable for humid greenhouse environments?
Yes, the light is IP65 rated and designed to work in environments with 10% to 95% relative humidity, making it perfect for indoor gardens and greenhouses.
What are the cooling methods used for heat management?
We utilize a high-quality aluminum structure for natural passive cooling, and the design also supports water cooling options for advanced thermal management.
What is the expected lifespan and warranty?
The light has a rated lifespan of 50,000 hours. We offer a 3-year warranty for the standard models to ensure long-term reliability for your cultivation.
