📋 Basic Information
Cooling Methods
Passive Cooling or Water Cooling

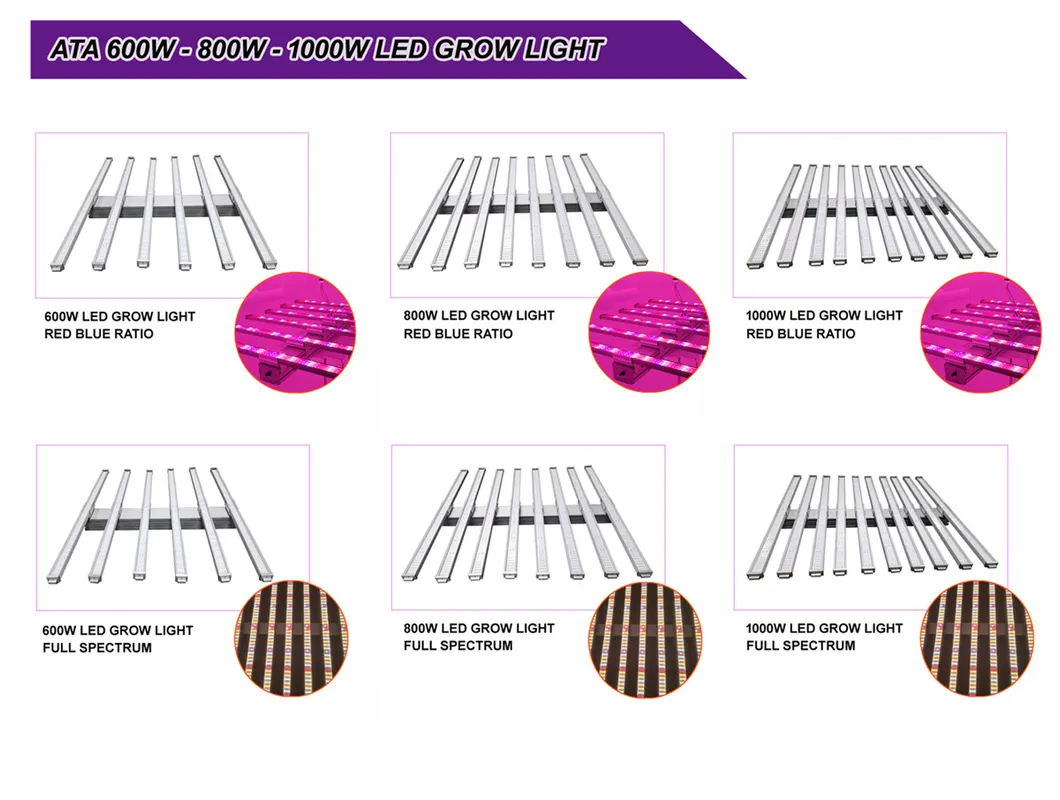

Spectrum
Red Blue Ratio, Full Spectrum
Lighting Area
1m High 6.0 Square Meters
Certification
CE, RoHS, CCC, GS, Energy Star, FCC, SAA, NOM, PSE, EMC, LVD
💡 Product Description

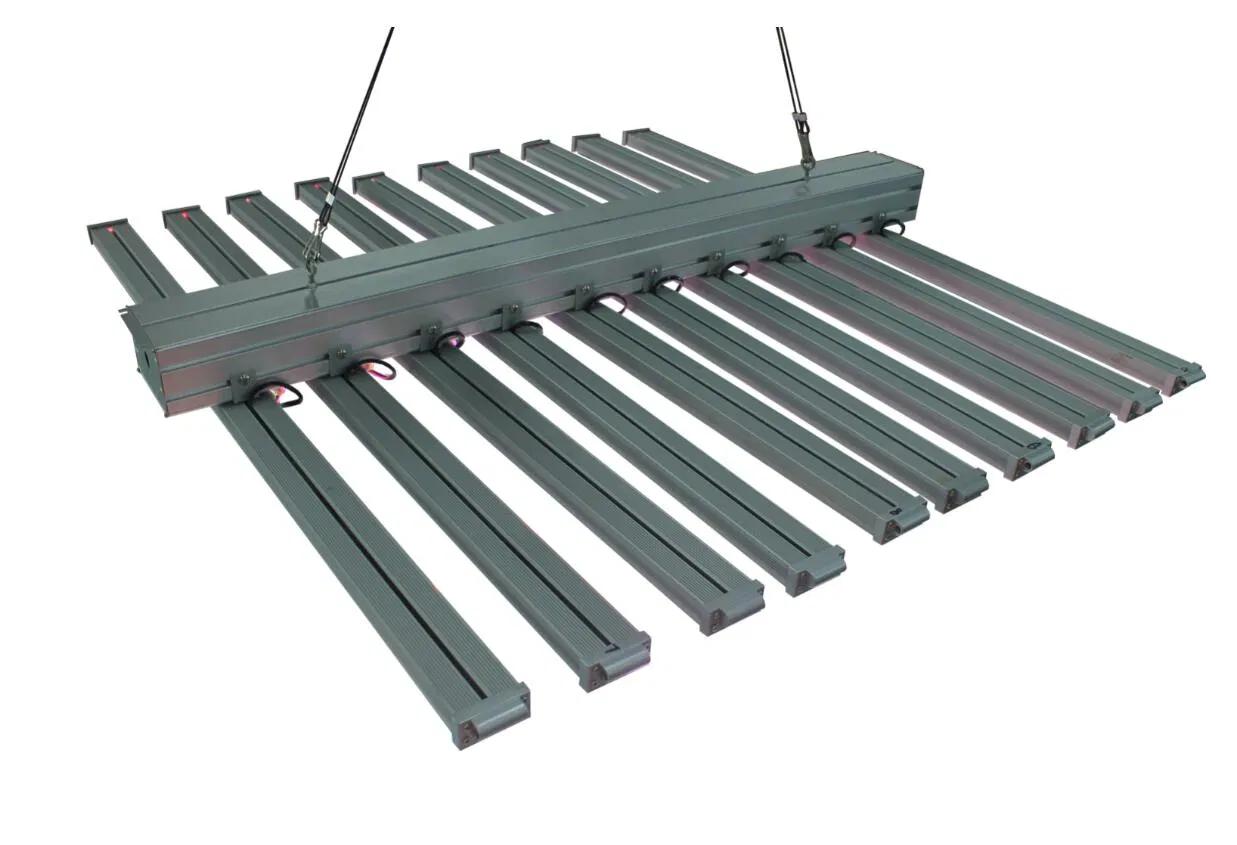

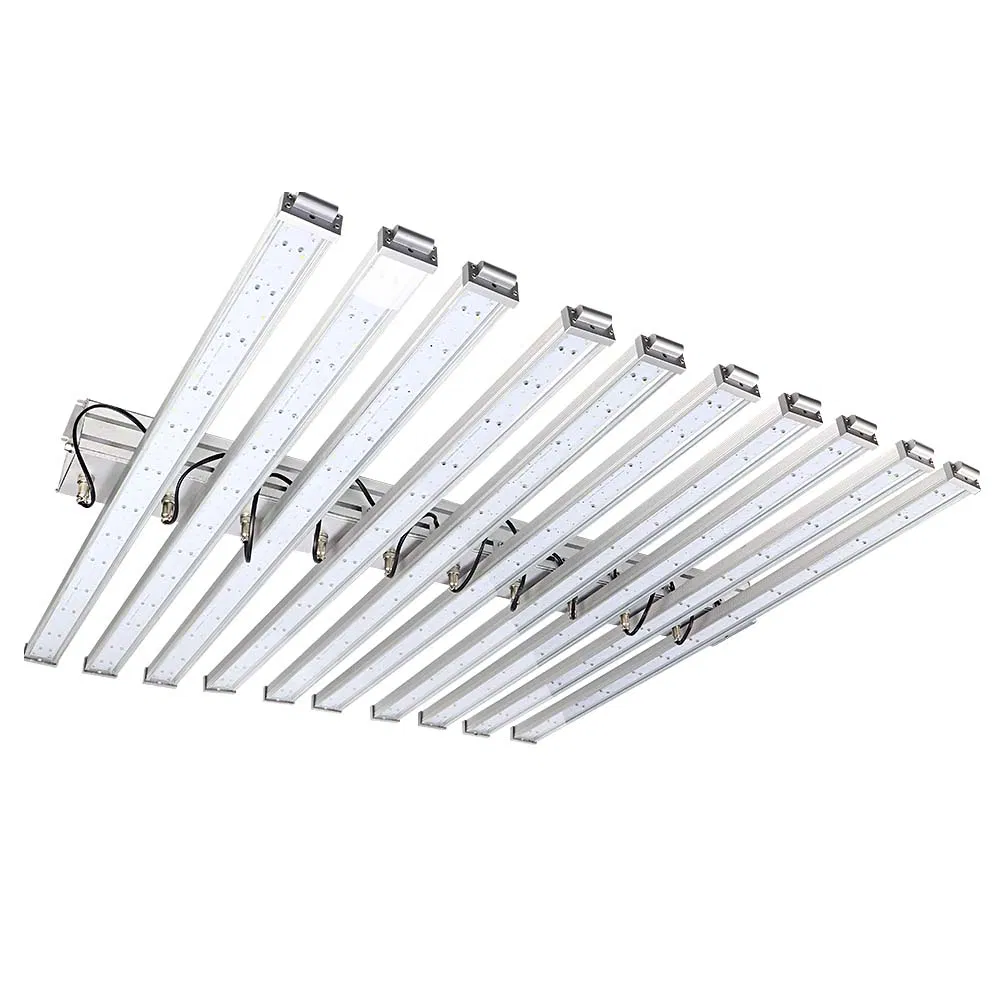

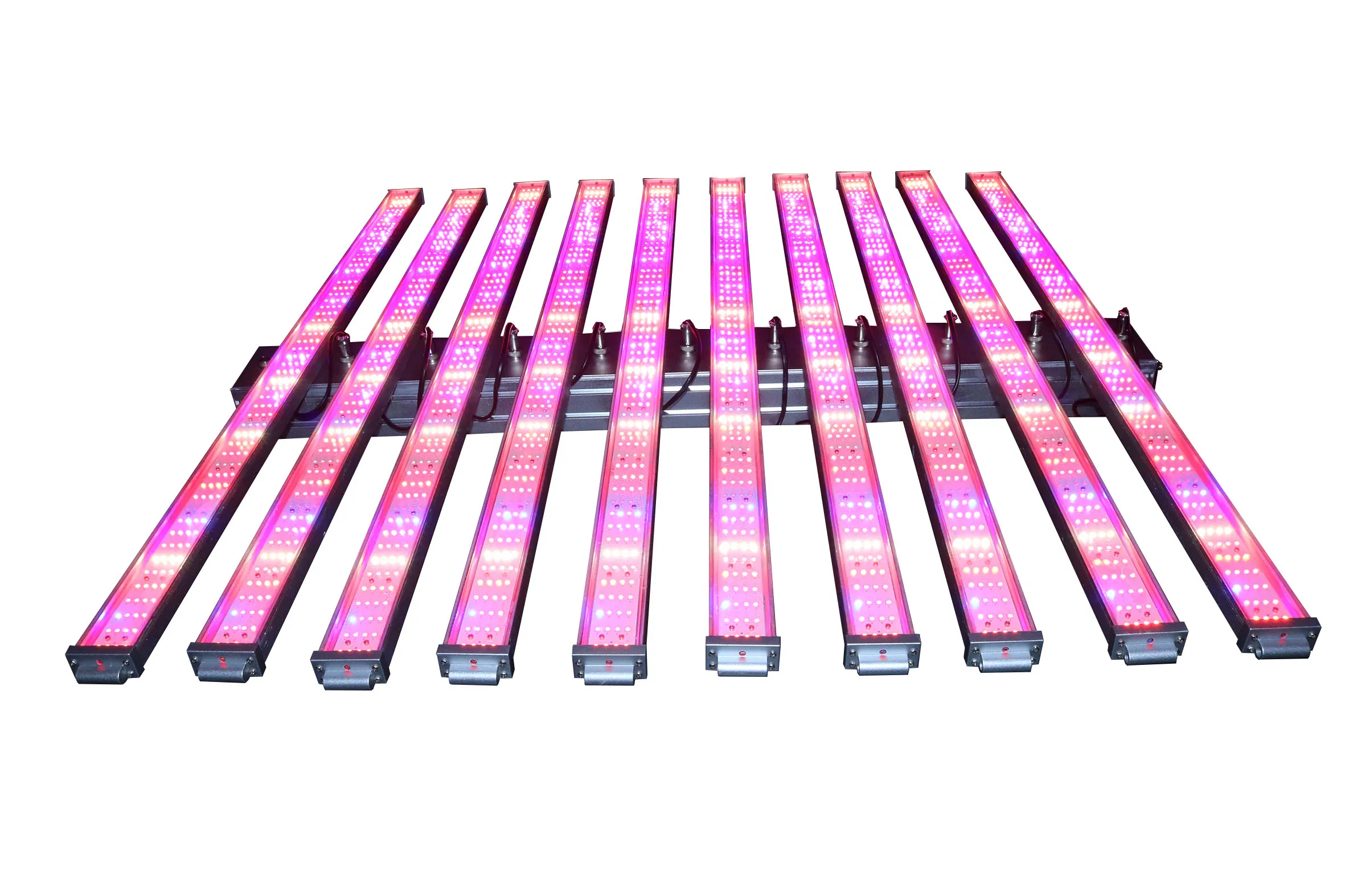

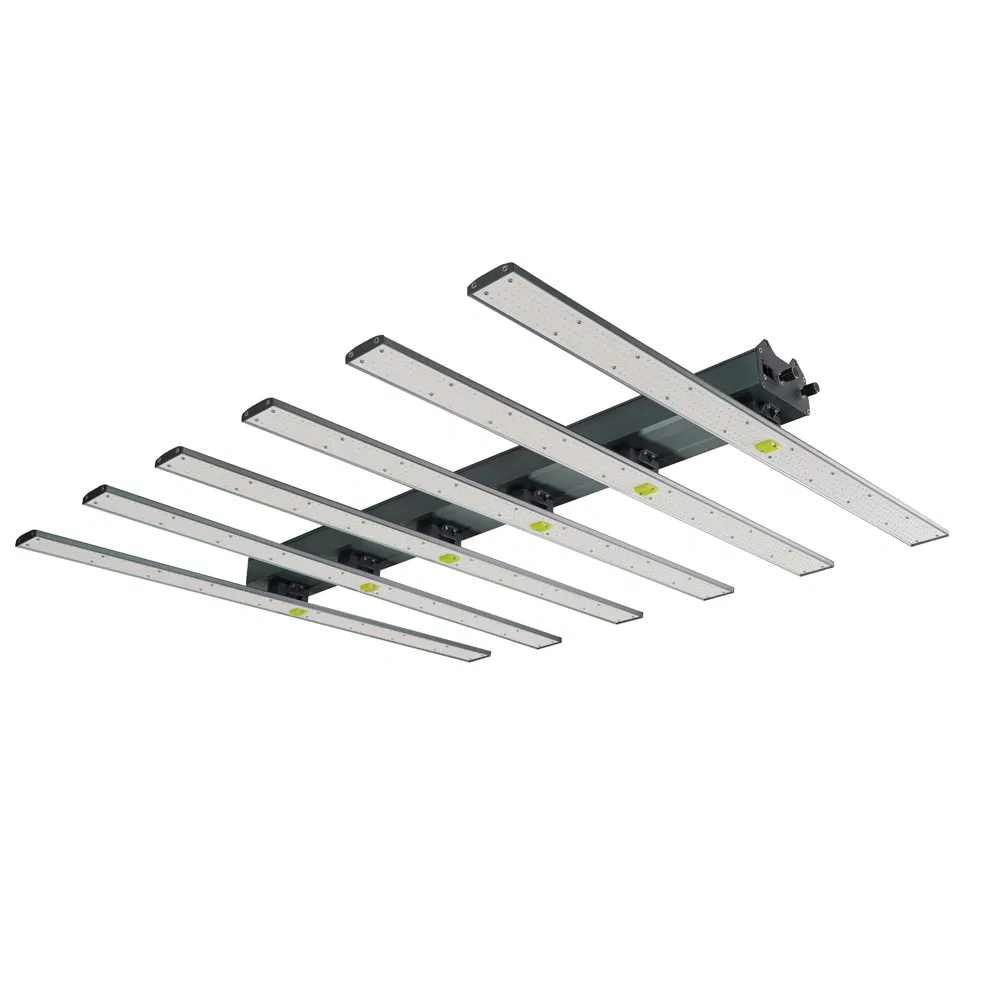

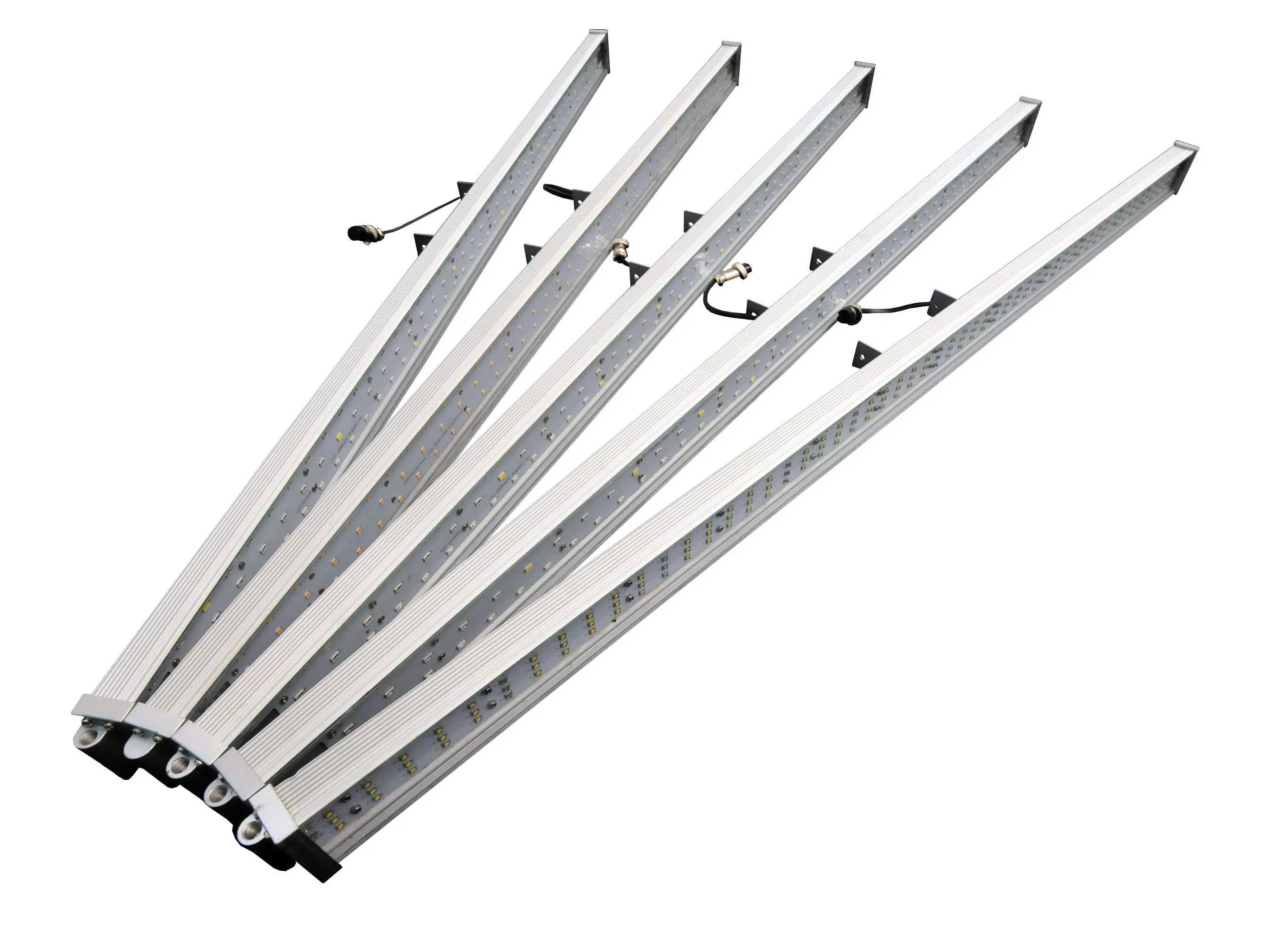

Adjustable LED Plant Grow Bar Light
🌟 Customize LED Spectrum
The optimal full spectrum which provides plants Veg and Flower all stages with everything they desire in the natural sunlight.
🌈 Full Spectrum Design
Promotes plant growth with universal Blue, Red, IR, UV, and white light. IR and UV LEDs promote defense mechanisms, while blue and red are essential for growth.
⚙️ Adjustable Bar Structure
Adjustable distance between LED bars for different lighting intensity and direction. Aluminum structure ensures excellent heat dissipation and thermal management.
🔍 Optical Lens Modular
Convenient to assemble and install with modular optical lens technology.
⚡ Energy Efficiency
Compare TO HPS/MH: The 600W LED grow light can replace traditional 400 watt HPS/MH while consuming only 108 watts! Perfect for a growing area at 1m height 6 square meters.

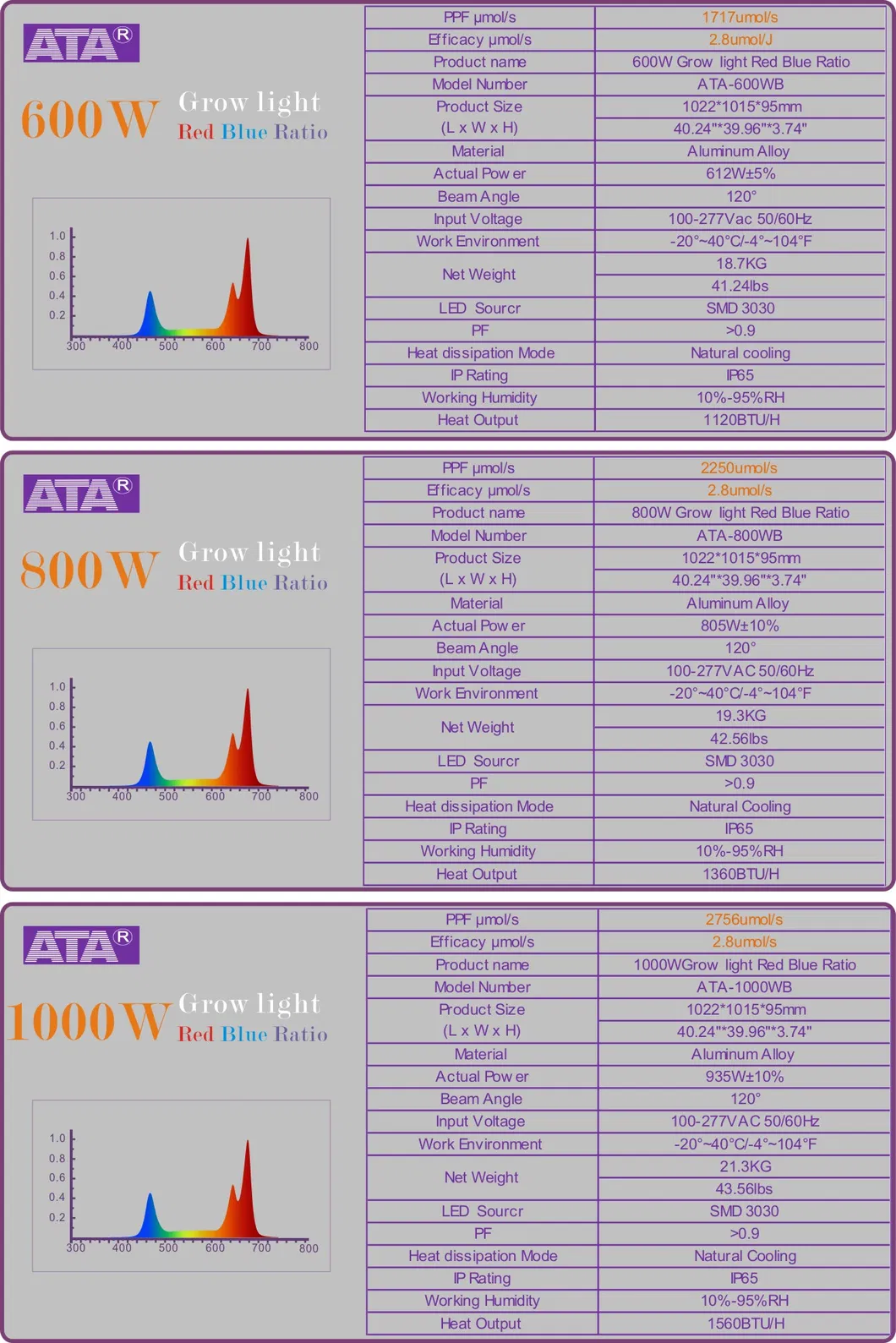

📊 Technical Specifications
| Specification |
ATA-M600W |
ATA-M600W-LENS |
ATA-M600W-FULL SPECTRUM |
| Product Size | 1022*1015*95mm | 1022*1015*95mm | 1022*1015*95mm |
| Power Consumption | 545W±5% | 545W±5% | 545W±5% |
| LED Type | 3W /LED 3030 | 3W /LED 3030 | 1W /LED 5730 |
| Beam Angle | 120° | 90° (with lens) | 120° |
| Input Voltage | 100-277Vac 50/60Hz |
| IP Rating | IP65 |
| PPF (µmol/s) | 1586umol/s |
| Warranty | 3 Years | 3 Years | 2 Years |
📈 Performance Data

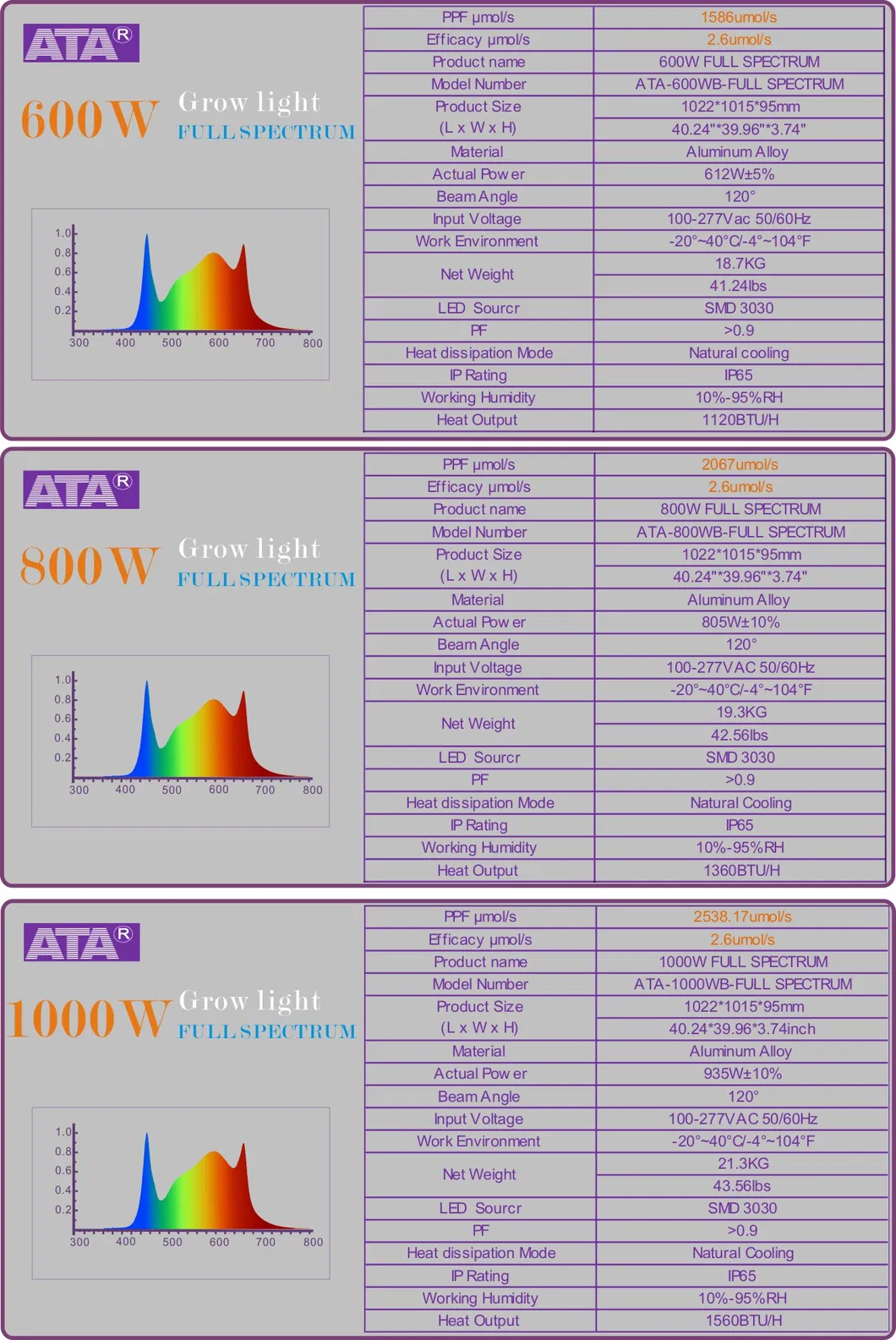

PPFD Chart
Spectrum Analysis
📐 Dimensions & Installation
Product Dimensions

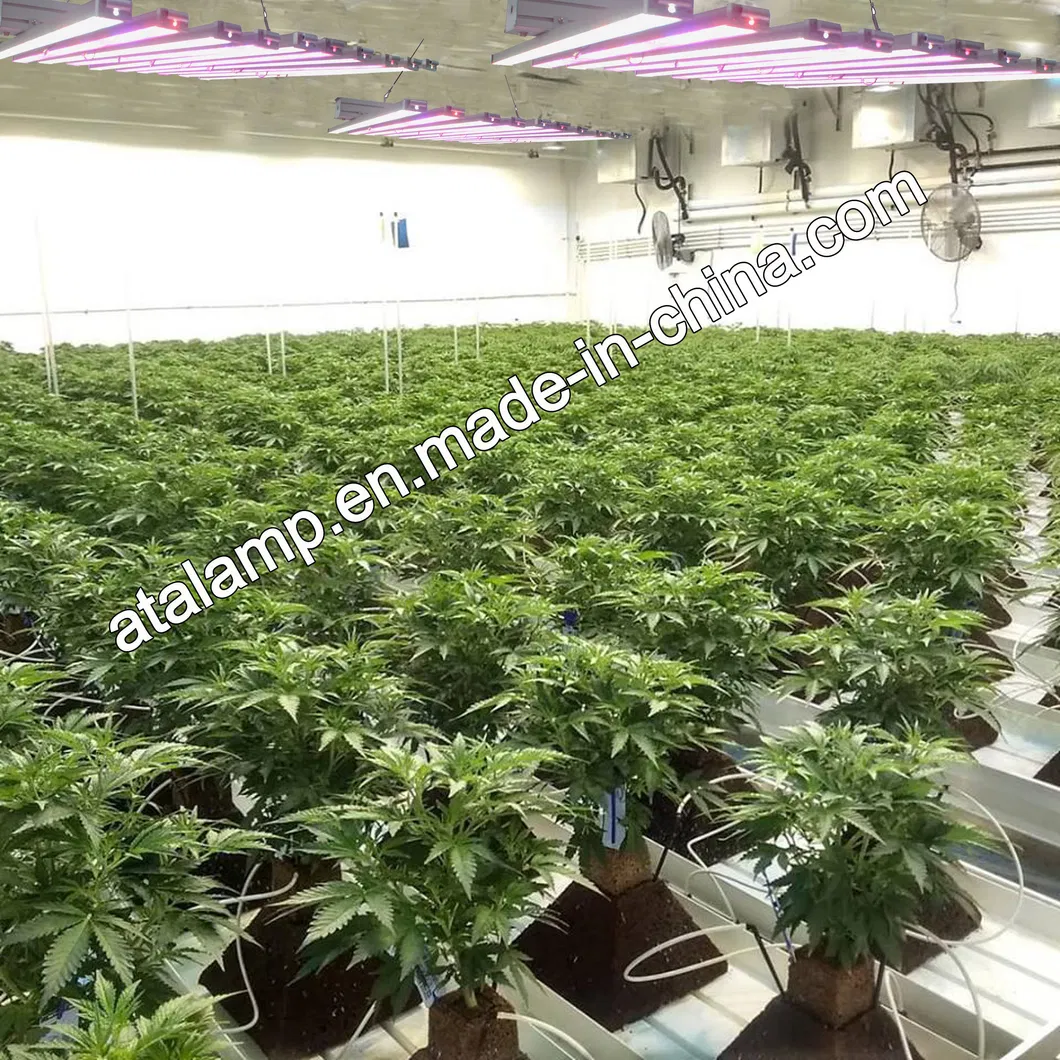

Installation: Suspending
🌿 Application
Ideal for Fruit, Vegetable, Flowers, Special Crops, Leafy greens, Seedlings, propagation, mixed-light, supplemental, complete indoor or greenhouse, Medical plants, indoor gardens, pot plants, and pipeline cultivation.
🛠️ User Manual & Quality Control
Safety Guidelines:
- Switch off mains power before any work.
- Ensure assembly does not damage conducting paths.
- Mount on a stable, even, and tilt-fixed background.
- Installation should be performed by an electrical expert.
Quality Assurance:
- Stability TEST: 100% aging test for at least 48 hours.
- Lighting TEST: 100% functional test before packing.
- Drop TEST: Verified protective packaging for every unit.
❓ Frequently Asked Questions
What is the lifespan of the ATA-1000WB grow light?
The light is designed for a long life of approximately 50,000 hours with high-quality aluminum housing for heat dissipation.
Can I customize the light spectrum for specific plants?
Yes, the LED spectrum can be customized to suit various plant types and growth stages (Veg and Flower).
What are the cooling methods used in this product?
This model supports both Passive Cooling (natural air convection) and Water Cooling options for efficient thermal management.
Is the light waterproof for greenhouse use?
Yes, the technical specifications indicate an IP65 rating, making it suitable for high-humidity environments like greenhouses.
What is the recommended coverage area?
At a height of 1 meter, the light effectively covers an area of approximately 6.0 square meters.
How does this compare to traditional HPS lighting?
The LED system is significantly more efficient; for example, a 600W LED module can replace a 400W HPS while consuming only 108W of actual power.
