Basic Specifications
Cooling
Passive or Water Cooling
Product Advantages
★
Customizable LED Spectrum: The optimal full spectrum provides plants in Veg and Flower stages with everything they require from natural sunlight.
★
Scientific Design: Includes universal Blue, Red, IR, UV, and White light. IR and UV LEDs promote defense mechanisms, while blue and red are essential for growth.
★

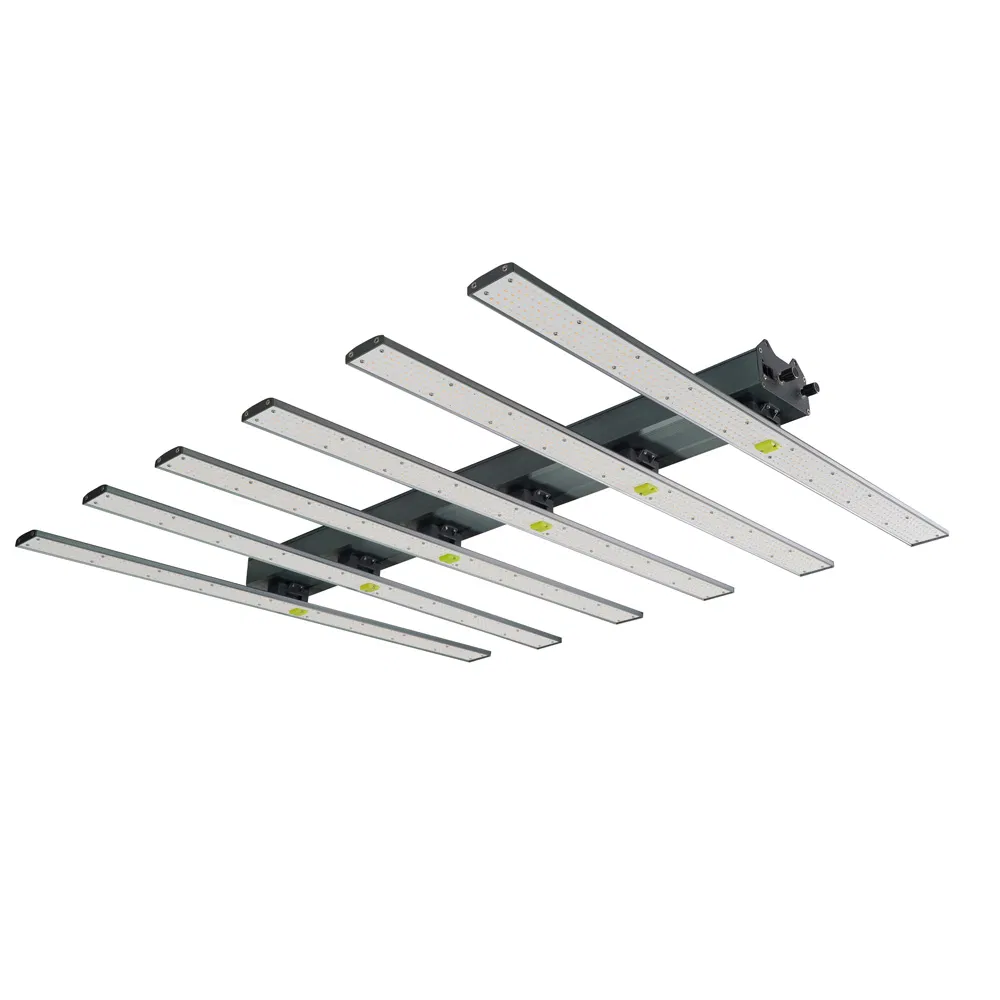

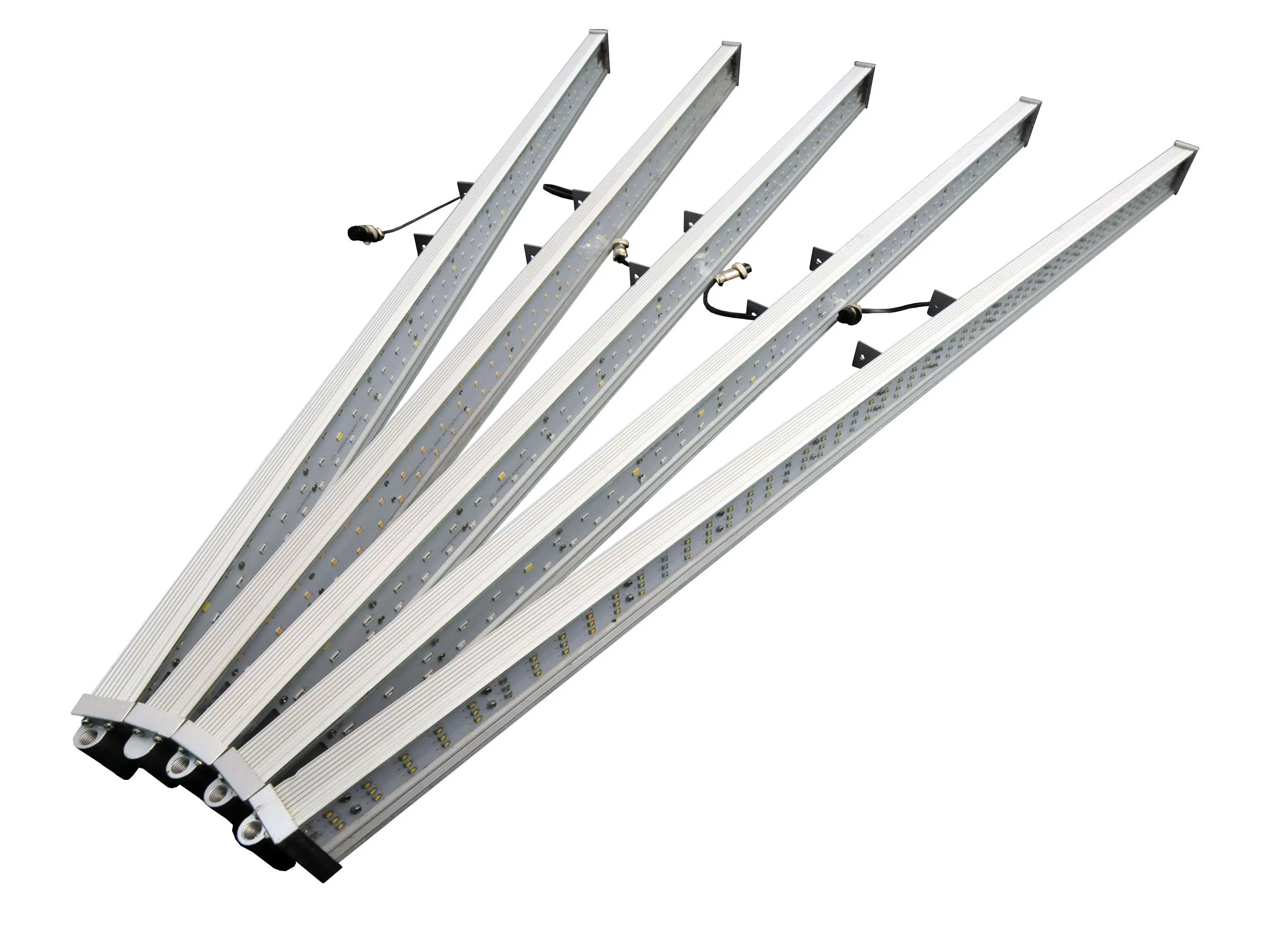

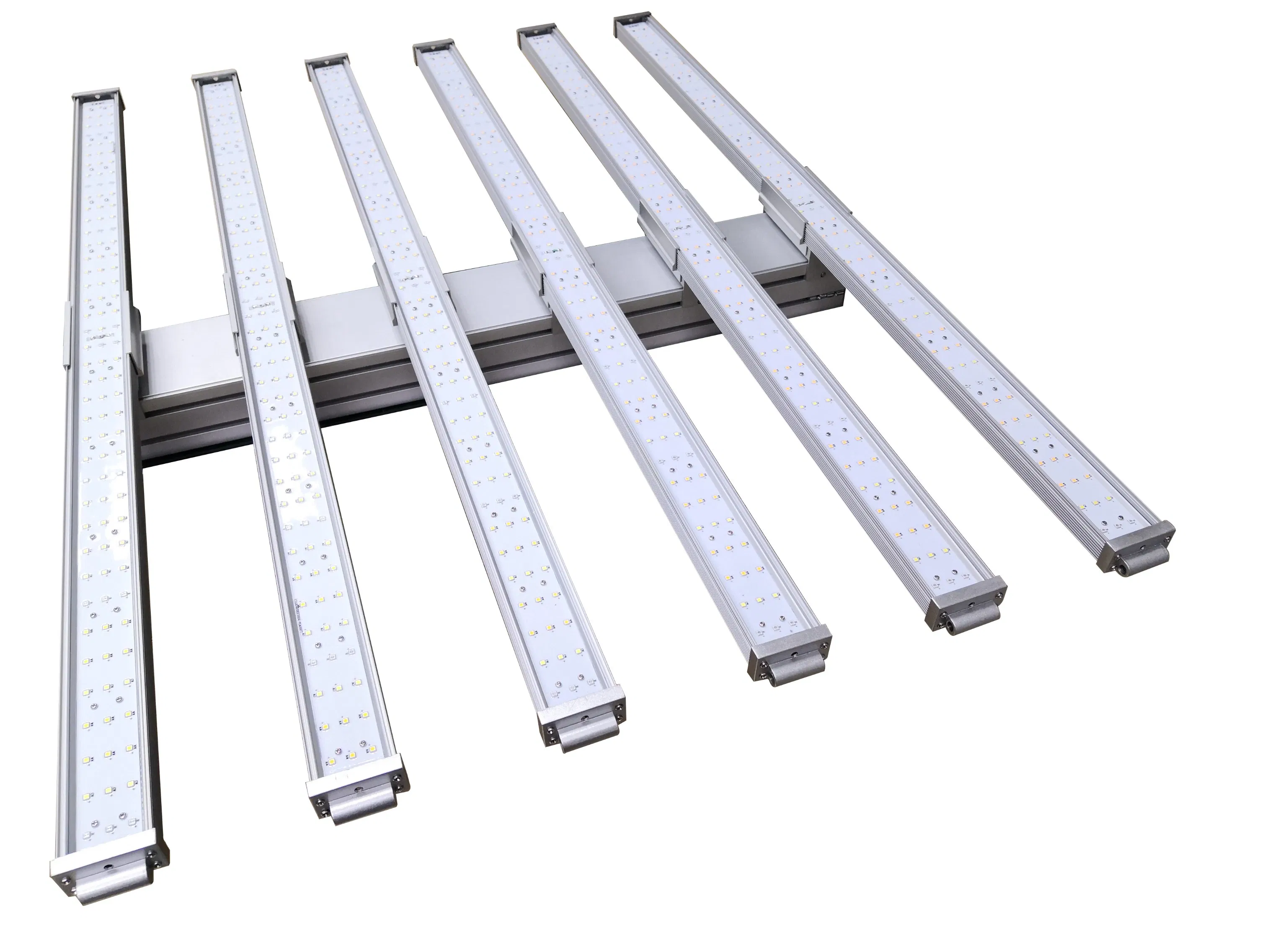

Adjustable Structure: Adjustable distance between LED bars allows for different lighting intensities and directions. Aluminum bar structure ensures superior heat dissipation.
★
High Efficiency: Replaces traditional 400W HPS/MH while consuming significantly less power. Provides effective coverage for up to 6 square meters at 1m height.

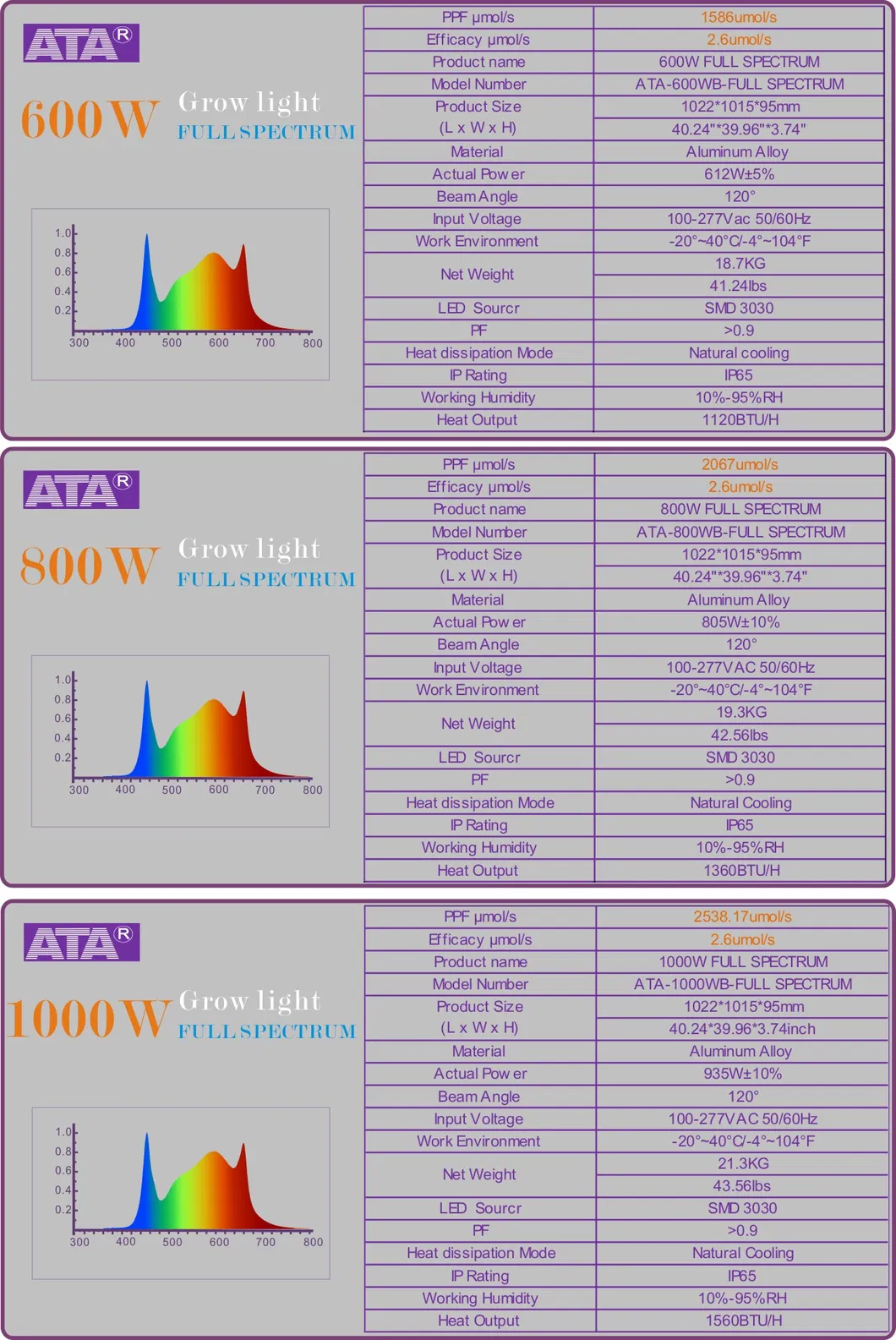

Technical Specifications
| Specification |
ATA-M600W |
ATA-M600W-LENS |
ATA-M600W-FULL |
| Product Size | 1022*1015*95mm | 1022*1015*95mm | 1022*1015*95mm |
| Power Consumption | 545W±5% | 545W±5% | 545W±5% |
| Led Type | 3W 3030 LED | 3W 3030 LED | 1W 5730 LED |
| Beam Angle | 120° | 90° | 120° |
| Net Weight | 18.7KG | 18.7KG | 18.7KG |
| PPF | 1586umol/s | 1586umol/s | 1586umol/s |
| IP Rating | IP65 | IP65 | IP65 |
PPFD Data:

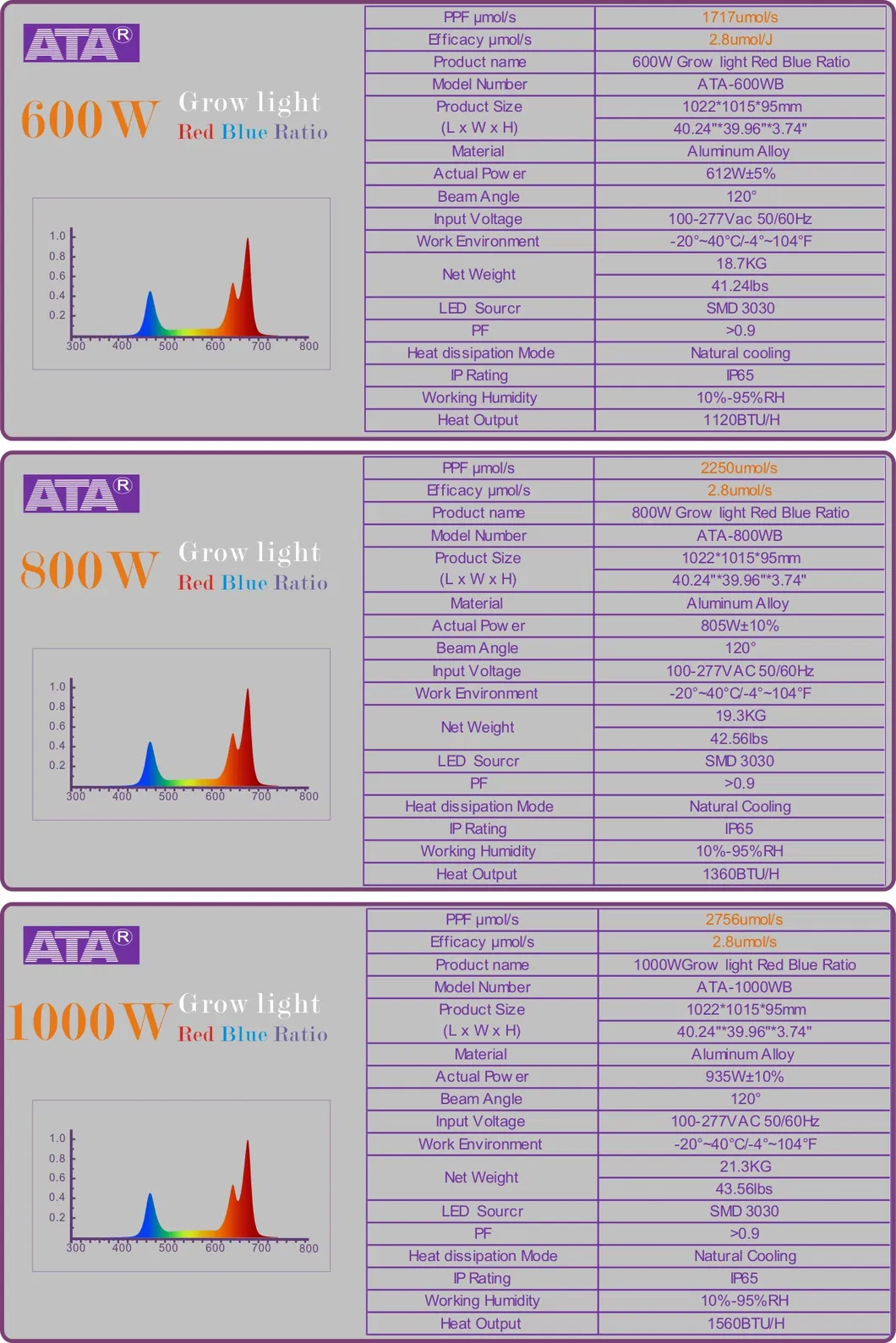

Spectrum Chart:
Dimensions & Installation:
Applications
Perfect for Fruit, Vegetable, Flowers, Special Crops, Leafy greens, Seedlings, propagation, Greenhouse cultivation, Medical plants, and Indoor gardens.
Quality Control & Maintenance
• Aging Test: 100% of lamps undergo at least 48 hours of aging testing.
• Lighting Test: 100% of lamps are tested before packing.
• User Safety: Switch off mains power before installation. Must be mounted on a stable, even background.
Frequently Asked Questions
Q1: Can the LED spectrum be customized for specific plants?
Yes, the LED spectrum can be customized to meet the specific requirements of various plant species and growth stages.
Q2: How does this light compare to traditional HPS/MH systems?
This LED grow light is highly efficient, capable of replacing a 400W HPS/MH system while consuming significantly less actual power, providing better coverage and thermal management.
Q3: Is the cooling system passive or active?
The system utilizes high-quality aluminum bars for efficient natural convection (passive cooling) and can also support water cooling for specific configurations.
Q4: What is the IP rating of the fixture?
The light is rated IP65, making it resistant to dust and water splashes, which is ideal for greenhouse environments.
Q5: What is the expected lifespan of the LEDs?
The LEDs have a rated lifespan of approximately 50,000 hours with very low light decay over the first few years of use.
Q6: What coverage area does a single unit provide?
At a height of 1 meter, a single unit provides an effective lighting coverage area of approximately 6.0 square meters.
