📊 Basic Specifications
LED Chips
Epiled / Samsung / Cree / Osram
Certification
CE, RoHS, CCC, GS, Energy Star, FCC, SAA, PSE, EMC, LVD
Cooling
Passive Cooling or Water Cooling
Spectrum
Full Spectrum (Red, Blue Ratio)
Dimensions
1024*1015*115mm
💡 Product Advantages
1
Customizable LED Spectrum: The optimal full spectrum provides plants in Veg and Flower stages with everything they desire in natural sunlight.
2
Enhanced Growth Promotion: Design includes Blue, Red, IR, UV, and White light. IR/UV promotes defense mechanisms, while Red/Blue is essential for growth.
3

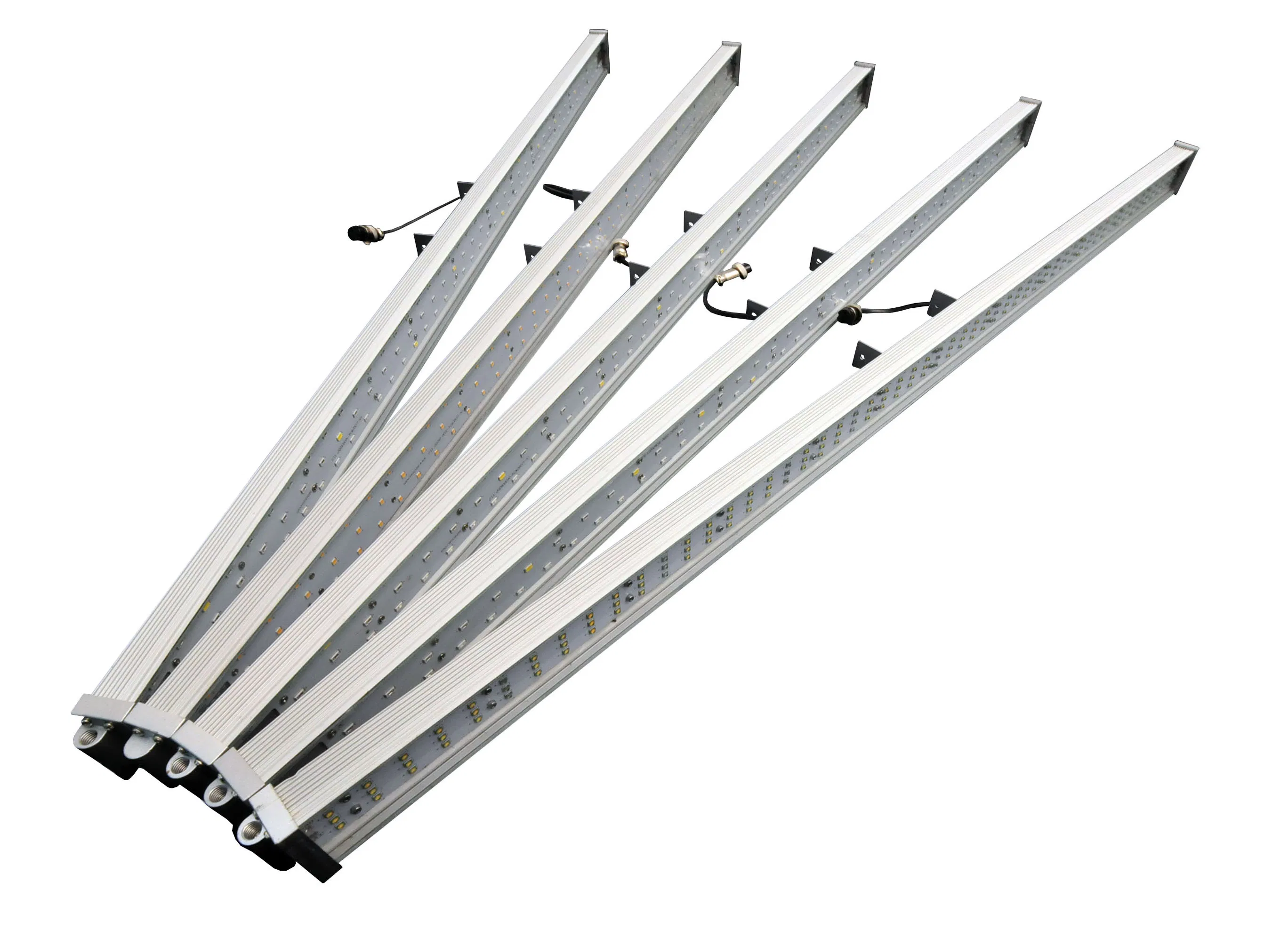

Adjustable Design: LED bars can be adjusted for different lighting intensities and directions. Aluminum structure ensures excellent heat dissipation and thermal management.
4
Energy Efficiency: High efficiency compared to traditional HPS/MH systems. Covers up to 6 square meters at 1m height.

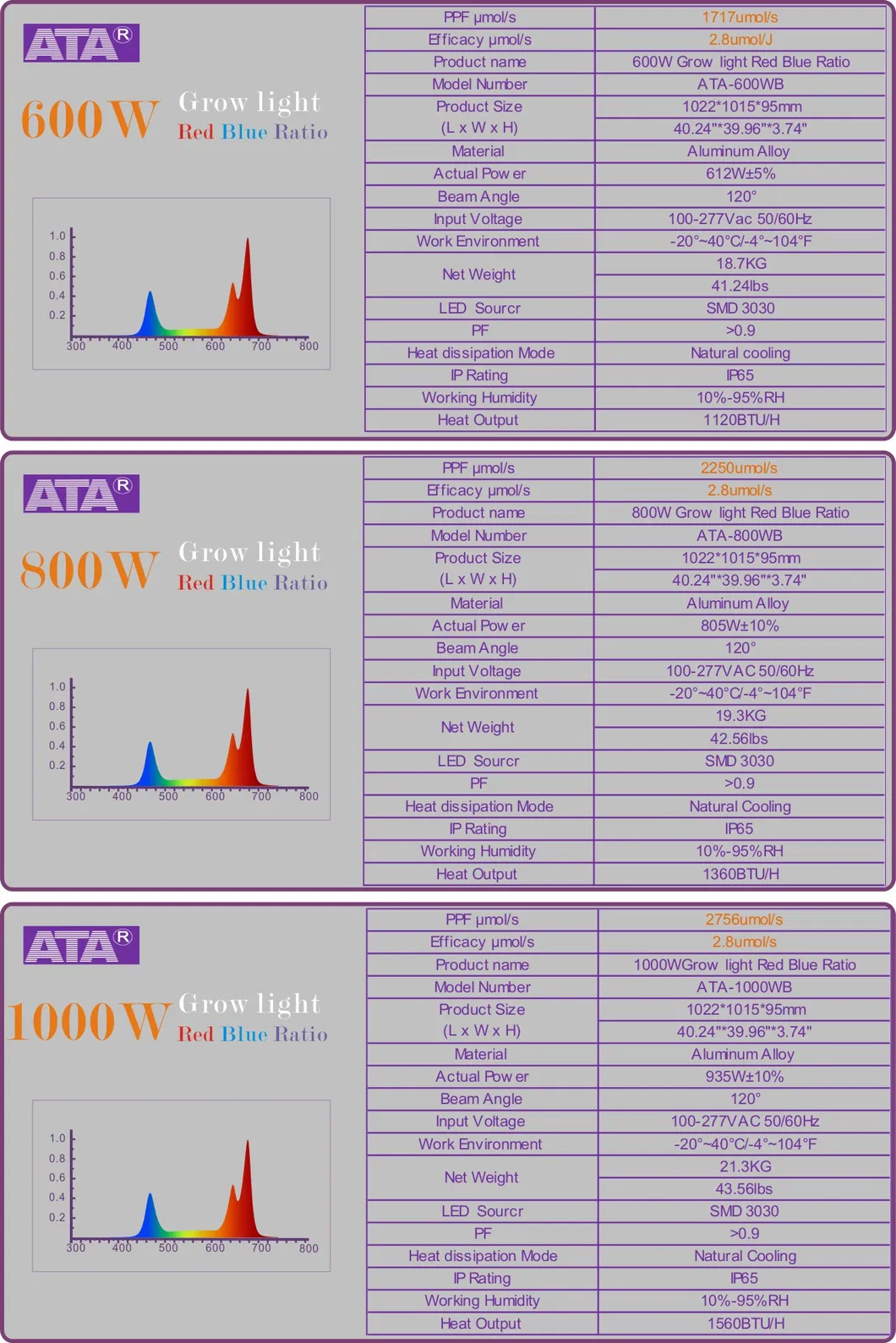

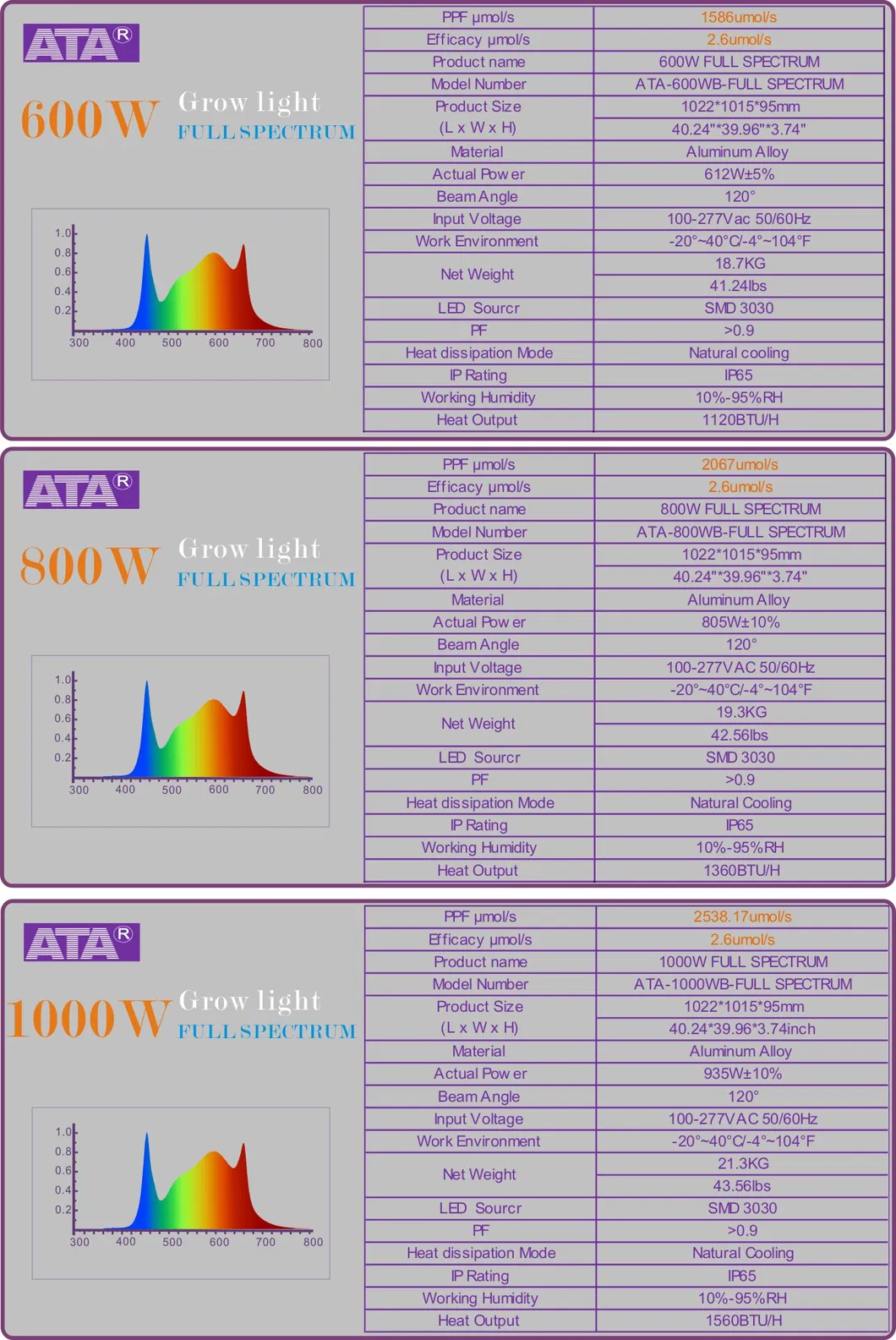

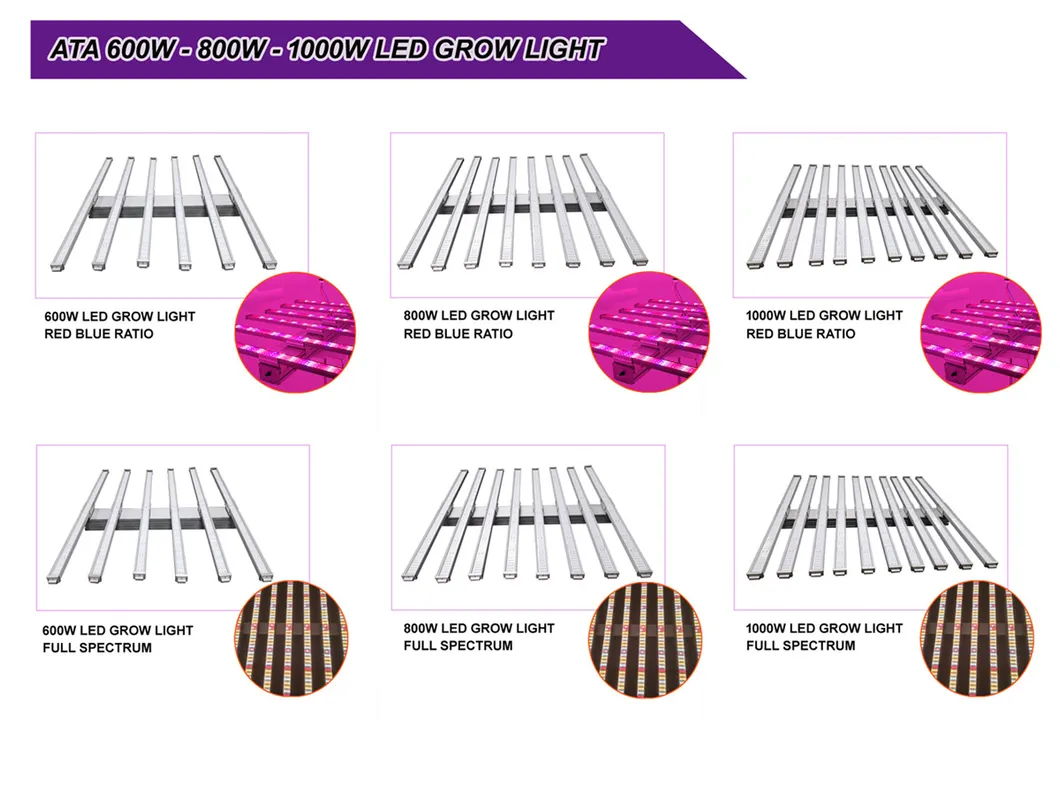

📋 Technical Specifications (600W Series)
| Specification |
ATA-M600W |
ATA-M600W-LENS |
ATA-M600W-FULL |
| Power Consumption |
545W±5% |
545W±5% |
545W±5% |
| LED Type |
3W / 3030 LED |
3W / 3030 LED |
1W / 5730 LED |
| Beam Angle |
120° |
90° (with lens) |
120° |
| Net Weight |
18.7KG |
18.7KG |
18.7KG |
| IP Rating |
IP65 |
IP65 |
IP65 |
| PPF (µmol/s) |
1586 |
1586 |
1586 |
📈 Performance Analysis
PPFD Data:
Full Spectrum Distribution:

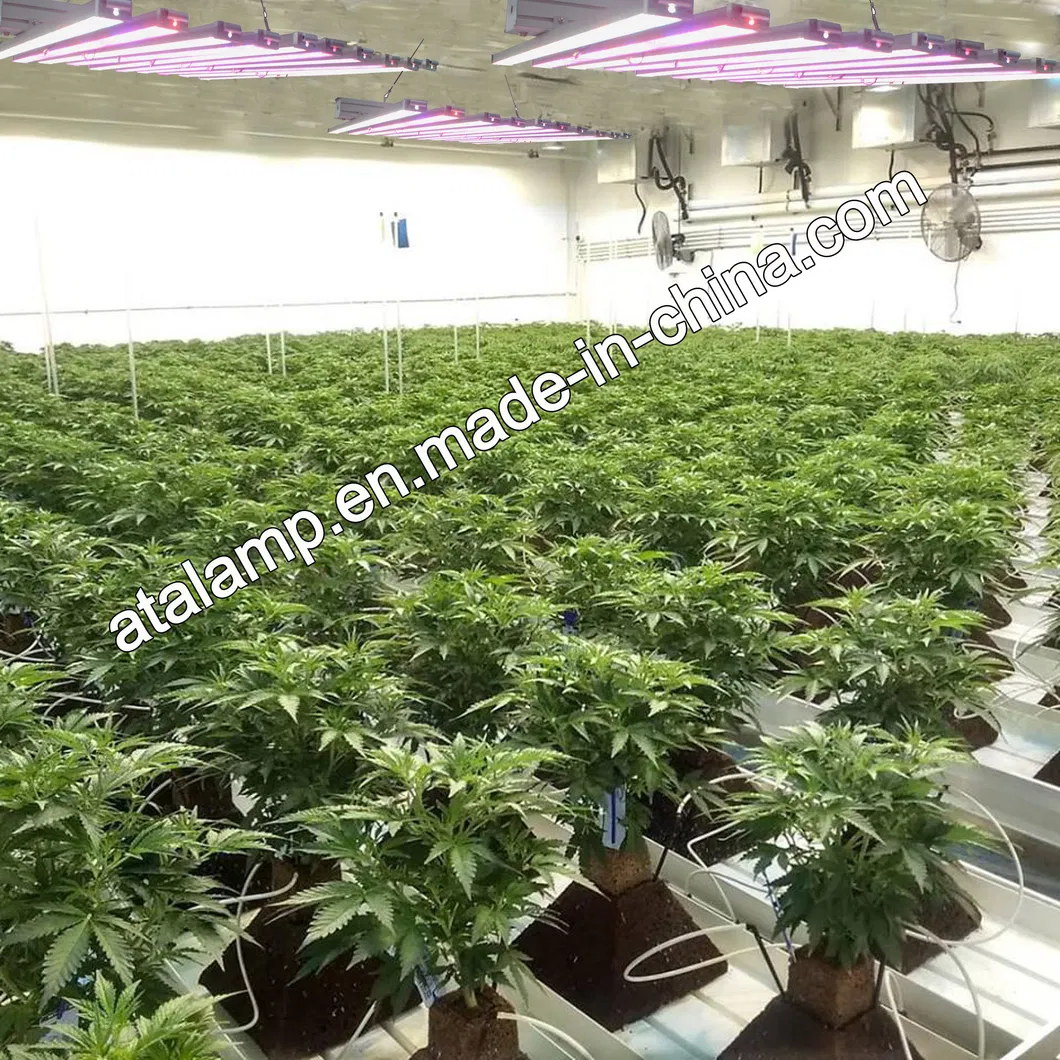

Product Dimensions & Installation:
🌿 Applications & Quality Control
Suitable for Fruits, Vegetables, Flowers, Medical Plants, Indoor Gardens, Greenhouses, and Pipeline Cultivation.
User Safety: Ensure power is switched off before installation. Assembly must be performed by experts to avoid path damage.
Quality Assurance: All lamps undergo a 48-hour aging test, a 100% lighting test before packing, and drop testing for box protection.
Frequently Asked Questions
What are the benefits of the full spectrum design?
The full spectrum includes Blue, Red, IR, and UV light, mimicking natural sunlight to promote plant growth, defense mechanisms, and healthy flowering.
Can this 1000W LED replace an HPS system?
Yes, high-wattage LED grow lights are designed to be more energy-efficient than traditional HPS/MH systems, providing better coverage and higher PPF while consuming less power.
How does the cooling system work?
The light uses an aluminum bar structure for natural passive cooling or can be configured for water cooling, ensuring excellent thermal management and a 50,000h lifespan.
Is the light waterproof for greenhouse use?
Yes, the product features an IP65 rating, making it suitable for high-humidity environments like greenhouses and indoor grow rooms.
What is the recommended installation height?
For optimal performance, a 1-meter height is recommended, providing an effective lighting coverage area of approximately 6 square meters.
What kind of warranty is provided?
The ATA-1000WB-F series comes with a standard 3-year warranty covering material and manufacturing defects.
