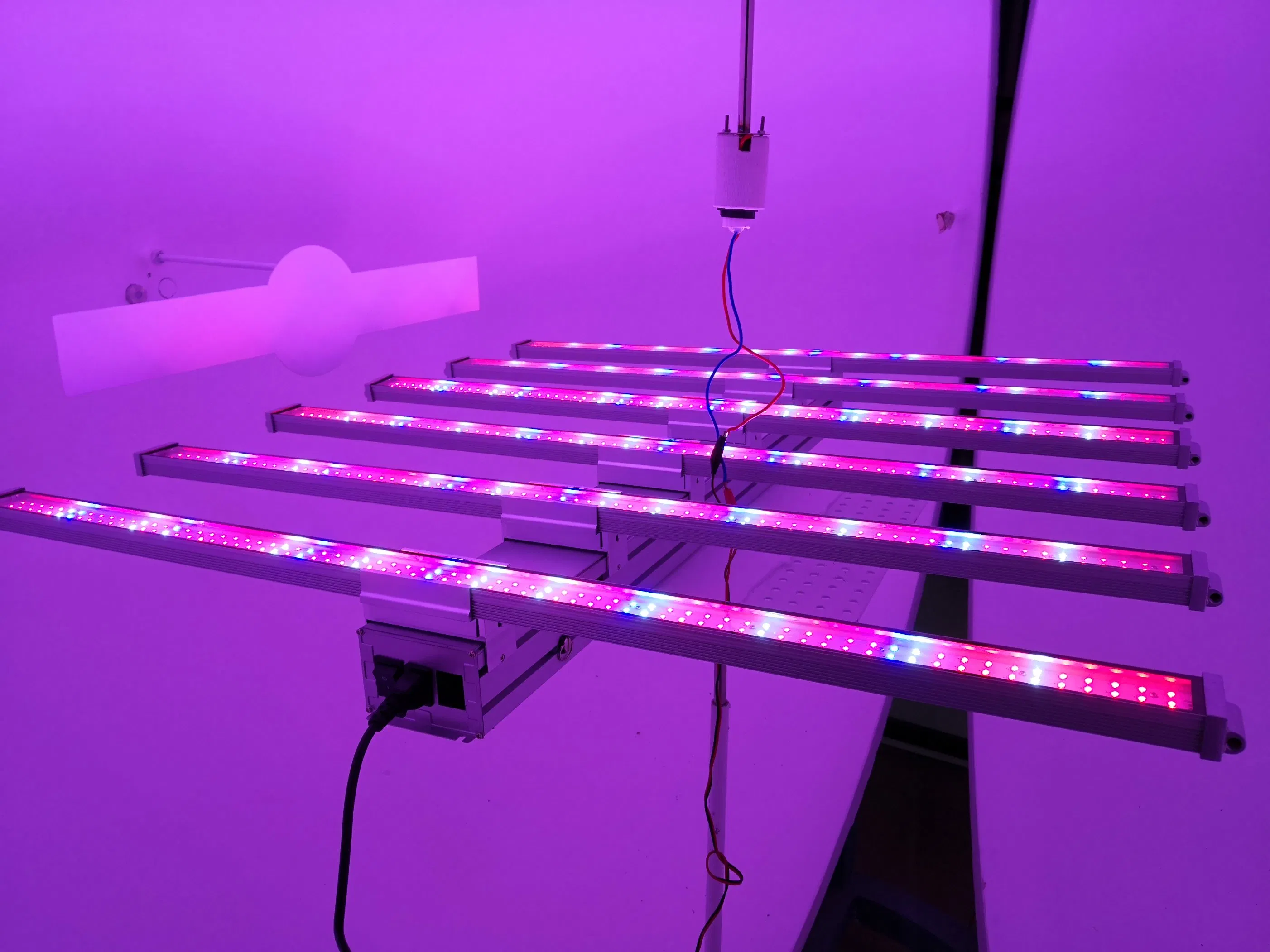

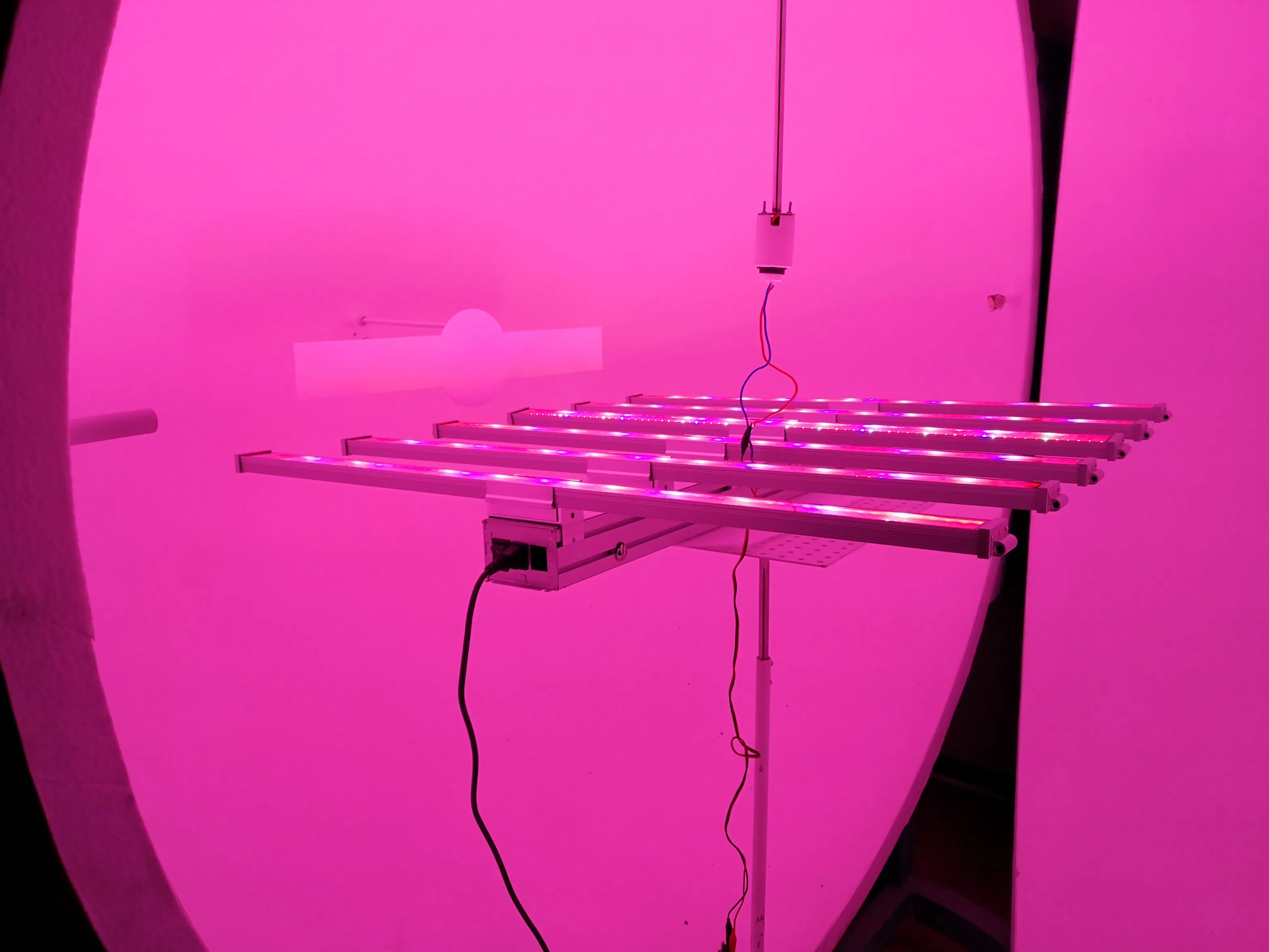

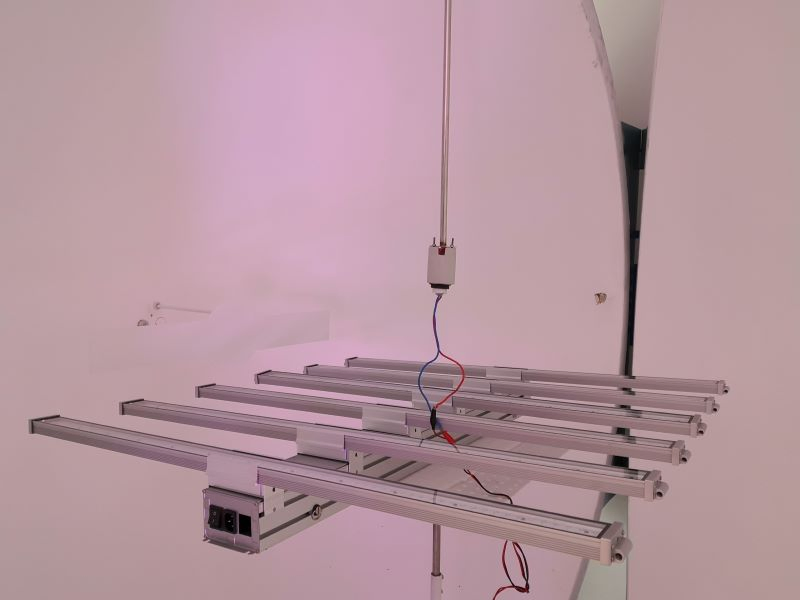

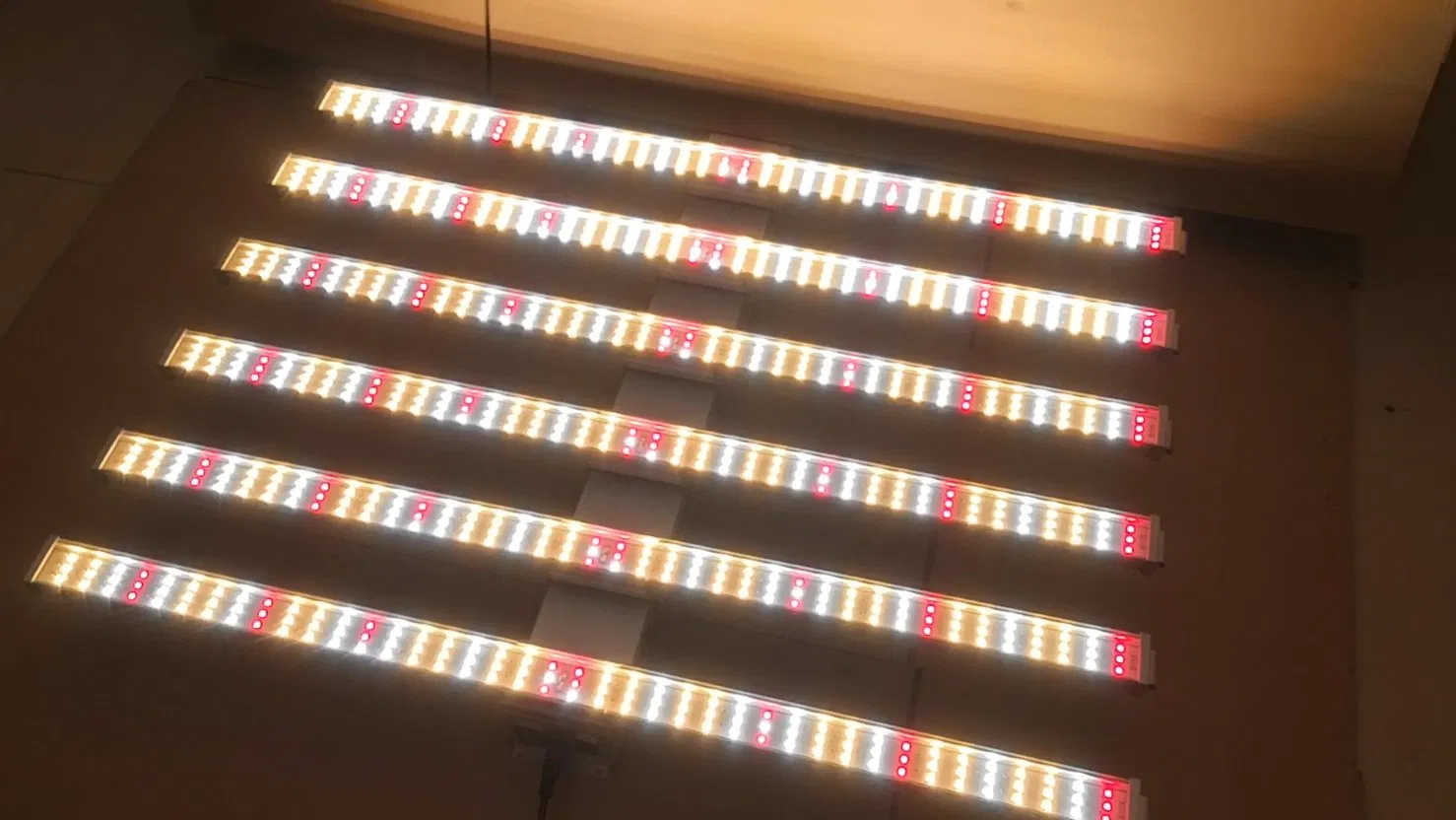

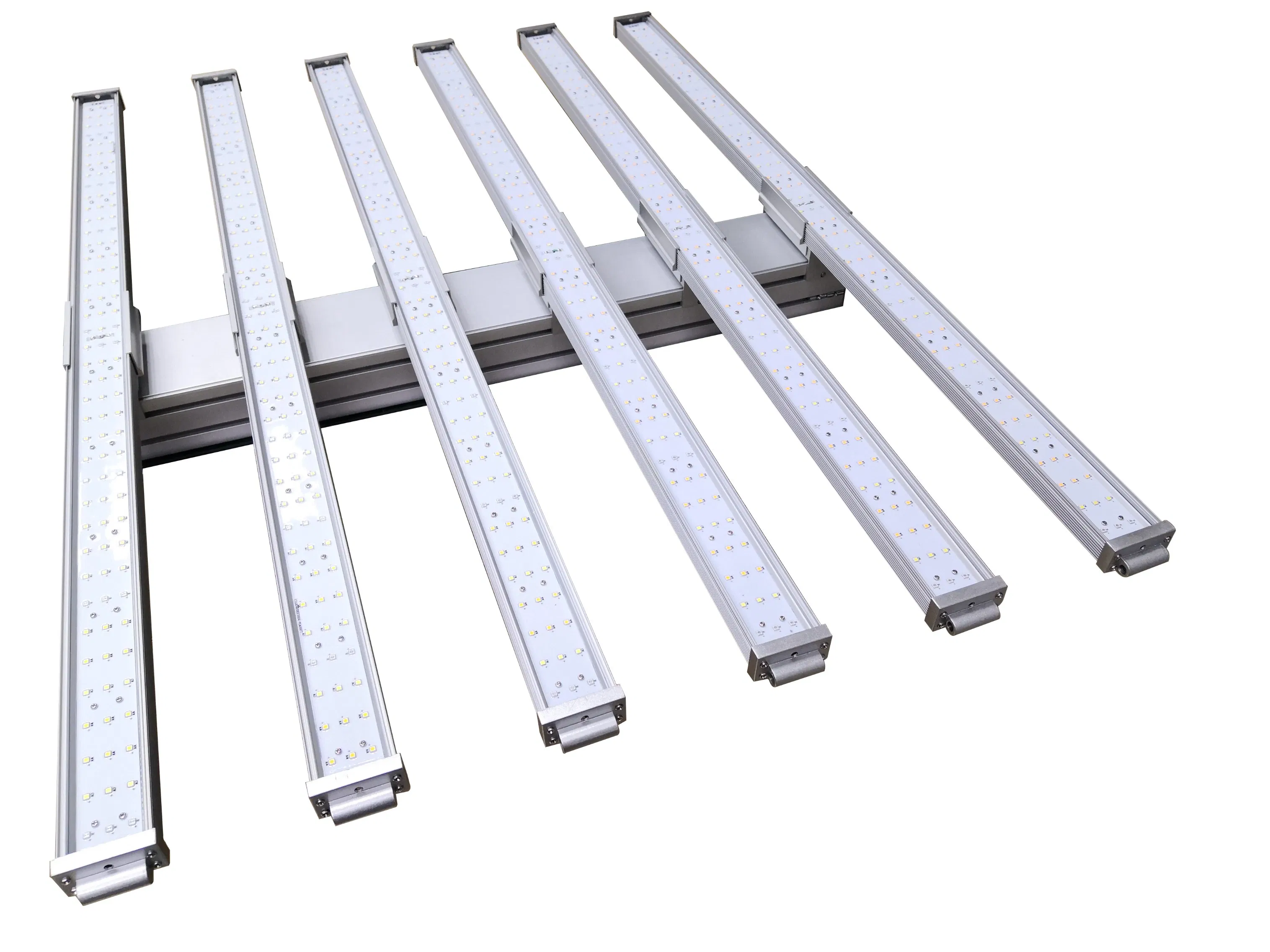

Quantum Board Full Spectrum 300W/600W/800W/1000W LED Grow Light for Vertical Farming/Medical Planting/Flowering/Fruiting

Customization: Available
IP Rating: IP65
Emitting Color: Customized

Product Description

📋 Basic Information
Model NO.
ATA-600WB-F
Power
600W
Input Voltage
AC100-277V
Actual Power
1000W
Warranty
3 Years
Life
50000h
LED Chips
Epiled/Samsung/Cree/Osram
PPF
1586umol/S
Efficiency
2.4umol/S
Housing Material
Aluminum
Beam Angle
140°
Cooling
Passive or Water Cooling
🌟 Product Advantages
⚙️

Customizable LED Spectrum

The optimal full spectrum provides plants in Veg and Flower stages with everything they desire in natural sunlight. Spectrum can be customized for various plant types.

☀️

Advanced Full Spectrum Design

Includes Blue, Red, IR, UV, and White light. IR and UV promote defense mechanisms, while blue and red are essential for growth and development.

📐

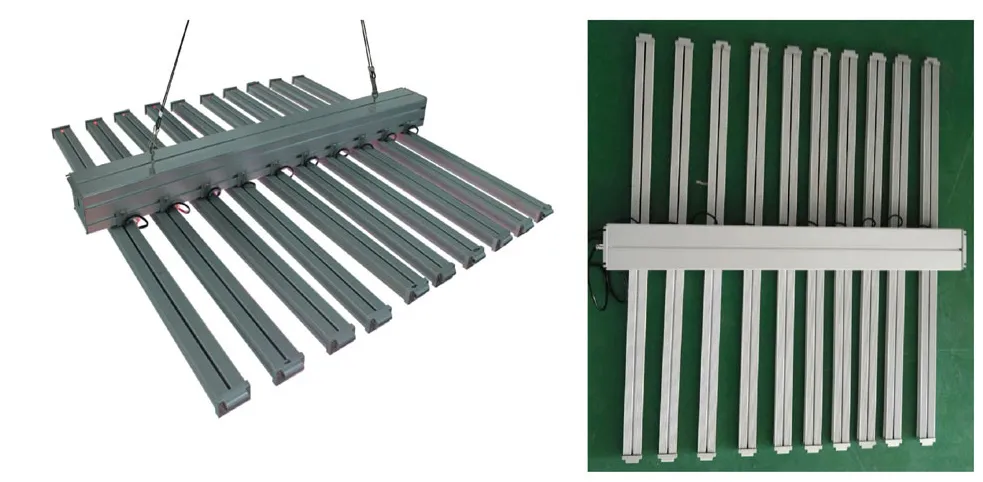

Adjustable Bar Structure

Adjustable distances between LED bars allow for different lighting intensities and directions. Aluminum structure ensures excellent heat dissipation and air convection.

💡

Efficiency vs HPS/MH

This 600W LED system replaces traditional 400W HPS/MH while consuming minimal power. Perfect for a 6 square meter area at 1m height.

📊 Technical Specifications
Specification ATA-M600W ATA-M600W-LENS ATA-M600W-FS
Product Size1022*1015*95mm1022*1015*95mm1022*1015*95mm
Power Consumption545W±5%545W±5%545W±5%
LED Type3W 3030 LED3W 3030 LED1W 5730 LED
Beam Angle120°90° (with lens)120°
Net Weight18.7KG18.7KG18.7KG
IP RatingIP65IP65IP65
Warranty3 Years3 Years2 Years
📈 Performance & Dimensions
Product Dimension

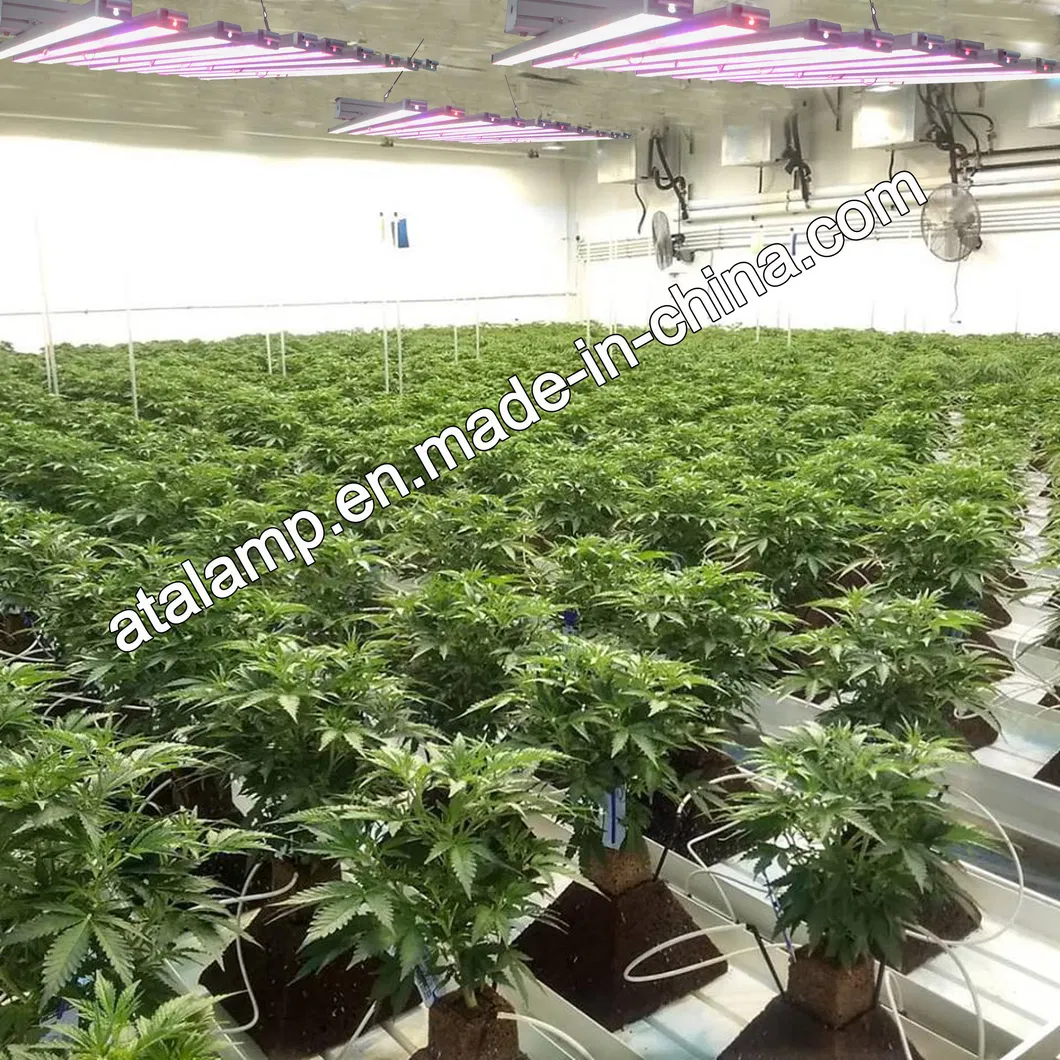

Installation Guide

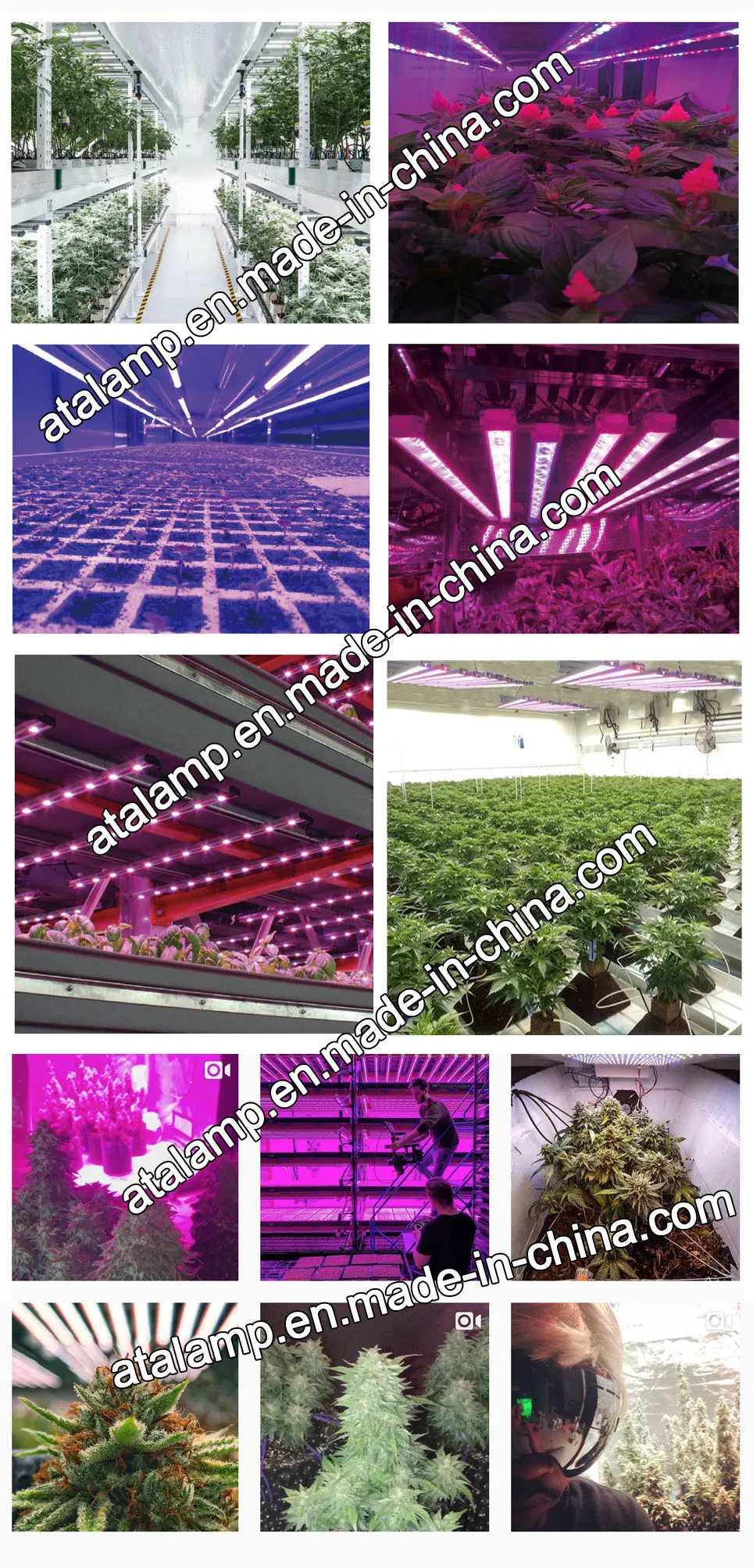

🌿 Applications

Ideal for Fruit, Vegetables, Flowers, Leafy greens, Seedlings, Greenhouse plants, Indoor gardens, Pot plants, Farmland, Pipeline cultivation, and Flowering stages.

🛡️ Quality & Safety
Quality Control: Stability aging test (48 hours), 100% lighting test before packing, and drop testing for box protection.
Safety Notice: Switch off mains power before installation. Assembly must not damage conducting paths. Mount on a stable, even background.
Frequently Asked Questions
What is the coverage area of the 600W LED grow light?
At a height of 1 meter, the light provides an effective coverage area of approximately 6.0 square meters.
Is the LED spectrum customizable for specific plants?
Yes, we can customize the LED spectrum to suit different plant species and growth stages (Veg/Flower).
How does this compare to traditional HPS/MH lighting?
The 600W LED grow light is more efficient, replacing traditional 400W HPS/MH systems with significantly lower energy consumption and better thermal management.
What are the main cooling methods used?
The product uses an aluminum bar structure designed for passive natural cooling, but it also supports water cooling options for heat dissipation.
What is the lifespan and warranty of this product?
The LEDs have a rated life of 50,000 hours, and the product comes with a 3-year warranty for most models.
What certifications does the light have?
This product is highly certified, carrying CE, RoHS, CCC, Energy Star, FCC, SAA, and PSE certifications among others.
