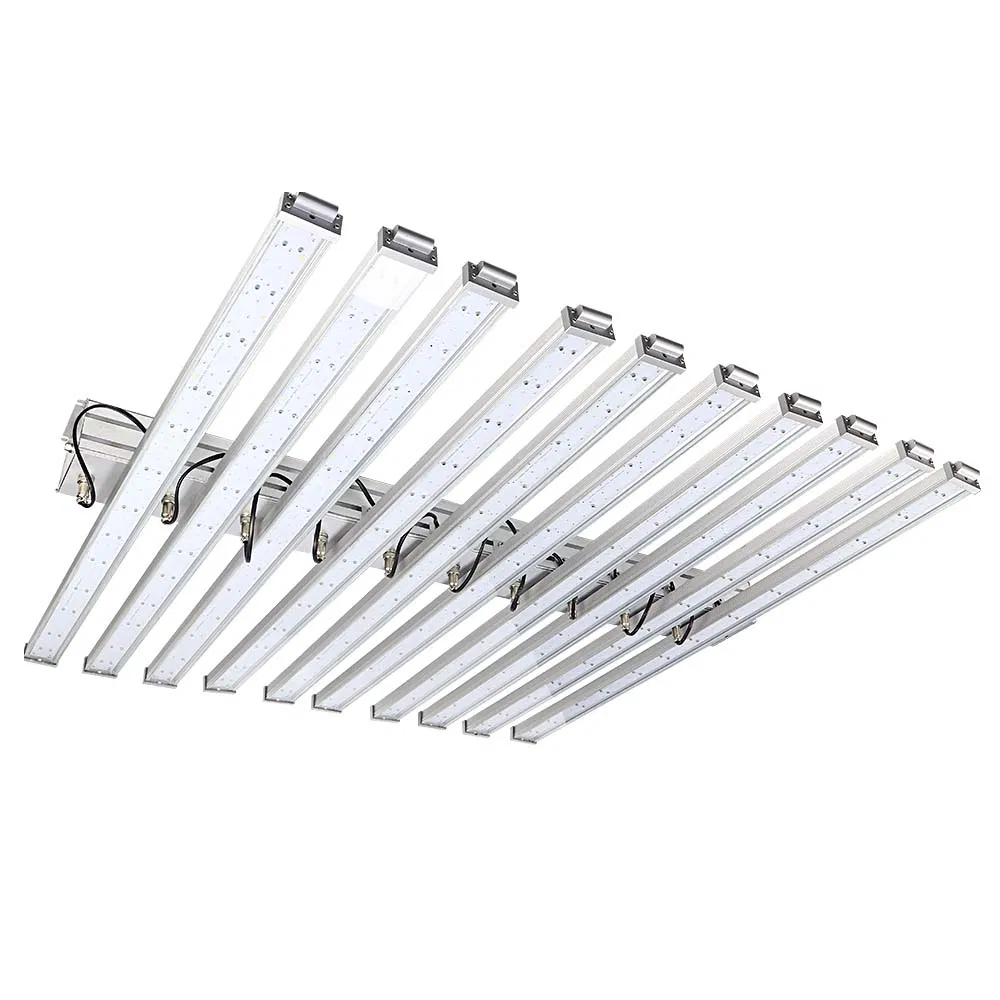

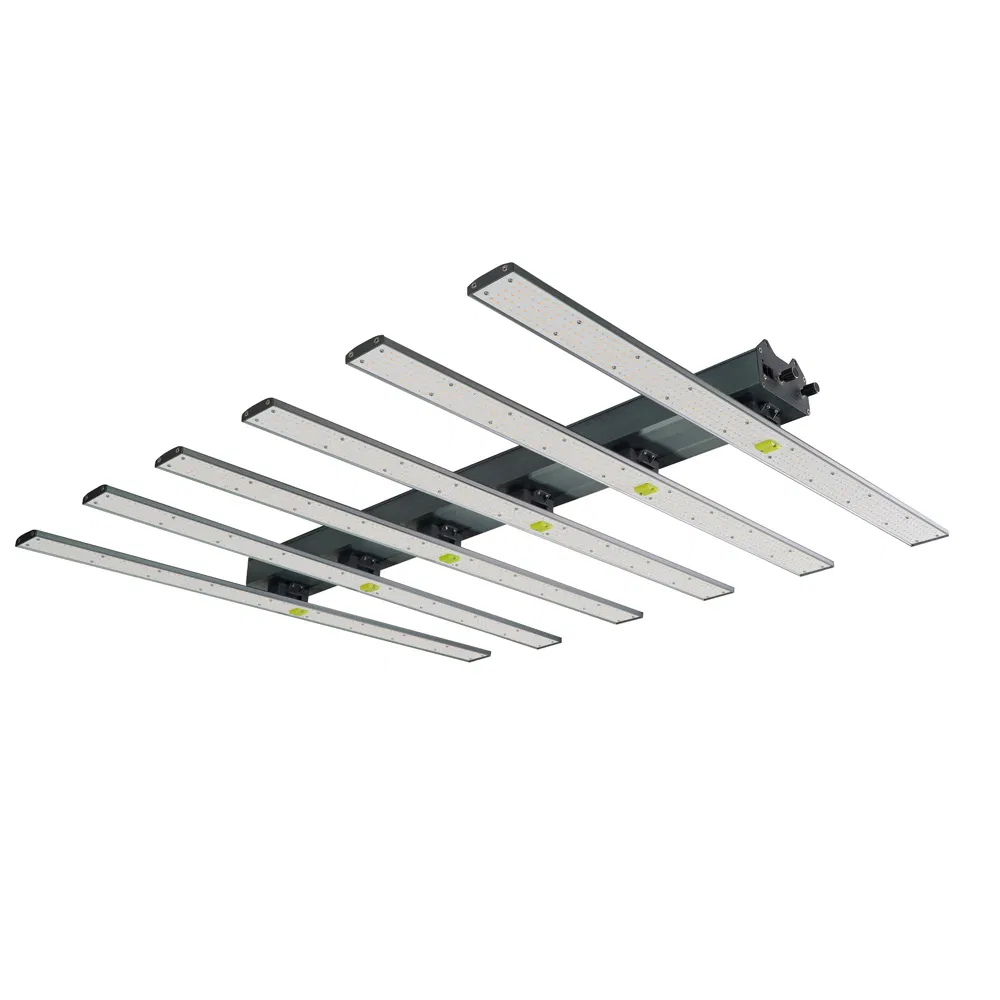

Best Sellers OEM/ODM Welcome Aluminum 800W/600W/400W Quantum Board LED Grow Light for Plants

Customization:	Available
IP Rating:	IP65
Emitting Color:	Customized

Send Inquiry

Product Description

Basic Specifications

Model NO.

ATA-1000WB-F

Input Voltage

AC100-277V

Power

600W

Actual Power

1000W

PPF

1586umol/S

Efficiency

2.4umol/S

LED Chips

Epiled/Samsung/Cree/Osram

Spectrum

Red Blue Ratio, Full Spectrum

Lifespan

50000h

Beam Angle

140°

Material

Aluminum

Warranty

3 Years

Certification

CE, RoHS, CCC, GS, Energy Star, FCC, SAA, C-tick, NOM, PSE, GOST, EMC, LVD, KEMA, IMQ

Cooling

Passive or Water Cooling

Product Advantages

Customizable Spectrum: Optimal full spectrum design providing Veg and Flower stages with all essential natural sunlight components.
Full Spectrum Efficiency: Includes Blue, Red, IR, UV, and White light. Expensive IR/UV LEDs promote plant defense mechanisms, while Blue/Red are essential for growth.

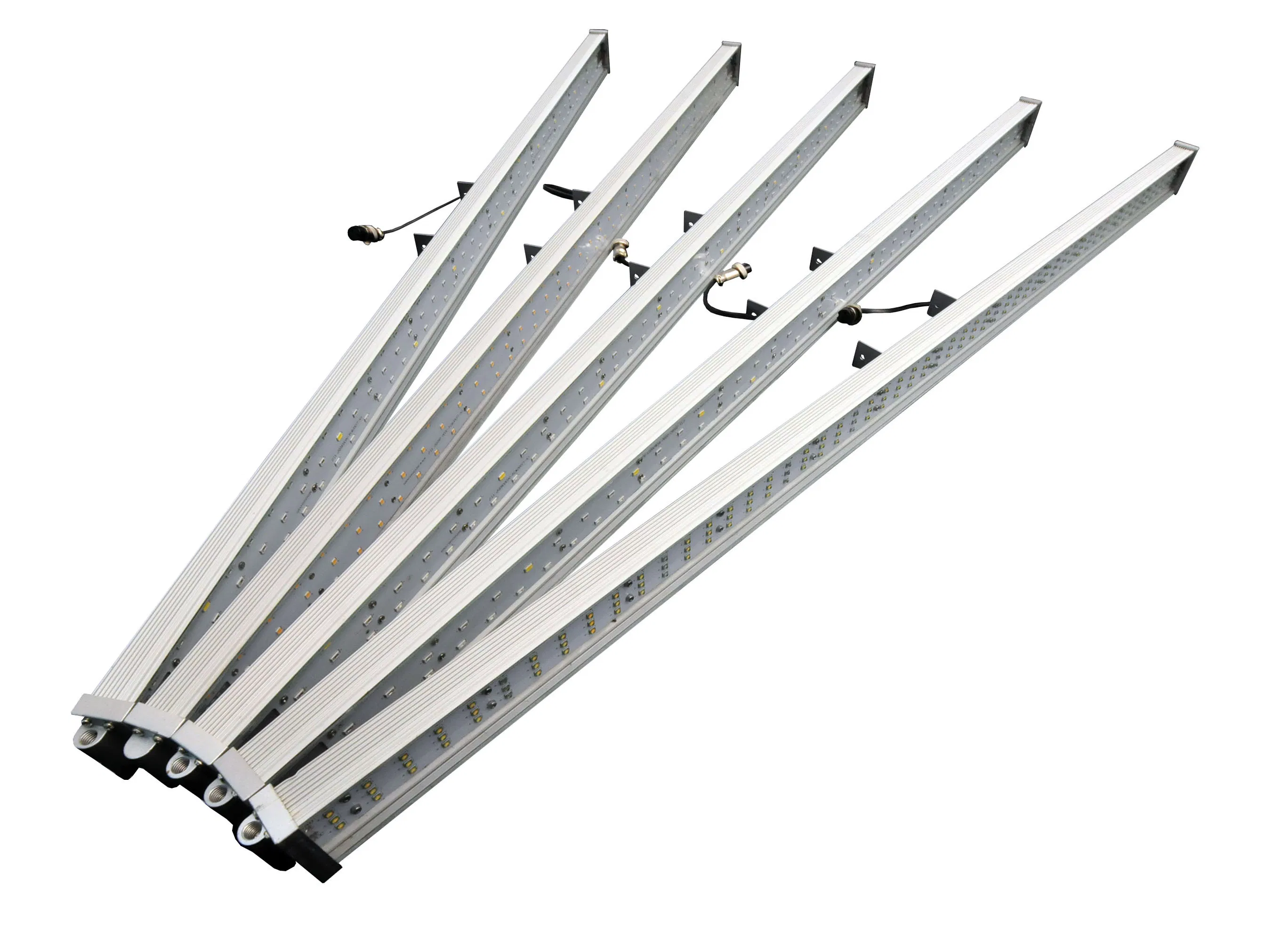

Adjustable Bar Design: Flexible distance between LED bars allows for adjustable lighting intensity and direction.
Thermal Management: Aluminum structure ensures excellent heat dissipation and air convection, extending the light's lifespan.
HPS/MH Replacement: The 600W LED system can replace traditional 400W HPS/MH lamps while consuming only 108W of effective power in specific configurations.
Modular Installation: Optical lens modular design makes assembly and installation convenient.

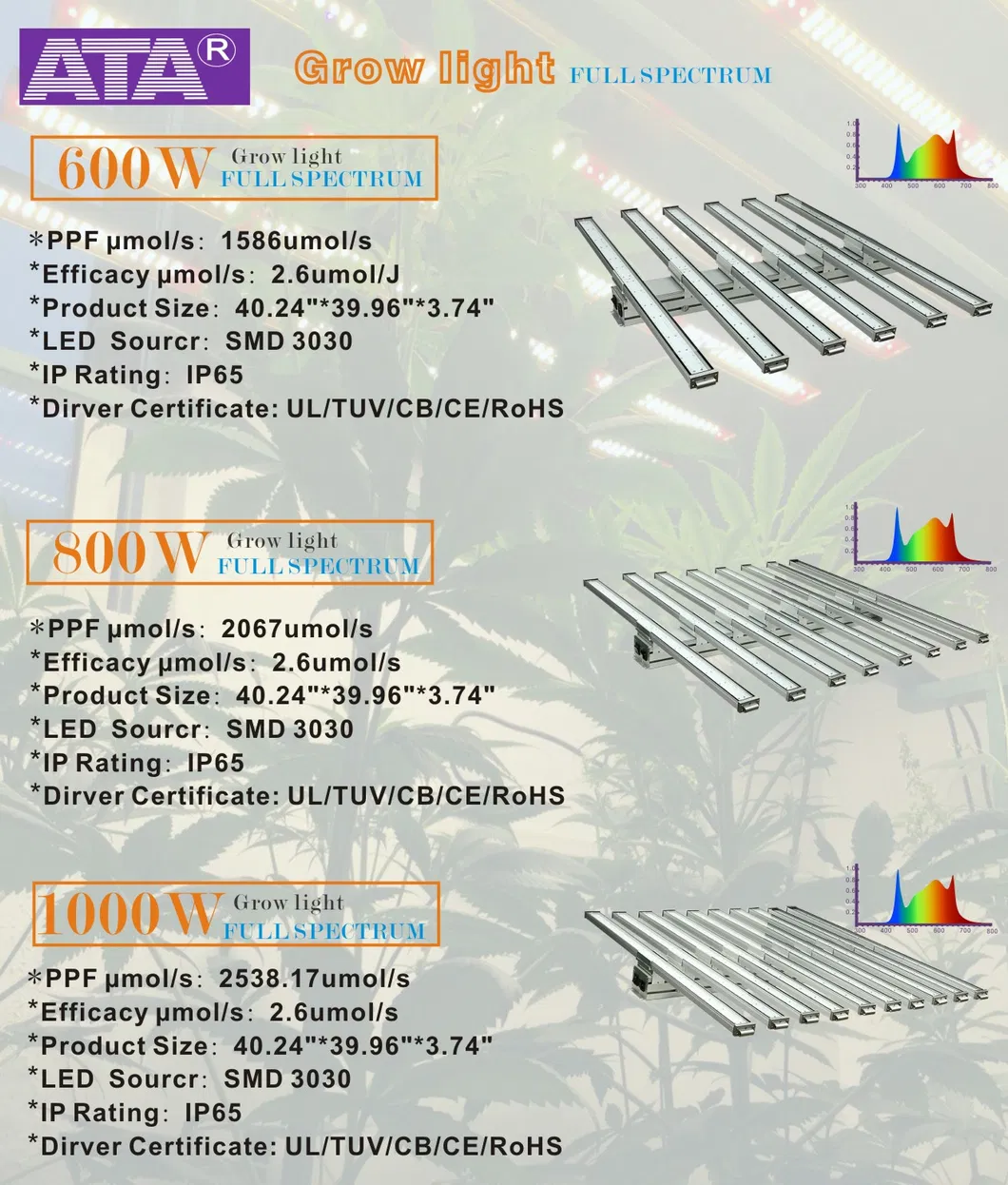

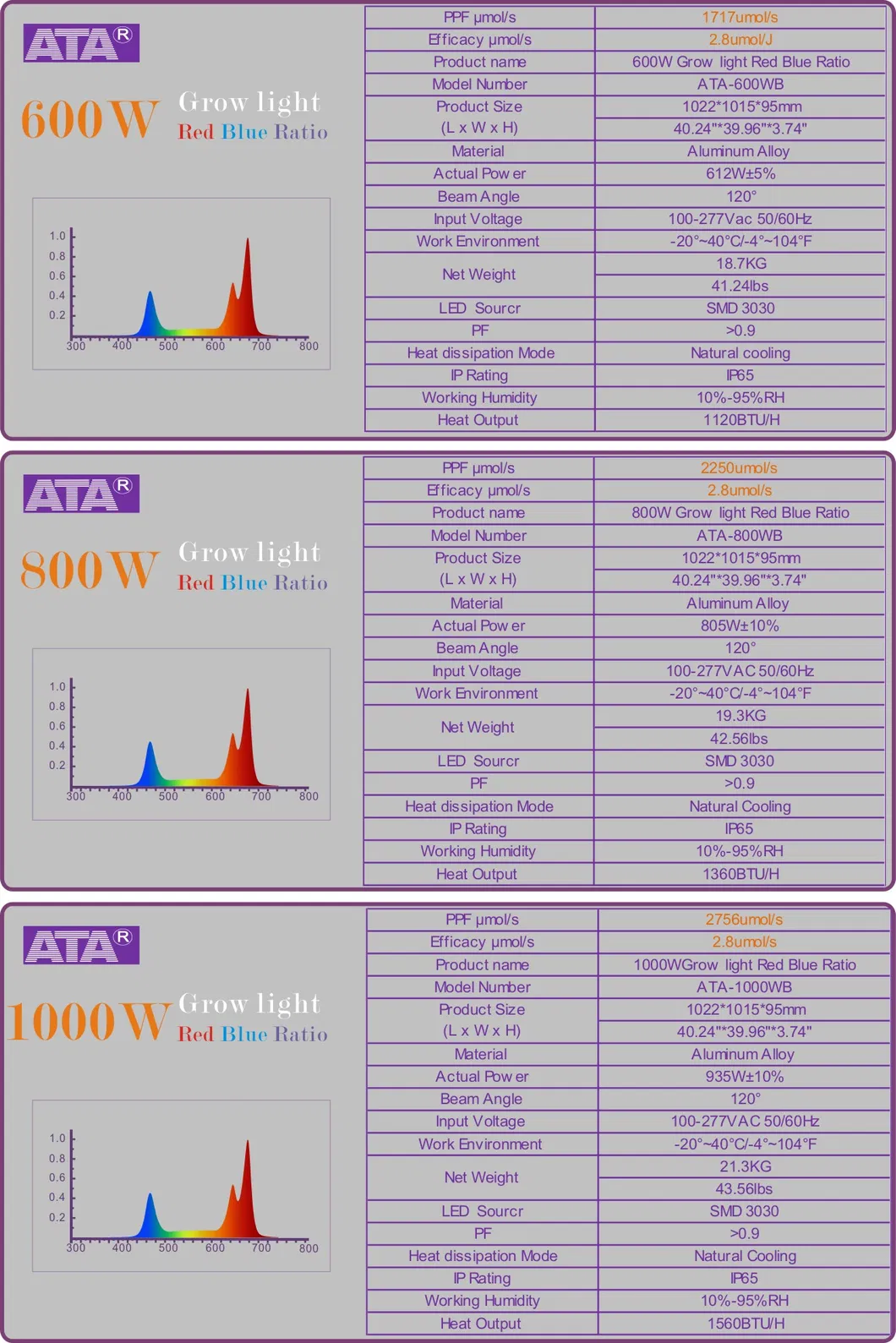

Technical Specifications Comparison

Product name	600W Top module	600W Top module (LENS)	600W (FULL SPECTRUM)
Model	ATA-M600W	ATA-M600W-LENS	ATA-M600W-FULL
Size	1022101595mm	1022101595mm	1022101595mm
Power Consumption	545W±5%	545W±5%	545W±5%
LED Type	3W 3030 LED	3W 3030 LED	1W 5730 LED
Beam Angle	120°	90°	120°
PPF (µmol/s)	1586	1586	1586
IP Rating	IP65	IP65	IP65
Warranty	3 Years	3 Years	2 Years

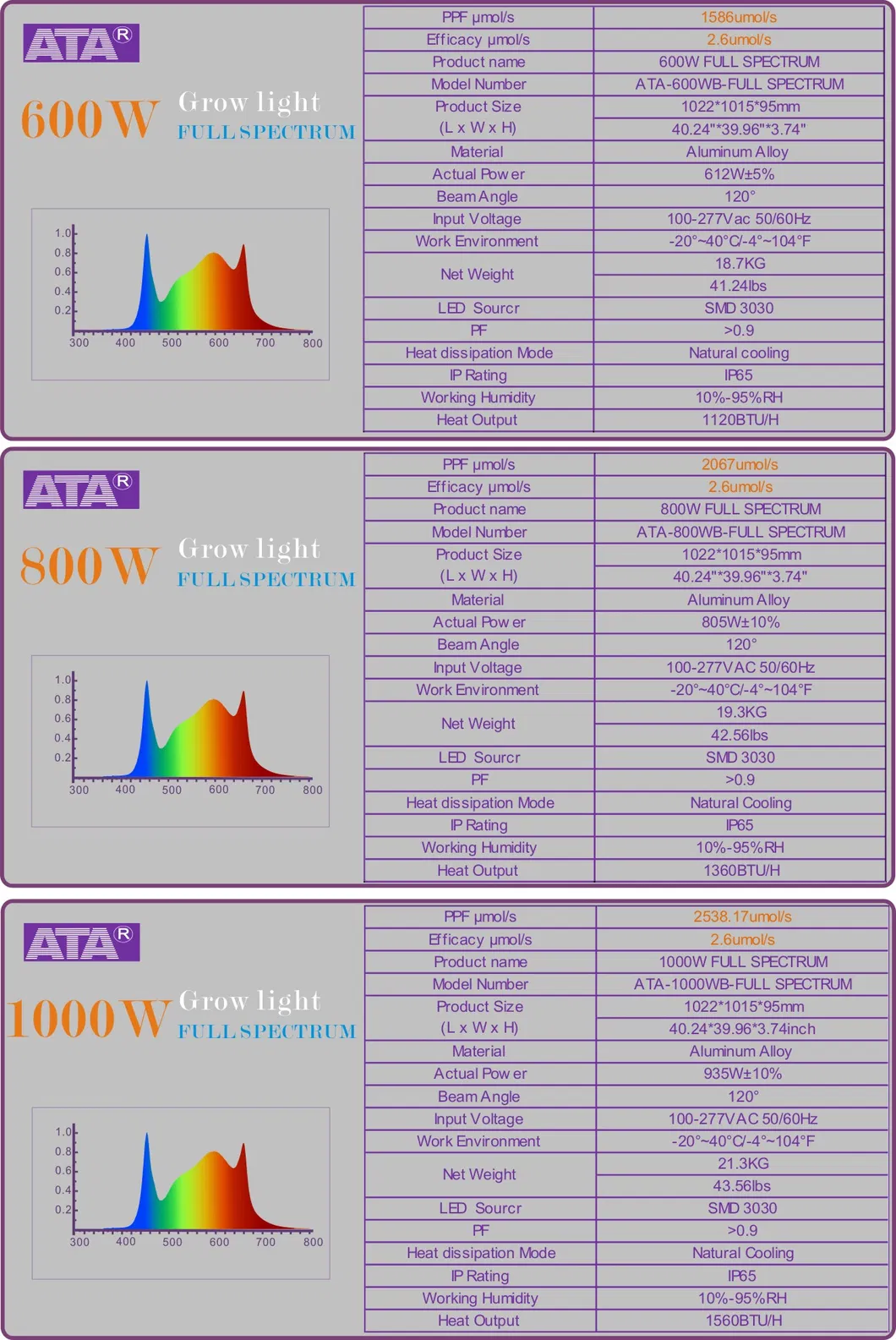

PPFD & Spectrum Analysis

PPFD Distribution:

Spectrum Profile:

Dimensions & Installation:

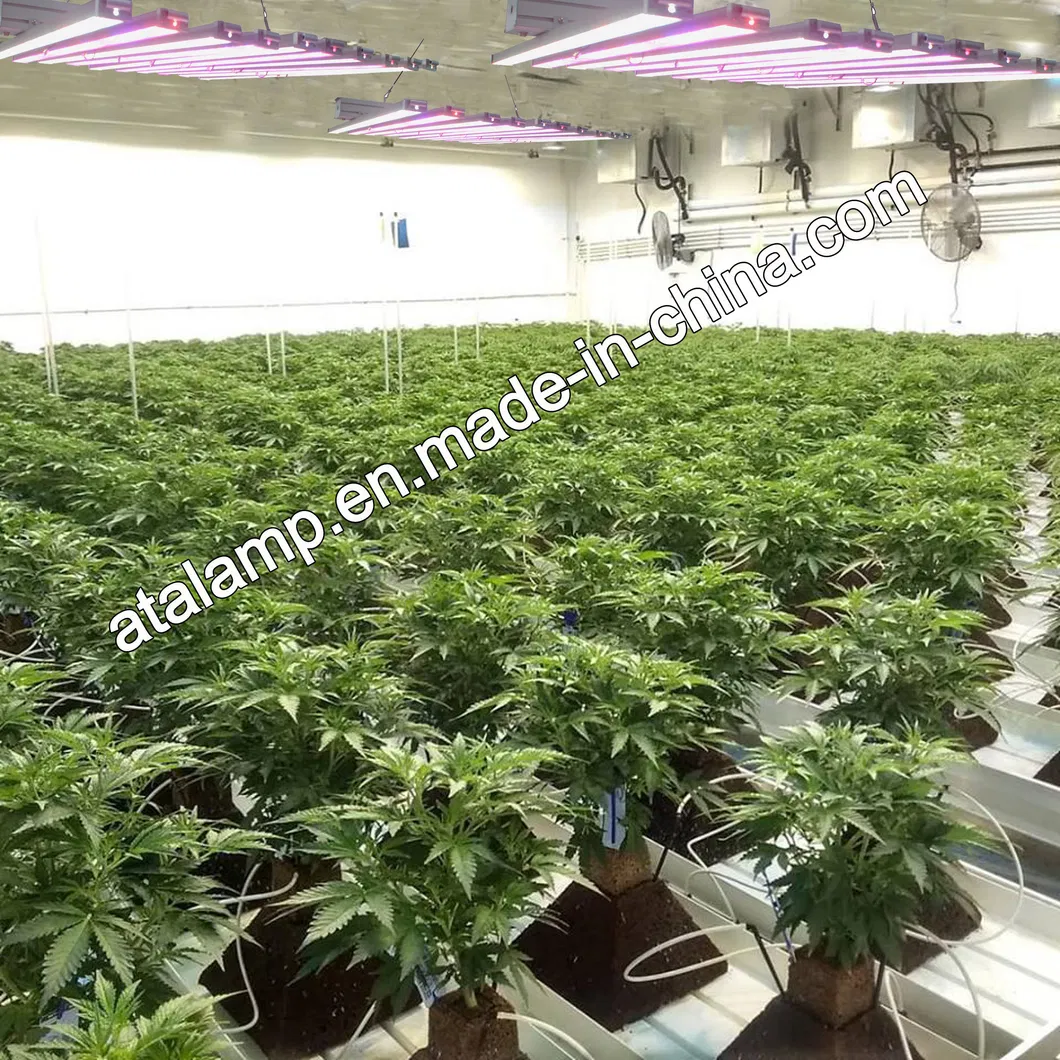

Wide Application

Ideal for Fruit, Vegetables, Flowers, Medical Plants, Leafy Greens, Seedlings, and Propagation. Suitable for:

Complete indoor garden or greenhouse environments.
Mixed-light and supplemental lighting.
Pipeline cultivation, Farmland, and Pot plants.

Quality Assurance

Stability Test 100% of lamps undergo aging tests for at least 48 hours.

Lighting Test Every unit is tested for illumination before packaging.

Drop Test Strict drop tests ensure structural integrity and protection.

User Guidelines: Always switch off main power before installation. Ensure the product is mounted on a stable, even background. Installation must be performed by a qualified expert.

Frequently Asked Questions

What is the advantage of the full spectrum design?

The full spectrum design simulates natural sunlight by including Blue, Red, IR, and UV light, which are essential for both the vegetative and flowering stages of plant growth.

How does this LED compare to traditional HPS lighting?

Our 600W LED system provides more effective coverage and intensity than traditional 400W HPS/MH lamps while consuming significantly less energy and producing less heat.

Is the cooling system passive or active?

The product features high-grade aluminum bars that allow for efficient passive natural cooling. Water cooling options are also available for specific environmental needs.

What is the recommended coverage area?

At a mounting height of 1 meter, the light efficiently covers approximately 6.0 square meters.

Does the product carry international safety certifications?

Yes, the product is certified by CE, RoHS, FCC, Energy Star, and SAA, among others, ensuring compliance with global safety and quality standards.

What kind of maintenance is required?

Thanks to the 50,000-hour lifespan and durable aluminum alloy build, very little maintenance is required. Simply ensure the bars are kept clean for optimal light output.
