Customization: Available
IP Rating: IP65
Emitting Color: Customized
Send Inquiry

Product Description

Basic Specifications

Model NO.
ATA-1000WB-F
Input Voltage
AC100-277V
Power
1000W
Shape
Bar
Warranty
3 Years
Housing Material
Aluminum
Life
50000h
LED Chips
Epiled
LED Type
3W/LED 3030 LED
Efficiency
2.7umol/S
Ppf
2727.54umol/S
Spectrum
Red Blue Ratio, Full Spectrum
Cooling Methods
Passive Cooling or Water Cooling
Beam Angle
140°
Certification
CE, RoHS, CCC, GS, Energy Star, FCC, SAA, PSE, EMC, LVD

Adjustable LED Plant Grow Bar Light

Customize LED Spectrum: The optimal full spectrum provides plants at Veg and Flower stages with everything they desire in natural sunlight.
Advanced Full Spectrum Design: Includes universal Blue, Red, IR, UV, and White light. Expensive IR/UV LEDs promote defense mechanisms, while blue and red are essential for growth.
Adjustable Bar System: Distance between LED bars can be adjusted for different lighting intensity and directions.
Thermal Management: Aluminum bar structure enhances heat dissipation and air convection, ensuring a long lifetime.
Efficiency Comparison: The LED grow light can replace traditional 400 watt HPS/MH while consuming only 108 watts (for 600W model reference), offering more effective coverage.

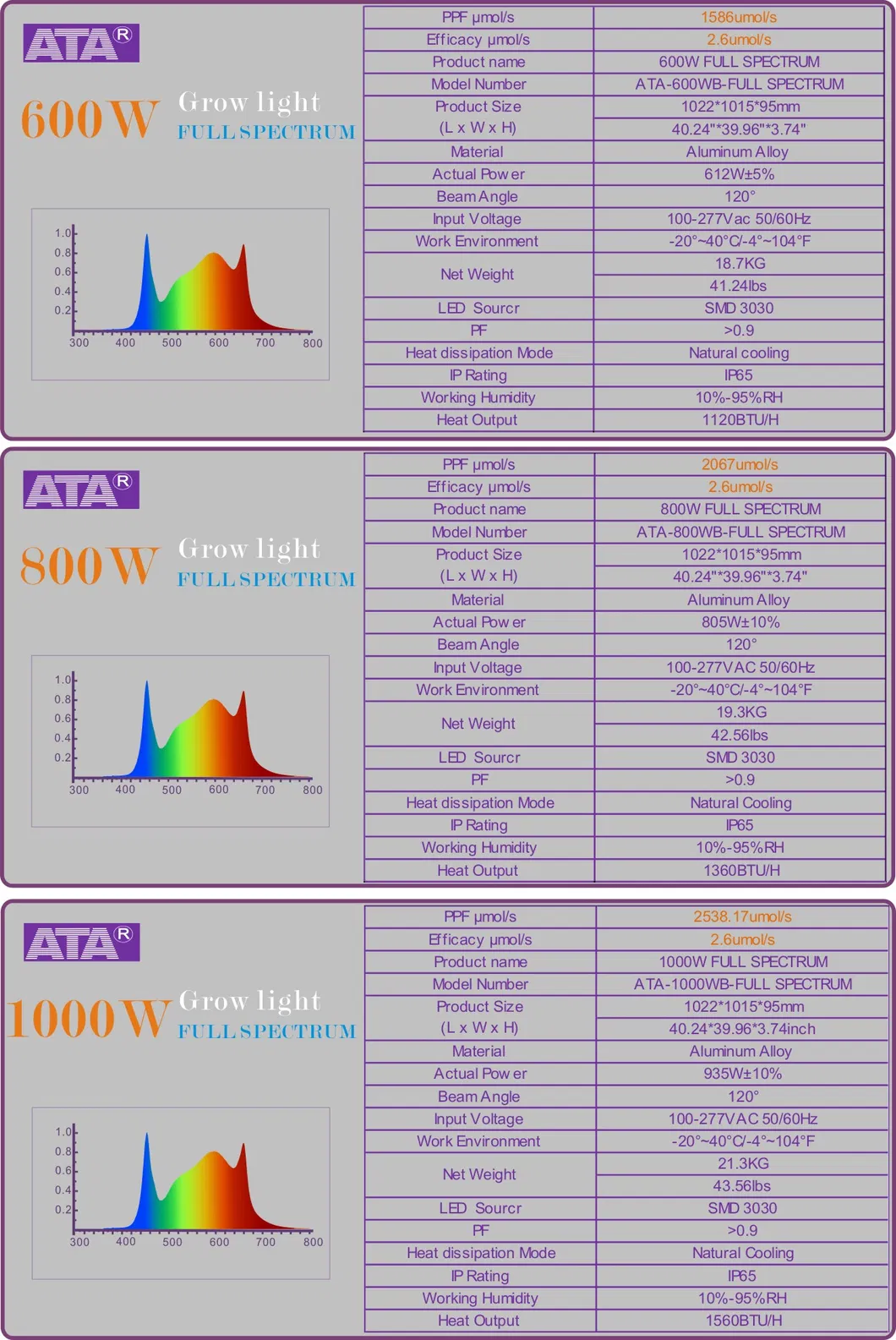

LED Grow Light 1

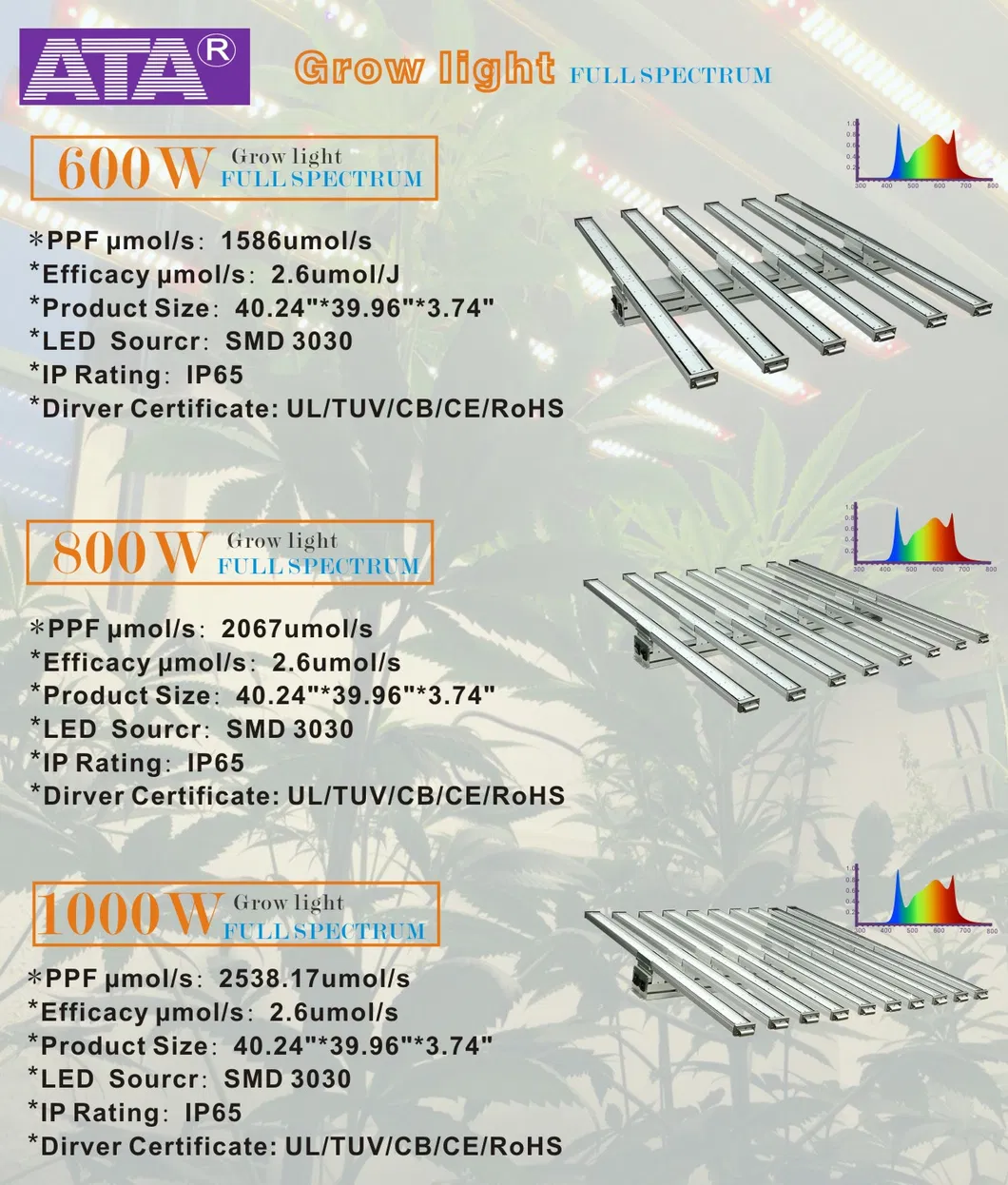

LED Grow Light 2

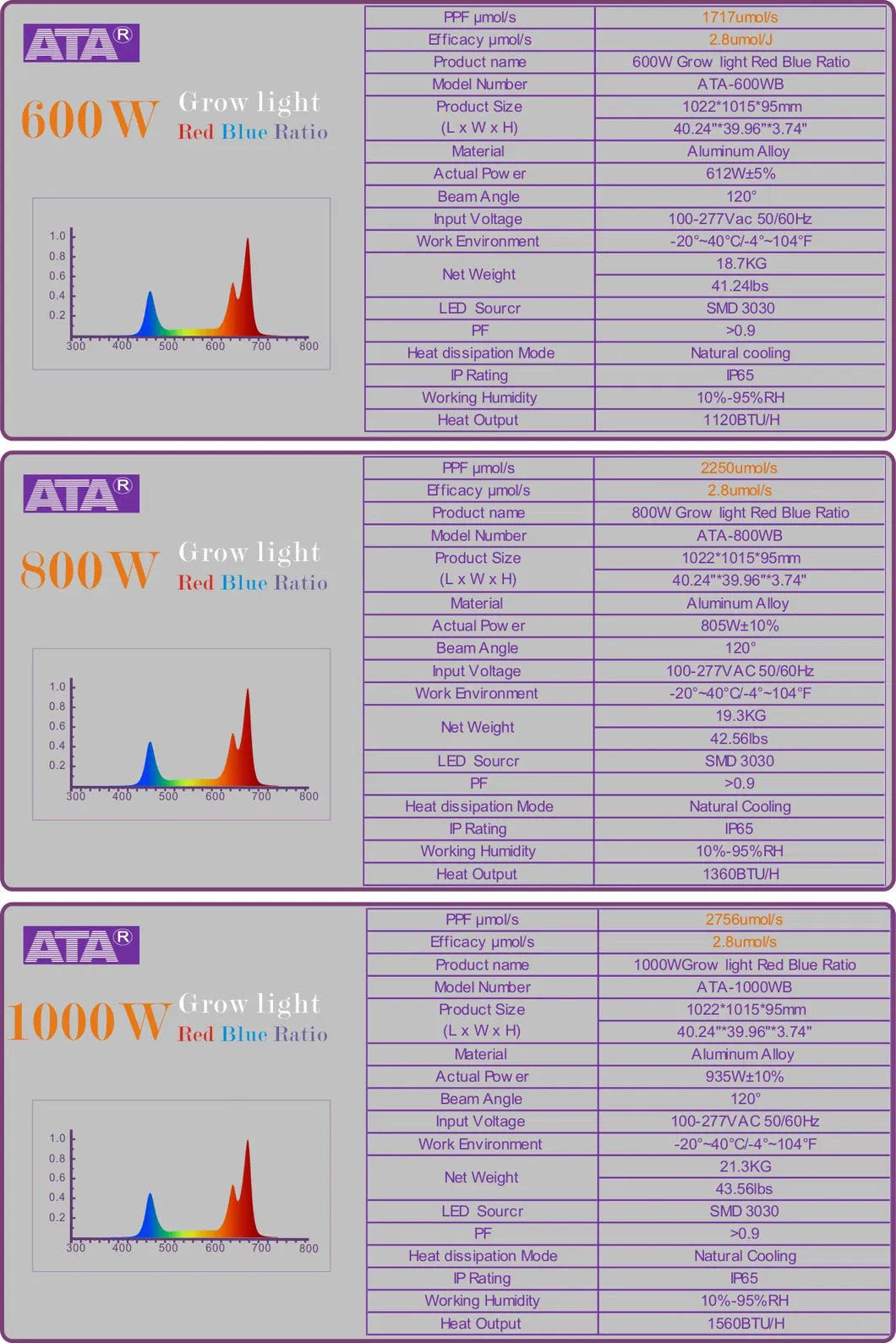

LED Grow Light 3

Technical Data Sheet

Specifications ATA-M600W ATA-M600W-LENS ATA-M600W-FULL SPECTRUM
Size (L x W x H)1022*1015*95mm1022*1015*95mm1022*1015*95mm
Power Consumption545W±5%545W±5%545W±5%
LED Type3W 3030 LED3W 3030 LED1W 5730 LED
Beam Angle120°90°120°
IP RatingIP65IP65IP65
PPF (µmol/s)1586 umol/s1586 umol/s1586 umol/s
Net Weight18.7KG18.7KG18.7KG

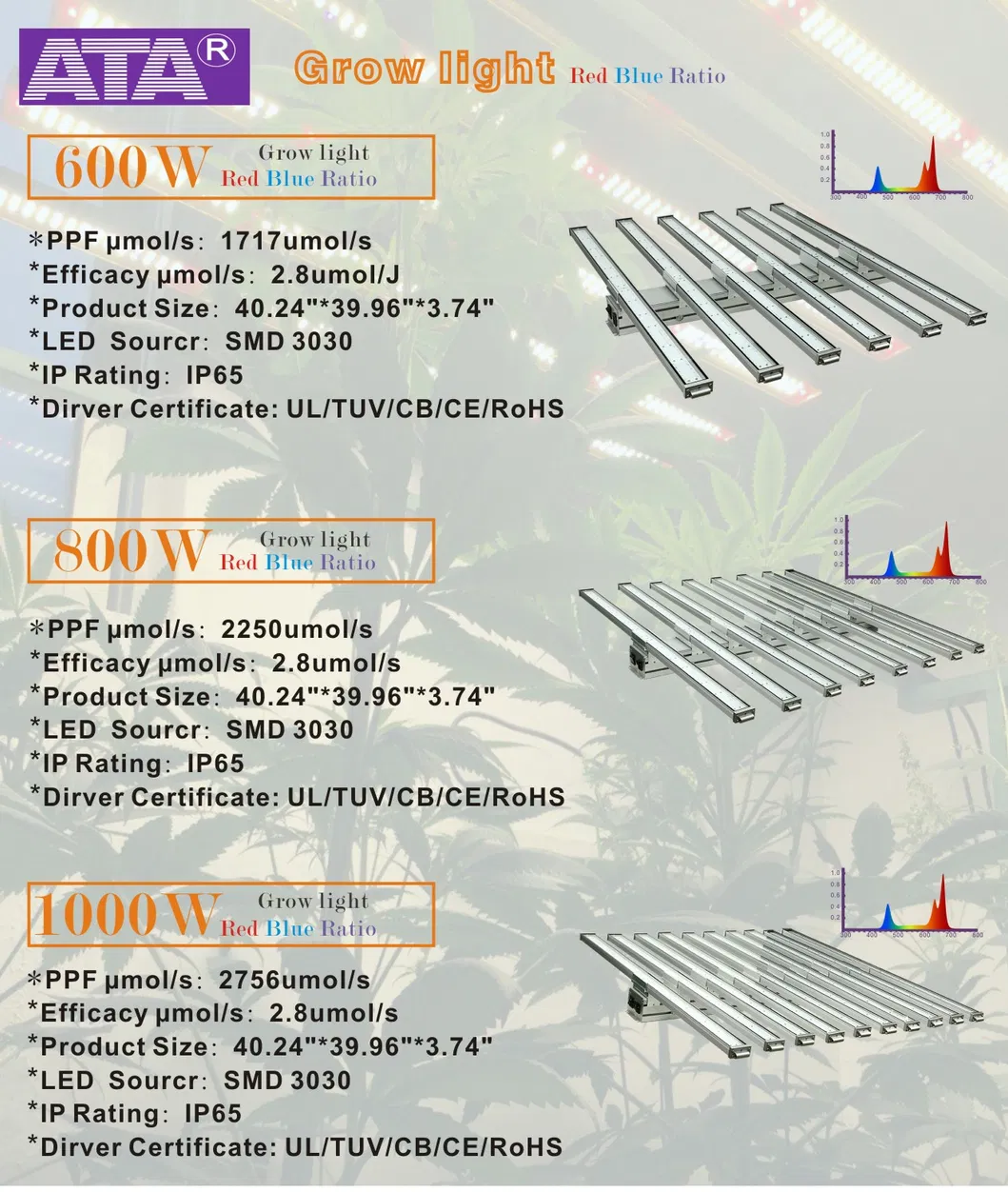

LED Grow Light 4

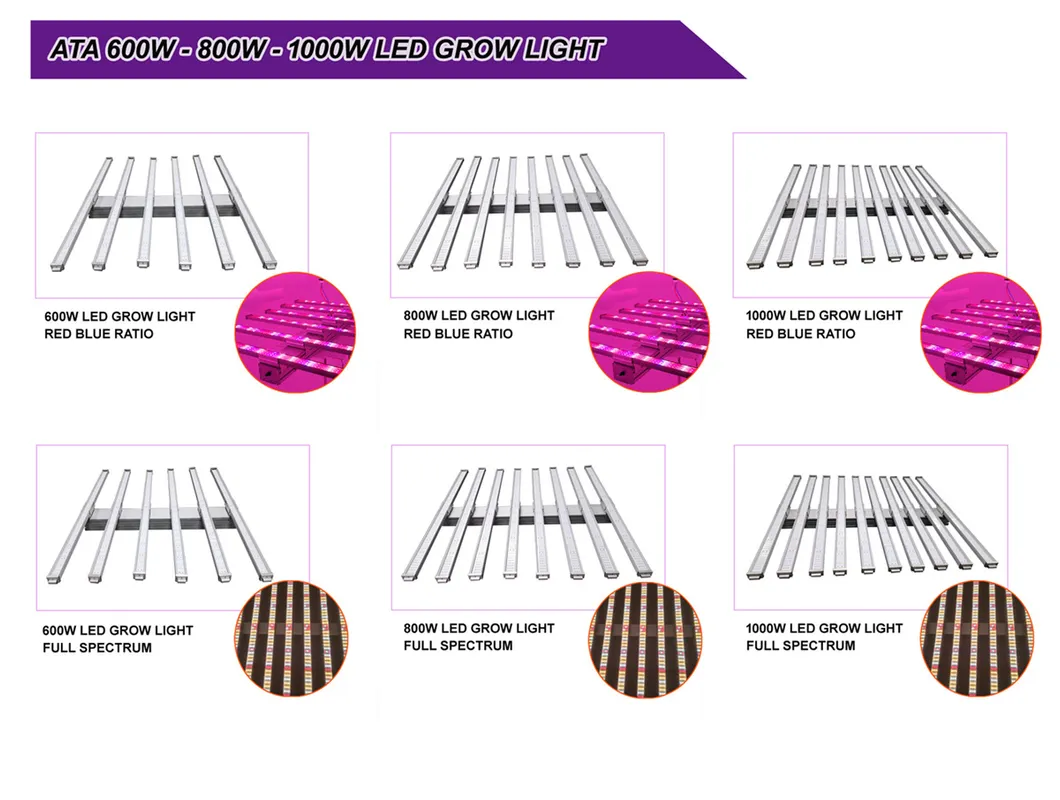

LED Grow Light 5

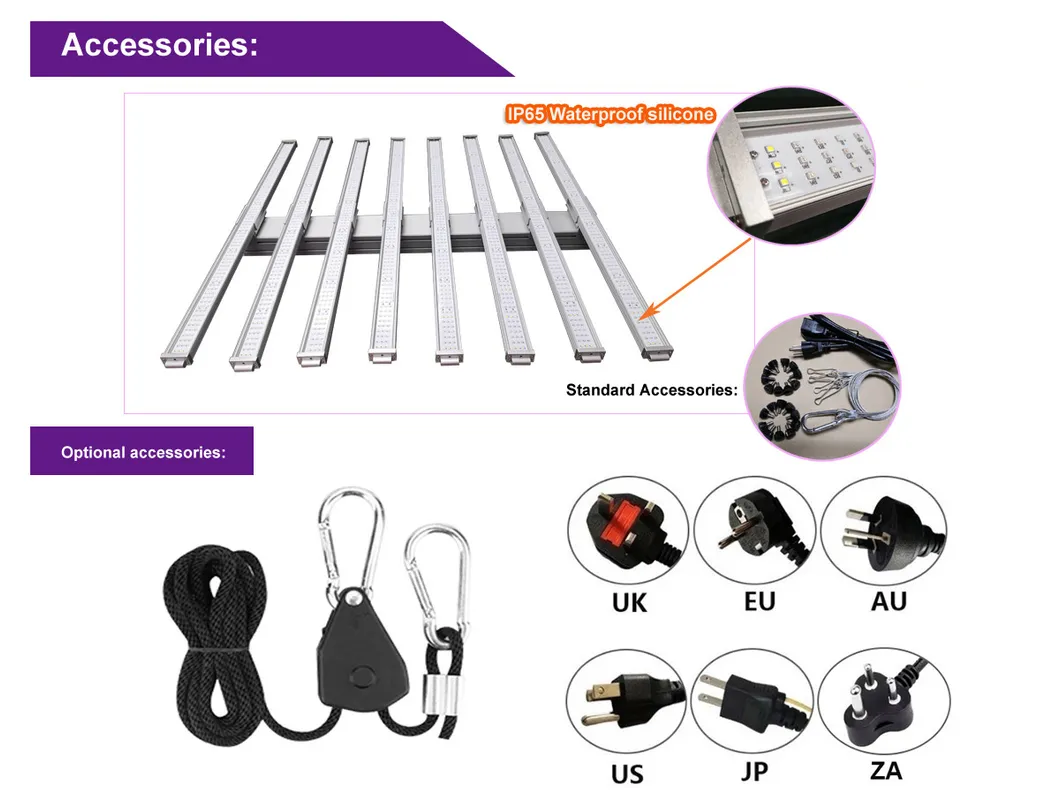

LED Grow Light 6

Performance & Application

PPFD Distribution:

PPFD Chart

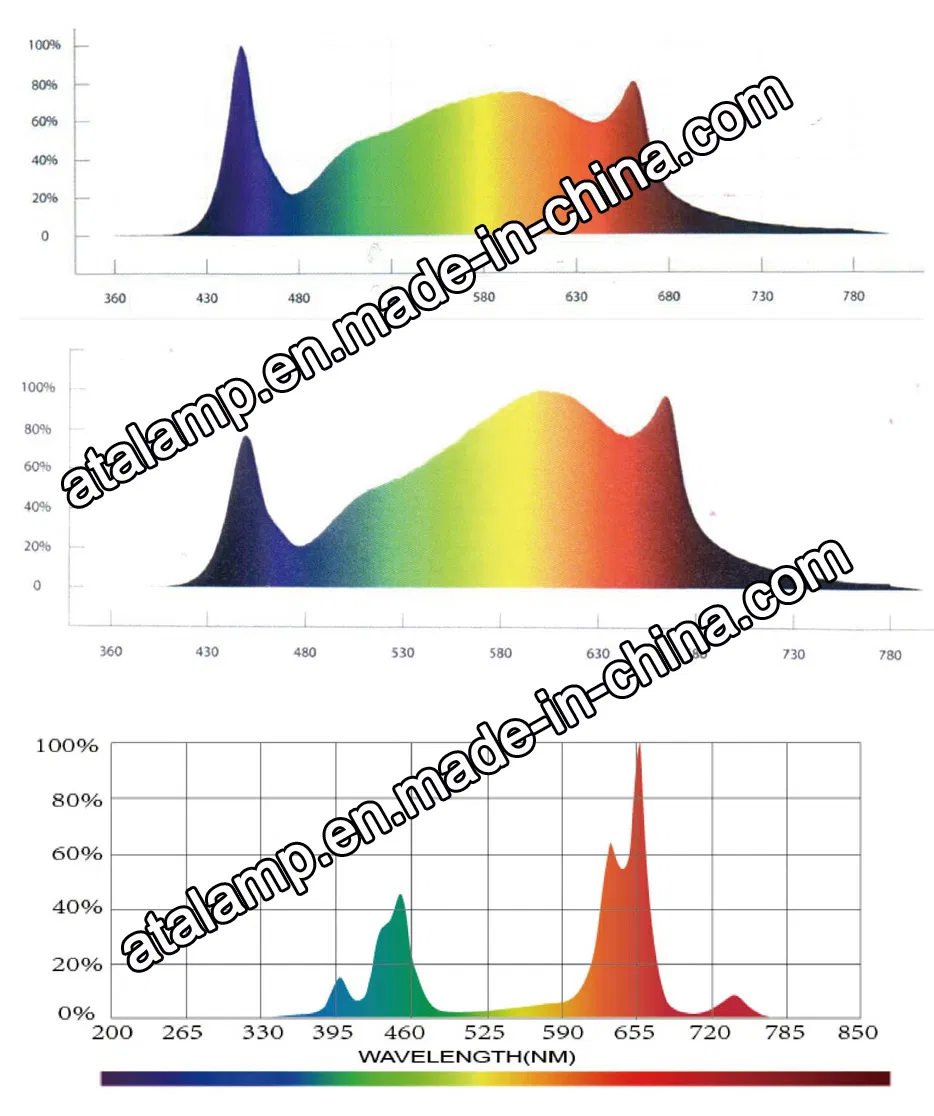

Spectrum Analysis:

Spectrum Chart

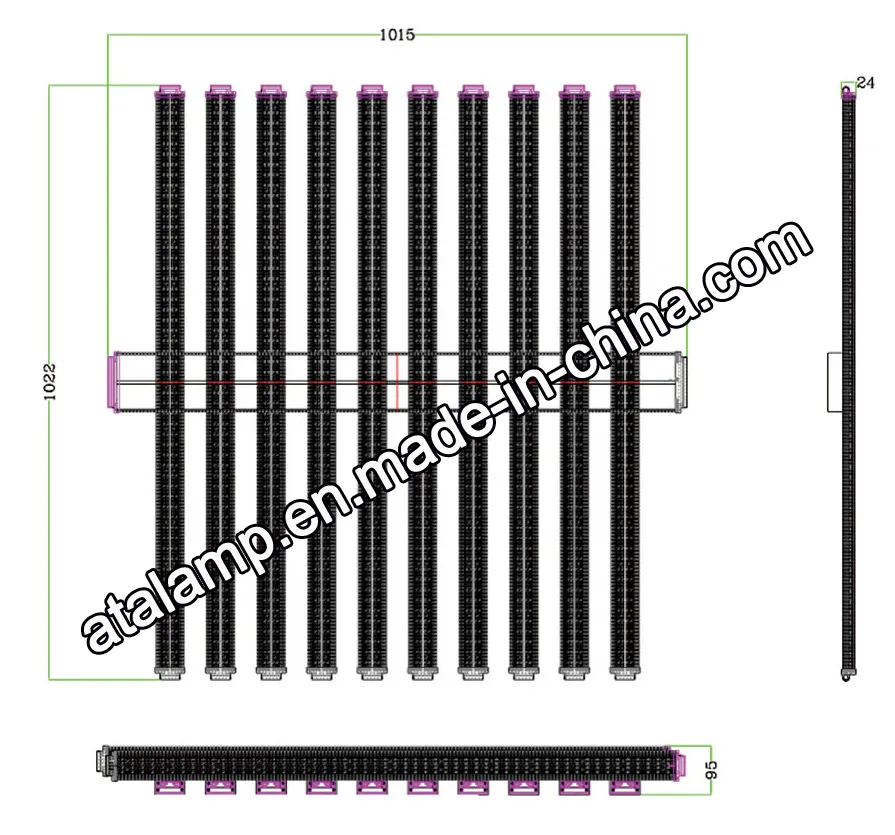

Product Dimensions:

Dimensions

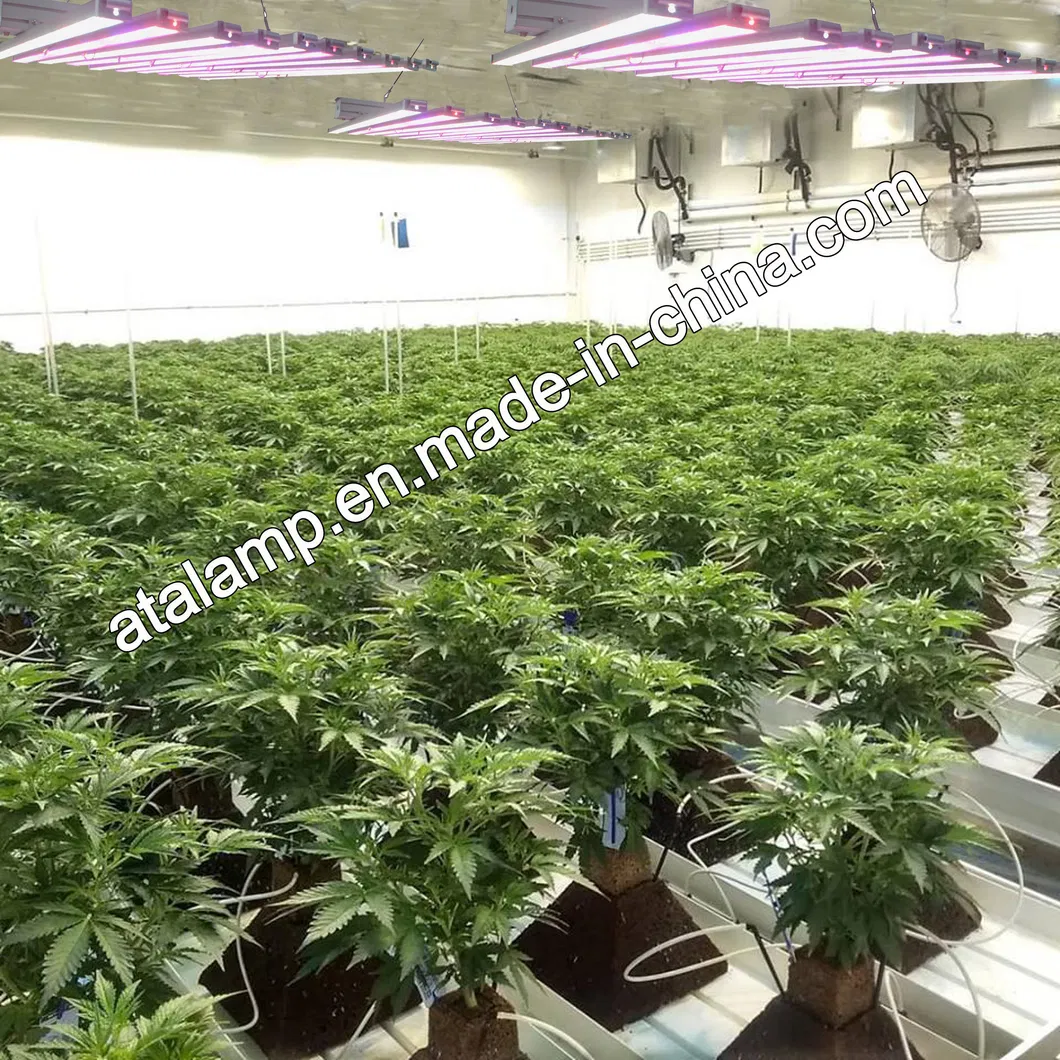

Installation Method:

Installation

★Applications: Suitable for Fruits, Vegetables, Flowers, Medical plants, Indoor Gardens, Greenhouses, Seedlings, and Pipeline cultivation.

Application Scenarios

Quality Control & Usage

Quality Assurance: All lamps undergo a 48-hour aging stability test, 100% lighting test before packing, and drop testing to ensure protection.

Safety Manual: Switch off power before installation. Assembly must be performed by an expert and mounted on a stable, even background.

Frequently Asked Questions

Q1: What is the warranty period for the ATA-1000WB-F?
A1: This model comes with a 3-year warranty covering manufacturing defects.
Q2: Can the spectrum be customized for specific plant types?
A2: Yes, we offer customized LED spectrums to suit different growth stages and specific plant requirements.
Q3: What are the cooling methods used in this grow light?
A3: The light utilizes a high-efficiency thermal management system with options for Passive Cooling or Water Cooling via its aluminum bar structure.
Q4: What is the lighting coverage area?
A4: At a height of 1 meter, the light provides an effective coverage area of approximately 6.0 square meters.
Q5: Is this light suitable for high-humidity environments?
A5: Yes, the product is rated IP65 and can operate in working humidity levels ranging from 10% to 95% RH.
Q6: How does this LED grow light compare to HPS/MH lamps?
A6: Our LED grow lights offer more effective coverage and utilize significantly lower power consumption compared to traditional 400W HPS/MH lamps.
